Deploying Nutanix Enterprise AI (NAI) NVD Reference Application

Version 2.5.0

This version of the NAI deployment is based on the Nutanix Enterprise AI (NAI) v2.5.0 release.

stateDiagram-v2
    direction LR

    state DeployNAI {
        [*] --> DeployNAIAdmin
        DeployNAIAdmin -->  InstallSSLCert
        InstallSSLCert --> DownloadModel
        DownloadModel --> CreateNAI
        CreateNAI --> [*]
    }

    [*] --> PreRequisites
    PreRequisites --> DeployNAI
    DeployNAI --> TestNAI : next section
    TestNAI --> [*]

Prepare for NAI Deployment

Changes in NAI v2.5.0

Istio Ingress gateway is replaced with Envoy Gateway
Knative is removed from NAI
Kserve has been upgraded to 0.15.0

Enable NKP Applications

Enable these NKP Applications from NKP GUI.

Note

In this lab, we will be using the Management Cluster Workspace to deploy our Nutanix Enterprise AI (NAI)

However, in a customer environment, it is recommended to use a separate workload NKP cluster.

Info

The helm charts and the container images for these applications are stored in internal Harbor registry. These images got uploaded to Harbor at the time of install NKE in this section.

In the NKP GUI, Go to Clusters
Click on Management Cluster Workspace
Go to Applications

Search and enable the following applications: follow this order to install dependencies for NAI application

Kube-prometheus-stack: version 71.0.0 or later (pre-installed on NKP cluster)
Cert-manager - v1.17.2

Note

The following application are pre-installed on NKP cluster with Pro license

Cert Manager v1.17.2 or higher

Check if Cert Manager is installed (pre-installed on NKP cluster)

CommandOutput

kubectl get deploy -n cert-manager

$ kubectl get deploy -n cert-manager

NAME                      READY   UP-TO-DATE   AVAILABLE   AGE
cert-manager              1/1     1            1           145m
cert-manager-cainjector   1/1     1            1           145m
cert-manager-webhook      1/1     1            1           145m

If not installed, use the following command to install it

kubectl apply -f https://github.com/cert-manager/cert-manager/releases/download/v1.17.2/cert-manager.yaml

Login to VSC on the jumphost VM, append the following environment variables to the $HOME\airgap-nai\.env file and save it

Template .envSample .env

export ENVIRONMENT=nkp
export NAI_USER=_your_desired_nai_username
export NAI_TEMP_PASS=_your_desired_nai_password # At least 8 characters

export ENVIRONMENT=nkp
export NAI_USER=admin
export NAI_TEMP_PASS=_XXXXXXXXX # At least 8 characters

IN VSC,go to Terminal and run the following commands to source the environment variables
```
source $HOME/airgap-nai/.env
```

Enable Envoy Gateway v1.5.0 using the following command

CommandOutput

helm install eg oci://${REGISTRY_HOST}/gateway-helm \
  --version v1.5.0 \
  -n envoy-gateway-system \
  --create-namespace \
  --wait \
  --set global.images.envoyGateway.image=${REGISTRY_HOST}/nutanix/nai-gateway:v1.5.0 \
  --set global.images.ratelimit.image=${REGISTRY_HOST}/nutanix/nai-ratelimit:3e085e5b

Pulled: harbor.10.x.x.134.nip.io/nkp/gateway-helm:v1.5.0
Digest: sha256:4e49511296e23e3d1400c92cfb38a5c26030501ec7353883e4ccad9fd7cc4c2c
NAME: eg
LAST DEPLOYED: Thu Feb 26 00:58:39 2026
NAMESPACE: envoy-gateway-system
STATUS: deployed
REVISION: 1
TEST SUITE: None
NOTES:
**************************************************************************
*** PLEASE BE PATIENT: Envoy Gateway may take a few minutes to install ***
**************************************************************************

Envoy Gateway is an open source project for managing Envoy Proxy as a standalone or Kubernetes-based application gateway.

Thank you for installing Envoy Gateway! 🎉

Your release is named: eg. 🎉

Your release is in namespace: envoy-gateway-system. 🎉

To learn more about the release, try:

  $ helm status eg -n envoy-gateway-system
  $ helm get all eg -n envoy-gateway-system

To have a quickstart of Envoy Gateway, please refer to https://gateway.envoyproxy.io/latest/tasks/quickstart.

To get more details, please visit https://gateway.envoyproxy.io and https://github.com/envoyproxy/gateway.

Check if Envoy Gateway resources are ready

CommandOutput

kubectl wait --timeout=5m -n envoy-gateway-system deployment/envoy-gateway --for=condition=Available

deployment.apps/envoy-gateway condition met

Create an Envoy Proxy resource for the Envoy Gateway to pull image from local private registry:

cat <<EOF | kubectl apply -f -
apiVersion: gateway.envoyproxy.io/v1alpha1
kind: EnvoyProxy
metadata:
  name: nai-envoyproxy
  namespace: envoy-gateway-system
spec:
  provider:
    type: Kubernetes
    kubernetes:
      envoyDeployment:
        pod:
          imagePullSecrets:
            - name: registry-image-pull-secret
        container:
          image: "${REGISTRY_HOST}/nutanix/nai-envoy:distroless-v1.35.0"
EOF

Run the Kserve CRD installation

helm install kserve-crd \
  oci://${REGISTRY_HOST}/kserve-crd \
  --version v0.15.0 \
  -n kserve \
  --create-namespace

Run the Kserve installation

CommandOutput

helm install kserve \
  oci://${REGISTRY_HOST}/kserve \
  --version v0.15.0 \
  -n kserve \
  --set controller.image.repository=${REGISTRY_HOST}/kserve-controller \
  --set controller.image.tag=v0.15.0 \
  --set kserve.controller.deploymentMode=RawDeployment \
  --set kserve.controller.gateway.disableIngressCreation=true

Pulled: harbor.10.x.x.134.nip.io/nkp/kserve:v0.15.0
Digest: sha256:cafd90ab1d91a54a28c1ff2761d976bdda0bb173675ef392a16ac250b044d15f
I0226 01:59:34.229355  555781 warnings.go:110] "Warning: spec.privateKey.rotationPolicy: In cert-manager >= v1.18.0, the default value changed from `Never` to `Always`."
NAME: kserve
LAST DEPLOYED: Thu Feb 26 01:59:33 2026
NAMESPACE: kserve
STATUS: deployed
REVISION: 1
TEST SUITE: None

Run the OpenTelemetry operator installation

CommandOutput

helm upgrade --install opentelemetry-operator oci://${REGISTRY_HOST}/opentelemetry-operator \
  --version 0.93.0 \
  -n opentelemetry --create-namespace --wait \
  --set manager.image.repository=${REGISTRY_HOST}/nutanix/nai-opentelemetry-operator \
  --set manager.collectorImage.repository=${REGISTRY_HOST}/nutanix/nai-opentelemetry-collector-k8s \
  --set kubeRBACProxy.image.repository=${REGISTRY_HOST}/nutanix/nai-kube-rbac-proxy

LAST DEPLOYED: Thu Feb 26 02:07:06 2026
NAMESPACE: opentelemetry
STATUS: deployed
REVISION: 1
NOTES:
[WARNING] No resource limits or requests were set. Consider setter resource requests and limits via the `resources` field.


opentelemetry-operator has been installed. Check its status by running:
  kubectl --namespace opentelemetry get pods -l "app.kubernetes.io/instance=opentelemetry-operator"

Visit https://github.com/open-telemetry/opentelemetry-operator for instructions on how to create & configure OpenTelemetryCollector and Instrumentation custom resources by using the Operator.

Check helm deployment status

Check the status of the nai helm deployments using the following command:

helm list -n envoy-gateway-system
helm list -n kserve
helm list -n opentelemetry

Deploy NAI

Source the environment variables (if not done so already)
```
source $HOME/airgap-nai/.env
```
In VSCode Explorer pane, browse to $HOME/airgap-nai folder

Run the following command to create a helm values file:

Template - nai-operators-override-values.yaml Sample - nai-operators-override-values.yaml

cat << EOF > nai-operators-override-values.yaml
imagePullSecret:
  credentials:
    registry: ${REGISTRY_HOST}
naiRedis:
  naiRedisImage:
    name: ${REGISTRY_HOST}/nutanix/nai-redis
naiJobs:
  naiJobsImage:
    image: ${REGISTRY_HOST}/nutanix/nai-jobs
nai-clickhouse-operator:
  operator:
    image:
      registry: ${REGISTRY_HOST}/nutanix
      repository: nai-clickhouse-operator
  metrics:
    image:
      registry: ${REGISTRY_HOST}/nutanix
      repository: nai-clickhouse-metrics-exporter
ai-gateway-helm:
  extProc:
    image:
      repository: ${REGISTRY_HOST}/nutanix/nai-ai-gateway-extproc
      tag: c4f26a8
  controller:
    image:
      repository: $REGISTRY_HOST}/nutanix/nai-ai-gateway-controller
      tag: c4f26a8
EOF

imagePullSecret:
  credentials:
    registry: harbor.10.x.x.134.nip.io/nkp
naiRedis:
  naiRedisImage:
    name: harbor.10.x.x.134.nip.io/nkp/nutanix/nai-redis
naiJobs:
  naiJobsImage:
    image: harbor.10.x.x.134.nip.io/nkp/nutanix/nai-jobs
nai-clickhouse-operator:
  operator:
    image:
      registry: harbor.10.x.x.134.nip.io/nkp/nutanix
      repository: nai-clickhouse-operator
  metrics:
    image:
      registry: harbor.10.x.x.134.nip.io/nkp/nutanix
      repository: nai-clickhouse-metrics-exporter
ai-gateway-helm:
  extProc:
    image:
      repository: harbor.10.x.x.134.nip.io/nkp/nutanix/nai-ai-gateway-extproc
      tag: c4f26a8
  controller:
    image:
      repository: harbor.10.x.x.134.nip.io/nkp}/nutanix/nai-ai-gateway-controller
      tag: c4f26a8

Install nai-operators helm chart in the nai-system namespace

Command Sample Command Command output

helm upgrade --install nai-operators oci://${REGISTRY_HOST}/nai-operators --version=2.5.0  \
-n nai-system --create-namespace --wait \
--set imagePullSecret.credentials.username=${REGISTRY_USERNAME} \
--set imagePullSecret.credentials.email=${REGISTRY_USERNAME} \
--set imagePullSecret.credentials.password=${REGISTRY_PASSWORD} \
--insecure-skip-tls-verify -f nai-operators-override-values.yaml

helm upgrade --install nai-operators oci://harbor.10.x.x.134.nip.io/nkp/nai-operators --version=2.5.0 \
-n nai-system --create-namespace --wait \
--set imagePullSecret.credentials.username=admin \
--set imagePullSecret.credentials.email=admin  \
--set imagePullSecret.credentials.password=_XXXXXXX
--insecure-skip-tls-verify -f nai-operators-override-values.yaml

NAME: nai-operators
LAST DEPLOYED: Thu Feb 26 02:42:57 2026
NAMESPACE: nai-system
STATUS: deployed
REVISION: 1
TEST SUITE: None

Run the following command to create a helm values file:

Template - nai-core-override-values.yaml Sample - nai-core-override-values.yaml

cat << EOF > nai-core-override-values.yaml
imagePullSecret:
  credentials:
    registry: ${REGISTRY_HOST}
naiIepOperator:
  iepOperatorImage:
    image: ${REGISTRY_HOST}/nutanix/nai-iep-operator
  modelProcessorImage:
    image: ${REGISTRY_HOST}/nutanix/nai-model-processor
naiInferenceUi:
  naiUiImage:
    image: ${REGISTRY_HOST}/nutanix/nai-inference-ui
naiJobs:
  naiJobsImage:
    image: ${REGISTRY_HOST}/nutanix/nai-jobs
naiApi:
  naiApiImage:
    image: ${REGISTRY_HOST}/nutanix/nai-api
  logger:
    logLevel: debug
  supportedTGIImage: ${REGISTRY_HOST}/nutanix/nai-tgi
  supportedKserveRuntimeImage: ${REGISTRY_HOST}/nutanix/nai-kserve-huggingfaceserver
  supportedVLLMImage: ${REGISTRY_HOST}/nutanix/nai-vllm
  supportedKserveCustomModelServerRuntimeImage: ${REGISTRY_HOST}/nutanix/nai-kserve-custom-model-server
  # Details of super admin (first user in the nai system)
  superAdmin:
    username: ${NAI_USER}
    password: ${NAI_TEMP_PASS} # At least 8 characters
    # email: admin@nutanix.com
    # firstName: admin
        naiIam:
  iamProxy:
    image: ${REGISTRY_HOST}/nutanix/nai-iam-proxy
  iamProxyControlPlane:
    image: ${REGISTRY_HOST}/nutanix/nai-iam-proxy-control-plane
  iamUi:
    image: ${REGISTRY_HOST}/nutanix/nai-iam-ui
  iamUserAuthn:
    image: ${REGISTRY_HOST}/nutanix/nai-iam-user-authn
  iamThemis:
    image: ${REGISTRY_HOST}/nutanix/nai-iam-themis
  iamThemisBootstrap:
    image: ${REGISTRY_HOST}/nutanix/nai-iam-bootstrap
naiLabs:
  labsImage:
    image: ${REGISTRY_HOST}/nutanix/nai-rag-app
nai-clickhouse-keeper:
  clickhouseKeeper:
    image:
      registry: ${REGISTRY_HOST}/nutanix
      repository: nai-clickhouse-keeper
oauth2-proxy:
  image:
    repository: "${REGISTRY_HOST}/nutanix/nai-oauth2-proxy"
nai-clickhouse-server:
  clickhouse:
    image:
      registry: ${REGISTRY_HOST}/nutanix
      repository: nai-clickhouse-server
    initContainers:
      addUdf:
        image:
          registry: ${REGISTRY_HOST}/nutanix
          repository: nai-clickhouse-udf
      waitForKeeper:
        image:
          registry: ${REGISTRY_HOST}/nutanix
          repository: nai-jobs
nai-clickhouse-schemas:
  image:
    registry: ${REGISTRY_HOST}/nutanix
    repository: nai-clickhouse-schemas
naiMonitoring:
  opentelemetry:
    collectorImage: ${REGISTRY_HOST}/nutanix/nai-opentelemetry-collector-contrib:0.136.0
    targetAllocator:
      image:
        repository: ${REGISTRY_HOST}/nutanix/nai-target-allocator
naiDatabase:
  naiDbImage:
    image: ${REGISTRY_HOST}/nutanix/nai-postgres:16.1-alpine
EOF

imagePullSecret:
  credentials:
    registry: harbor.10.x.x.134.nip.io/nkp
naiIepOperator:
  iepOperatorImage:
    image: harbor.10.x.x.134.nip.io/nkp/nutanix/nai-iep-operator
  modelProcessorImage:
    image: harbor.10.x.x.134.nip.io/nkp/nutanix/nai-model-processor
naiInferenceUi:
  naiUiImage:
    image: harbor.10.x.x.134.nip.io/nkp/nutanix/nai-inference-ui
naiJobs:
  naiJobsImage:
    image: harbor.10.x.x.134.nip.io/nkp/nutanix/nai-jobs
naiApi:
  naiApiImage:
    image: harbor.10.x.x.134.nip.io/nkp/nutanix/nai-api
  logger:
    logLevel: debug
  supportedTGIImage: harbor.10.x.x.134.nip.io/nkp/nutanix/nai-tgi
  supportedKserveRuntimeImage: harbor.10.x.x.134.nip.io/nkp/nutanix/nai-kserve-huggingfaceserver
  supportedVLLMImage: harbor.10.x.x.134.nip.io/nkp/nutanix/nai-vllm
  supportedKserveCustomModelServerRuntimeImage: harbor.10.x.x.134.nip.io/nkp/nutanix/nai-kserve-custom-model-server
  # Details of super admin (first user in the nai system)
  superAdmin:
    username: admin
    password: _XXXXXXXXX # At least 8 characters
    # email: admin@nutanix.com
    # firstName: admin
naiIam:
  iamProxy:
    image: harbor.10.x.x.134.nip.io/nkp/nutanix/nai-iam-proxy
  iamProxyControlPlane:
    image: harbor.10.x.x.134.nip.io/nkp/nutanix/nai-iam-proxy-control-plane
  iamUi:
    image: harbor.10.x.x.134.nip.io/nkp/nutanix/nai-iam-ui
  iamUserAuthn:
    image: harbor.10.x.x.134.nip.io/nkp/nutanix/nai-iam-user-authn
  iamThemis:
    image: harbor.10.x.x.134.nip.io/nkp/nutanix/nai-iam-themis
  iamThemisBootstrap:
    image: harbor.10.x.x.134.nip.io/nkp/nutanix/nai-iam-bootstrap
naiLabs:
  labsImage:
    image: harbor.10.x.x.134.nip.io/nkp/nutanix/nai-rag-app
nai-clickhouse-keeper:
  clickhouseKeeper:
    image:
      registry: harbor.10.x.x.134.nip.io/nkp/nutanix
      repository: nai-clickhouse-keeper
oauth2-proxy:
  image:
    repository: "harbor.10.x.x.134.nip.io/nkp/nutanix/nai-oauth2-proxy"
nai-clickhouse-server:
  clickhouse:
    image:
      registry: harbor.10.x.x.134.nip.io/nkp/nutanix
      repository: nai-clickhouse-server
    initContainers:
      addUdf:
        image:
          registry: harbor.10.x.x.134.nip.io/nkp/nutanix
          repository: nai-clickhouse-udf
      waitForKeeper:
        image:
          registry: harbor.10.x.x.134.nip.io/nkp/nutanix
          repository: nai-jobs
nai-clickhouse-schemas:
  image:
    registry: harbor.10.x.x.134.nip.io/nkp/nutanix
    repository: nai-clickhouse-schemas
naiMonitoring:
  opentelemetry:
    collectorImage: harbor.10.x.x.134.nip.io/nkp/nutanix/nai-opentelemetry-collector-contrib:0.136.0
    targetAllocator:
      image:
        repository: harbor.10.x.x.134.nip.io/nkp/nutanix/nai-target-allocator
naiDatabase:
  naiDbImage:
    image: harbor.10.x.x.134.nip.io/nkp/nutanix/nai-postgres:16.1-alpine

Append the following environment variables to the $HOME\airgap-nai\.env file and save it

Template .env Sample .env

export NAI_API_RWX_STORAGECLASS=_desired_rwx_files_storageclass_created_in_previous_section
export NAI_DEFAULT_RWO_STORAGECLASS=_desired_rwo_volume_storageclass
export NKP_WORKSPACE_NAMESPACE=_desired_nkp_workspace # (1)!

Choose workspace of your choice from the NKP Management cluster:

Command Command output

kubectl get workspace -o custom-columns="DISPLAY NAME:.metadata.annotations.kommander\.mesosphere\.io/display-name,WORKSPACE NAMESPACE:.spec.namespaceName"

DISPLAY NAME                            WORKSPACE NAMESPACE
Default Workspace                       kommander-default-workspace
Management Cluster Workspace            kommander
nai-catalog-apps                        nai-catalog-apps

export NAI_API_RWX_STORAGECLASS=nai-nfs-storage
export NAI_DEFAULT_RWO_STORAGECLASS=nutanix-volume
export NKP_WORKSPACE_NAMESPACE=kommander

Install nai-operators helm chart in the nai-system namespace

Command Sample Command Command output

helm upgrade --install nai-core oci://${REGISTRY_HOST}/nai-core --version=2.5.0 \
  -n nai-system --create-namespace --wait \
  --set imagePullSecret.credentials.username=${REGISTRY_USERNAME} \
  --set imagePullSecret.credentials.email=${REGISTRY_USERNAME} \
  --set imagePullSecret.credentials.password=${REGISTRY_PASSWORD} \
  --insecure-skip-tls-verify \
  --set naiApi.storageClassName=${NAI_API_RWX_STORAGECLASS} \
  --set defaultStorageClassName=${NAI_DEFAULT_RWO_STORAGECLASS} \
  --set naiMonitoring.nodeExporter.serviceMonitor.namespaceSelector.matchNames[0]=${NKP_WORKSPACE_NAMESPACE} \
  --set naiMonitoring.dcgmExporter.serviceMonitor.namespaceSelector.matchNames[0]=${NKP_WORKSPACE_NAMESPACE} \
  --set naiMonitoring.opentelemetry.common.resources.requests.cpu=0.1 \
  -f nai-core-override-values.yaml \
  --set nai-clickhouse-keeper.clickhouseKeeper.resources.limits.memory=1Gi \
  --set nai-clickhouse-keeper.clickhouseKeeper.resources.requests.memory=1Gi

helm upgrade --install nai-core oci://harbor.apj-cxrules.win/nkp/nai-core --version=2.5.0 \
  -n nai-system --create-namespace --wait  \
  --set imagePullSecret.credentials.username=admin \
  --set imagePullSecret.credentials.email=admin \
  --set imagePullSecret.credentials.password=_XXXXXXXXXX
  --insecure-skip-tls-verify \
  --set naiApi.storageClassName=nai-nfs-storage \
  --set defaultStorageClassName=nutanix-volume \
  --set naiMonitoring.nodeExporter.serviceMonitor.namespaceSelector.matchNames[0]=kommander
  --set naiMonitoring.dcgmExporter.serviceMonitor.namespaceSelector.matchNames[0]=kommander
  --set naiMonitoring.opentelemetry.common.resources.requests.cpu=0.1 \
  -f nai-core-override-values.yaml \
  --set nai-clickhouse-keeper.clickhouseKeeper.resources.limits.memory=1Gi \
  --set nai-clickhouse-keeper.clickhouseKeeper.resources.requests.memory=1Gi

Release "nai-core" has been upgraded. Happy Helming!
NAME: nai-core
LAST DEPLOYED: Thu Feb 26 03:44:33 2026
NAMESPACE: nai-system
STATUS: deployed
REVISION: 2
TEST SUITE: None

Check if all NAI operator pods are running

CommandCommand output

kubens nai-system
kubectl get pods

Active namespace is "nai-system".
NAME                                                     READY   STATUS      RESTARTS   AGE
chi-nai-clickhouse-server-chcluster1-0-0-0               1/1     Running     0          2m41s
chk-nai-clickhouse-keeper-chkeeper-0-0-0                 1/1     Running     0          2m24s
iam-database-bootstrap-puuxv-2zcgr                       0/1     Completed   0          2m55s
iam-proxy-7cd5489d49-k4hx9                               1/1     Running     0          2m55s
iam-proxy-control-plane-6cc94cbf9c-dzvvt                 1/1     Running     0          2m55s
iam-themis-857f4db466-j4zcb                              1/1     Running     0          2m55s
iam-themis-bootstrap-labqc-pvlc9                         0/1     Completed   0          2m55s
iam-ui-587c6b44bb-sbbvr                                  1/1     Running     0          2m55s
iam-user-authn-64776599c-7jl79                           1/1     Running     0          2m55s
nai-api-79d496bb9b-llknr                                 1/1     Running     0          2m55s
nai-api-db-migrate-diuy5-sxwmk                           0/1     Completed   0          2m55s
nai-clickhouse-schema-job-1772077473-ztd7b               0/1     Completed   0          2m55s
nai-db-0                                                 1/1     Running     0          2m55s
nai-iep-model-controller-664f759dcf-62cvb                1/1     Running     0          2m55s
nai-labs-85c86d45f8-vs2mt                                1/1     Running     0          2m55s
nai-oauth2-proxy-64cb4fcdf5-fksgw                        1/1     Running     0          2m55s
nai-oidc-client-registration-rgmqv-c9zsx                 0/1     Completed   0          2m55s
nai-operators-nai-clickhouse-operator-67bb54cf48-47xdf   2/2     Running     0          64m
nai-otel-collector-collector-bfrkn                       1/1     Running     0          2m53s
nai-otel-collector-collector-ctr9h                       1/1     Running     0          2m53s
nai-otel-collector-collector-dn5kc                       1/1     Running     0          2m53s
nai-otel-collector-collector-f5pxd                       1/1     Running     0          2m53s
nai-otel-collector-collector-gf7t9                       1/1     Running     0          2m53s
nai-otel-collector-collector-lk7fg                       1/1     Running     0          2m53s
nai-otel-collector-collector-s7r4z                       1/1     Running     0          2m53s
nai-otel-collector-targetallocator-6c76477c9c-m4zhq      1/1     Running     0          2m53s
nai-ui-89c96b5ff-s5scb                                   1/1     Running     0          2m55s
redis-standalone-8568f5c645-t2sqm                        2/2     Running     0          64m

Install SSL Certificate and Gateway Elements

In this section we will install SSL Certificate to access the NAI UI. This is required as the endpoint will only work with a ssl endpoint with a valid certificate.

NAI UI is accessible using the Ingress Gateway.

The following steps show how cert-manager can be used to generate a self signed certificate using the default selfsigned-issuer present in the cluster.

If you are using Public Certificate Authority (CA) for NAI SSL Certificate

If an organization generates certificates using a different mechanism then obtain the certificate + key and create a kubernetes secret manually using the following command:

kubectl -n istio-system create secret tls nai-cert --cert=path/to/nai.crt --key=path/to/nai.key

Skip the steps in this section to create a self-signed certificate resource.

Get the NAI UI ingress gateway host using the following command:

NAI_UI_ENDPOINT=$(kubectl get svc -n envoy-gateway-system -l "gateway.envoyproxy.io/owning-gateway-name=nai-ingress-gateway,gateway.envoyproxy.io/owning-gateway-namespace=nai-system" -o jsonpath='{.items[0].status.loadBalancer.ingress[0].ip}' | grep -v '^$' || kubectl get svc -n envoy-gateway-system -l "gateway.envoyproxy.io/owning-gateway-name=nai-ingress-gateway,gateway.envoyproxy.io/owning-gateway-namespace=nai-system" -o jsonpath='{.items[0].status.loadBalancer.ingress[0].hostname}')

Get the value of NAI_UI_ENDPOINT environment variable
CommandCommand output
echo $NAI_UI_ENDPOINT
10.x.x.216
We will use the command output e.g: 10.x.x.216 as the IP address for NAI as reserved in this section
Construct the FQDN of NAI UI using nip.io and we will use this FQDN as the certificate's Common Name (CN).
Template URLSample URL
nai.${NAI_UI_ENDPOINT}.nip.io
nai.10.x.x.216.nip.io

Create the ingress resource certificate using the following command:

cat << EOF | k apply -f -
apiVersion: cert-manager.io/v1
kind: Certificate
metadata:
  name: nai-cert
  namespace: nai-system
spec:
  issuerRef:
    name: selfsigned-issuer
    kind: ClusterIssuer
  secretName: nai-cert
  commonName: nai.${NAI_UI_ENDPOINT}.nip.io
  dnsNames:
  - nai.${NAI_UI_ENDPOINT}.nip.io
  ipAddresses:
  - ${NAI_UI_ENDPOINT}
EOF

Patch the Envoy gateway with the nai-cert certificate details

kubectl patch gateway nai-ingress-gateway -n nai-system --type='json' -p='[{"op": "replace", "path": "/spec/listeners/1/tls/certificateRefs/0/name", "value": "nai-cert"}]'

Create EnvoyProxy

k apply -f -<<EOF
apiVersion: gateway.envoyproxy.io/v1alpha1
kind: EnvoyProxy
metadata:
  name: envoy-service-config
  namespace: nai-system
spec:
  provider:
    type: Kubernetes
    kubernetes:
      envoyService:
        type: LoadBalancer
EOF

Patch the nai-ingress-gateway resource with the new EnvoyProxy details

kubectl patch gateway nai-ingress-gateway -n nai-system --type=merge \
-p '{
    "spec": {
        "infrastructure": {
            "parametersRef": {
                "group": "gateway.envoyproxy.io",
                "kind": "EnvoyProxy",
                "name": "envoy-service-config"
            }
        }
    }
}'

Accessing the UI

In a browser, open the following URL to connect to the NAI UI
```
https://nai.10.x.x.216.nip.io
```
Use the ${NAI_USER} and ${NAI_TEMP_PASS} values set in ${ENVIRONMENT}-values.yaml files during helm installation of NAI v.2.4.0
Change the password for the admin user
Login using admin user and password.

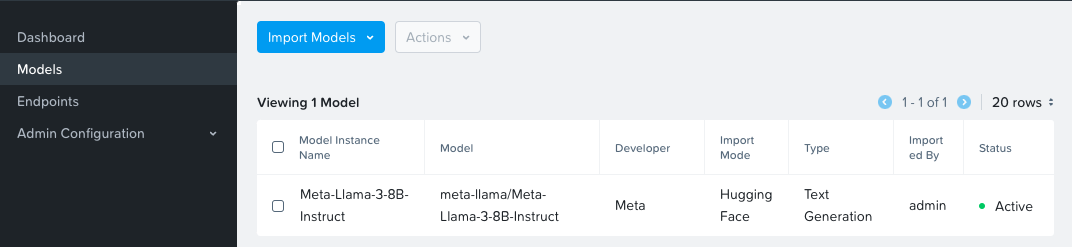

Download Model

We will download and user llama3 8B model which we sized for in the previous section.

In the NAI GUI, go to Models
Click on Import Model from Hugging Face
Choose the meta-llama/Meta-Llama-3.1-8B-Instruct model
Input your Hugging Face token that was created in the previous section and click Import
Provide the Model Instance Name as Meta-Llama-3.1-8B-Instruct and click Import

Go to VSC Terminal to monitor the download

CommandCommand output

Get jobs in nai-admin namespace

kubens nai-admin

kubectl get jobs

Validate creation of pods and PVC

kubectl get po,pvc

Verify download of model using pod logs

kubectl logs -f _pod_associated_with_job

Get jobs in nai-admin namespace

kubens nai-admin

✔ Active namespace is "nai-admin"

kubectl get jobs

NAME                                       COMPLETIONS   DURATION   AGE
nai-c0d6ca61-1629-43d2-b57a-9f-model-job   0/1           4m56s      4m56

Validate creation of pods and PVC

kubectl get po,pvc

NAME                                             READY   STATUS    RESTARTS   AGE
nai-c0d6ca61-1629-43d2-b57a-9f-model-job-9nmff   1/1     Running   0          4m49s

NAME                                       STATUS   VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS      VOLUMEATTRIBUTESCLASS   AGE
nai-c0d6ca61-1629-43d2-b57a-9f-pvc-claim   Bound    pvc-a63d27a4-2541-4293-b680-514b8b890fe0   28Gi       RWX            nai-nfs-storage   <unset>                 2d

Verify download of model using pod logs

kubectl logs -f nai-c0d6ca61-1629-43d2-b57a-9f-model-job-9nmff

/venv/lib/python3.9/site-packages/huggingface_hub/file_download.py:983: UserWarning: Not enough free disk space to download the file. The expected file size is: 0.05 MB. The target location /data/model-files only has 0.00 MB free disk space.
warnings.warn(
tokenizer_config.json: 100%|██████████| 51.0k/51.0k [00:00<00:00, 3.26MB/s]
tokenizer.json: 100%|██████████| 9.09M/9.09M [00:00<00:00, 35.0MB/s]<00:30, 150MB/s]
model-00004-of-00004.safetensors: 100%|██████████| 1.17G/1.17G [00:12<00:00, 94.1MB/s]
model-00001-of-00004.safetensors: 100%|██████████| 4.98G/4.98G [04:23<00:00, 18.9MB/s]
model-00003-of-00004.safetensors: 100%|██████████| 4.92G/4.92G [04:33<00:00, 18.0MB/s]
model-00002-of-00004.safetensors: 100%|██████████| 5.00G/5.00G [04:47<00:00, 17.4MB/s]
Fetching 16 files: 100%|██████████| 16/16 [05:42<00:00, 21.43s/it]:33<00:52, 9.33MB/s]
## Successfully downloaded model_files|██████████| 5.00G/5.00G [04:47<00:00, 110MB/s]

Deleting directory : /data/hf_cache

Optional - verify the events in the namespace for the pvc creation

CommandCommand output

k get events | awk '{print $1, $3}'

$ k get events | awk '{print $1, $3}'

3m43s Scheduled
3m43s SuccessfulAttachVolume
3m36s Pulling
3m29s Pulled
3m29s Created
3m29s Started
3m43s SuccessfulCreate
90s   Completed
3m53s Provisioning
3m53s ExternalProvisioning
3m45s ProvisioningSucceeded
3m53s PvcCreateSuccessful
3m48s PvcNotBound
3m43s ModelProcessorJobActive
90s   ModelProcessorJobComplete

The model is downloaded to the Nutanix Files pvc volume.

After a successful model import, you will see it in Active status in the NAI UI under Models menu

Create and Test Inference Endpoint

In this section we will create an inference endpoint using the downloaded model.

Navigate to Inference Endpoints menu and click on Create Endpoint button
Fill the following details:
- Endpoint Name: llama-8b
- Model Instance Name: Meta-LLaMA-8B-Instruct
- Use GPUs for running the models : Checked
- No of GPUs (per instance):
- GPU Card: NVIDIA-L40S (or other available GPU)
- No of Instances: 1
- API Keys: Create a new API key or use an existing one
Click on Create

Monitor the nai-admin namespace to check if the services are coming up

CommandCommand output

kubens nai-admin
kubectl get po,deploy

kubens nai-admin
get po,deploy
NAME                                                     READY   STATUS        RESTARTS   AGE
pod/llama8b-predictor-00001-deployment-9ffd786db-6wkzt   2/2     Running       0          71m

NAME                                                 READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/llama8b-predictor-00001-deployment   1/1     1            0           3d17h

Check the events in the nai-admin namespace for resource usage to make sure all

CommandCommand output

kubectl get events -n nai-admin --sort-by='.lastTimestamp' | awk '{print $1, $3, $5}'

$ kubectl get events -n nai-admin --sort-by='.lastTimestamp' | awk '{print $1, $3, $5}'

110s FinalizerUpdate Updated
110s FinalizerUpdate Updated
110s RevisionReady Revision
110s ConfigurationReady Configuration
110s LatestReadyUpdate LatestReadyRevisionName
110s Created Created
110s Created Created
110s Created Created
110s InferenceServiceReady InferenceService
110s Created Created

Once the services are running, check the status of the inference service

CommandCommand output

kubectl get isvc

kubectl get isvc

NAME      URL                                          READY   PREV   LATEST   PREVROLLEDOUTREVISION   LATESTREADYREVISION       AGE
llama8b   http://llama8b.nai-admin.svc.cluster.local   True           100                              llama8b-predictor-00001   3d17h

Troubleshooting Endpoint ISVC

TGI Imange and Self-signed Certificates

Only follow this procedure if this isvc is not starting up.

KNative Serving Image Tag Checking

From testing, we have identified that KServe module is making sure that there are no container image tag discrepencies, by pulling image using SHA digest. This is done to avoid pulling images that are updated without updating the tag.

We have avoided this behavior by patching the config-deployment config map in the knative-serving namespace to skip image tag checking. Check this Prepare for NAI Deployment sectionfor more details.

kubectl patch configmap  config-deployment -n knative-serving --type merge -p '{"data":{"registries-skipping-tag-resolving":"${REGISTRY_HOST}"}'

If this procedure was not followed, then the isvc will not start up.

If the isvc is not coming up, then explore the events in nai-admin namespace.

CommandCommand output

kubens nai-admin
kubectl get isvc
kubectl get events  --sort-by='.lastTimestamp'

$ kubectl get isvc

NAME      URL                                          READY   PREV   LATEST   PREVROLLEDOUTREVISION   LATESTREADYREVISION       AGE
llama8b   http://llama8b.nai-admin.svc.cluster.local   False

$ kubectl get events --sort-by='.lastTimestamp'

Warning   InternalError         revision/llama8b-predictor-00001   Unable to fetch image "harbor.10.x.x.111.nip.io/nkp/nutanix/nai-tgi:2.3.1-825f39d": failed to resolve image to digest:
Get "https://harbor.10.x.x.111.nip.io/v2/": tls: failed to verify certificate: x509: certificate signed by unknown authority

The temporary workaround is to use the TGI images SHA signature from the container registry.

This site will be updated with resolutions for the above issues in the future.

Note the above TGI image SHA digest from the container registry.

CommandCommand output

docker pull ${REGISTRY_HOST}/nutanix/nai-tgi:${NAI_TGI_RUNTIME_VERSION}

docker pull harbor.10.x.x.111.nip.io/nkp/nutanix/nai-tgi:2.3.1-825f39d

2.3.1-825f39d: Pulling from nkp/nutanix/nai-tgi
Digest: sha256:2df9fab2cf86ab54c2e42959f23e6cfc5f2822a014d7105369aa6ddd0de33006
Status: Image is up to date for harbor.10.x.x.111.nip.io/nkp/nutanix/nai-tgi:2.3.1-825f39d
harbor.10.x.x.111.nip.io/nkp/nutanix/nai-tgi:2.3.1-825f39d

The SHA digest will look like the following:
TGI image SHA digest will be different for different environments
```
sha256:2df9fab2cf86ab54c2e42959f23e6cfc5f2822a014d7105369aa6ddd0de33006
```

Create a copy of the isvc manifest

kubectl get isvc llama8b -n nai-admin -o yaml > llama8b.yaml

Edit the isvc
```
kubectl edit isvc llama8b -n nai-admin
```

Search and replace the image tag with the SHA digest from the TGI image.

<snip>

env:
- name: STORAGE_URI
  value: pvc://nai-c34d8d58-d6f8-4cb4-94e4-28-pvc-claim/model-files
  image: harbor.10.x.x.111.nip.io/nkp/nutanix/nai-tgi:2.3.1-825f39d

<snip>

7. After replacing the image's SHA digest, the image value should look as follows:

<snip>

env:
- name: STORAGE_URI
  value: pvc://nai-c34d8d58-d6f8-4cb4-94e4-28-pvc-claim/model-files
  image: harbor.10.x.x.111.nip.io/nkp/nutanix/nai-tgi@sha256:2df9fab2cf86ab54c2e42959f23e6cfc5f2822a014d7105369aa6ddd0de33006

<snip>

Save the isvc configuration by writing the changes to the file and exiting the vi editor using :wq! key combination.

Verify that the isvc is running

CommandCommand output

kubens nai-admin
kubectl get isvc

$ kubectl get isvc

NAME      URL                                          READY   PREV   LATEST   PREVROLLEDOUTREVISION   LATESTREADYREVISION       AGE
llama8b   http://llama8b.nai-admin.svc.cluster.local   True           100                              llama8b-predictor-00001   3d17h

This should resolve the issue the issue with the TGI image.

Report Other Issues

If you are facing any other issues, please report them here in the NAI LLM GitHub Repo Issues page.
