Pre-requisites for Deploying NAI

In this part of the lab we will prepare pre-requisites for LLM application on GPU nodes.

The following is the flow of the applications lab:

stateDiagram-v2
    direction LR

    state PreRequisites {
        [*] --> CreateFilesShare
        CreateFilesShare --> PrepareHuggingFace
        PrepareHuggingFace --> [*]
    }
    state CreateOfflineBundle {
        [*] --> PrepareNAIHelmCharts
        PrepareNAIHelmCharts --> PrepareNAIContainerImages
        PrepareNAIContainerImages --> [*]
    }

    [*] --> PreRequisites
    PreRequisites --> CreateOfflineBundle
    CreateOfflineBundle --> DeployNAI : next section
    DeployNAI --> TestNAI
    TestNAI --> [*]

Prepare the following pre-requisites needed to deploy NAI on target kubernetes cluster.

Create Nutanix Files Storage Class

We will create Nutanix Files storage class which will be used to create a pvc that will store the LLama-3-8B model files.

  1. Run the following command to check K8S status of the nkpdarksite cluster

    kubectx ${NKP_CLUSTER_NAME}-admin@${NKP_CLUSTER_NAME}
kubectl get nodes

  2. Add (append) the following environment variable to $HOME/airgap-nkp/.env file

    export FILES_CREDENTIALS_STRING='_prism_element_ip_addres:9440:admin:_your_password'

    export FILES_CREDENTIALS_STRING='10.x.x.37:9440:admin:password'

  3. Source the .env file to load the latest $FILES_CREDENTIALS_STRING environment variable

    source $HOME/airgap-nkp/.env

  4. Create a secret for Nutanix Files CSI Driver

    kubectl create secret generic nutanix-csi-credentials-files \
-n ntnx-system --from-literal=key=${FILES_CREDENTIALS_STRING} \
--dry-run -o yaml | kubectl apply -f -

  5. In VSC Explorer, click on New File and create a config file with the following name:

    nai-nfs-storage.yaml

    Add the following content and replace the nfsServerName with the name of the Nutanix Files server name .

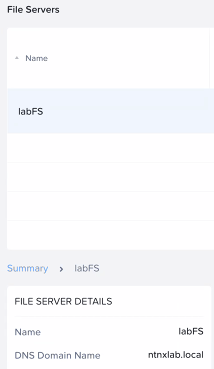

    Finding nfsServerName and nfsServer fqdn

    kind: StorageClass
apiVersion: storage.k8s.io/v1
metadata:
    name: nai-nfs-storage
provisioner: csi.nutanix.com
parameters:
  dynamicProv: ENABLED
  nfsServerName: _your_nutanix_files_server_name
  nfsServer: _your_nutanix_files_server_fqdn
  csi.storage.k8s.io/provisioner-secret-name: nutanix-csi-credentials-files
  csi.storage.k8s.io/provisioner-secret-namespace: ntnx-system
  csi.storage.k8s.io/node-publish-secret-name: nutanix-csi-credentials-files
  csi.storage.k8s.io/node-publish-secret-namespace: ntnx-system
  csi.storage.k8s.io/controller-expand-secret-name: nutanix-csi-credentials-files
  csi.storage.k8s.io/controller-expand-secret-namespace: ntnx-system
  storageType: NutanixFiles
allowVolumeExpansion: true

    kind: StorageClass
apiVersion: storage.k8s.io/v1
metadata:
    name: nai-nfs-storage
provisioner: csi.nutanix.com
parameters:
  dynamicProv: ENABLED
  nfsServerName: labFS
  nfsServer: labFS.ntnxlab.local
  csi.storage.k8s.io/provisioner-secret-name: nutanix-csi-credentials-files
  csi.storage.k8s.io/provisioner-secret-namespace: ntnx-system
  csi.storage.k8s.io/node-publish-secret-name: nutanix-csi-credentials-files
  csi.storage.k8s.io/node-publish-secret-namespace: ntnx-system
  csi.storage.k8s.io/controller-expand-secret-name: nutanix-csi-credentials-files
  csi.storage.k8s.io/controller-expand-secret-namespace: ntnx-system
  storageType: NutanixFiles
allowVolumeExpansion: true

  6. Create the storage class

    kubectl apply -f nai-nfs-storage.yaml

  7. Check storage classes in the cluster for the Nutanix Files storage class

    kubectl get storageclass

    kubectl get storageclass

NAME                       PROVISIONER                     RECLAIMPOLICY   VOLUMEBINDINGMODE      ALLOWVOLUMEEXPANSION   AGE
dkp-object-store           kommander.ceph.rook.io/bucket   Delete          Immediate              false                  28h
nai-nfs-storage            csi.nutanix.com                 Delete          Immediate              true                   24h
nutanix-volume (default)   csi.nutanix.com                 Delete          WaitForFirstConsumer   false                  28h

Request Access to Model on Hugging Face

Follow these steps to request access to the meta-llama/Meta-Llama-3.1-8B-Instruct model:

LLM Recommendation

From testing google/gemma-2-2b-it model is quicker to download and obtain download rights, than meta-llama/Meta-Llama-3.1-8B-Instruct model.

Feel free to use the google/gemma-2-2b-it model if necessary. The procedure to request access to the model is the same.

  1. Sign in to your Hugging Face account:

  2. Navigate to the model page:

  3. Request access:

    • On the model page, you will see a section or button labeled Request Access (this is usually near the top of the page or near the "Files and versions" section).
    • Click Request Access.

  4. Complete the form:

    • You may be prompted to fill out a form or provide additional details about your intended use of the model.
    • Complete the required fields and submit the request.

  5. Wait for approval:

    • After submitting your request, you will receive a notification or email once your access is granted.
    • This process can take some time depending on the approval workflow.

Once access is granted, there will be an email notification.

Note

Email from Hugging Face can take a few minutes or hours before it arrives.

Create a Hugging Face Token with Read Permissions

Follow these steps to create a Hugging Face token with read permissions:

  1. Sign in to your Hugging Face account:

  2. Access your account settings:

    • Click on your profile picture in the top-right corner.
    • From the dropdown, select Settings.

  3. Navigate to the "Access Tokens" section:

    • In the sidebar, click on Access Tokens.
    • You will see a page where you can create and manage tokens.

  4. Create a new token:

    • Click the New token button.
    • Enter a name for your token (i.e., read-only-token).

  5. Set token permissions:

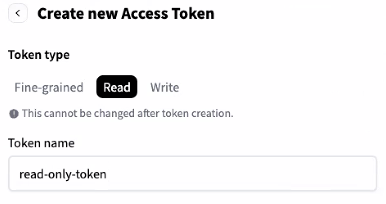

    • Under the permissions dropdown, select Read. For Example: hf-token

  6. Create and copy the token:

    • After selecting the permissions, click Create.
    • Your token will be generated and displayed only once, so make sure to copy it and store it securely.

Use this token for accessing Hugging Face resources with read-only permissions.

Prepare Helm Charts and Generate Bundle

  1. Login to the Jumphost VM
  2. In VSC Explorer, click on New Folder and name it: airgap-nai

  3. In VSC, under the newly created airgap-nai folder, click on New File and create file with the following name:

    .env

  4. Add (append) the following environment variables and save it

    export ISTIO_VERSION=_your_istio_version
export KNATIVE_VERSION=_your_knative_version
export KSERVE_VERSION=_your_kserve_version
export KUBE_PROMETHEUS_STACK_VERSION=_your_kube_prometheus_stack_version
export NAI_CORE_VERSION=_your_nai_core_version
export NAI_API_VERSION=_your_nai_api_version
export NAI_PROMETHEUS_VERSION=_your_nai_prometheus_version
export NAI_POSTGRESQL_VERSION=_your_nai_postgresql_version
export NAI_KSERVE_HF_SERVER_VERSION=_your_nai_kserve_hf_server_version
export NAI_TGI_RUNTIME_VERSION=_your_nai_tgi_runtime_version

    export ISTIO_VERSION=1.20.8
export KNATIVE_VERSION=1.13.1
export KSERVE_VERSION=v0.14.0
export KUBE_PROMETHEUS_STACK_VERSION=61.3.1
export NAI_CORE_VERSION=v2.0.0
export NAI_API_VERSION=v2.0.0
export NAI_PROMETHEUS_VERSION=v2.54.0
export NAI_POSTGRESQL_VERSION=16.1-alpine
export NAI_KSERVE_HF_SERVER_VERSION=v0.14.0
export NAI_TGI_RUNTIME_VERSION=2.3.1-825f39d

  5. Create a new directory to store the custom helm charts

    mkdir custom-charts && cd custom-charts

  6. Fetch the helm charts using the following commands

    helm fetch base --repo https://istio-release.storage.googleapis.com/charts --version=${ISTIO_VERSION}

helm fetch istiod --repo https://istio-release.storage.googleapis.com/charts --version=${ISTIO_VERSION}

helm fetch gateway --repo https://istio-release.storage.googleapis.com/charts --version=${ISTIO_VERSION}

helm fetch nai-knative-serving-crds --repo https://nutanix.github.io/helm-releases --version=${KNATIVE_VERSION}

helm fetch nai-knative-serving --repo https://nutanix.github.io/helm-releases --version=${KNATIVE_VERSION}

helm fetch nai-knative-istio-controller  --repo https://nutanix.github.io/helm-releases --version=${KNATIVE_VERSION}

helm fetch oci://ghcr.io/kserve/charts/kserve-crd --version=${KSERVE_VERSION}

helm fetch oci://ghcr.io/kserve/charts/kserve --version=${KSERVE_VERSION}

helm fetch nai-core --repo https://nutanix.github.io/helm-releases --version=${NAI_CORE_VERSION}

    Pulled: ghcr.io/kserve/charts/kserve-crd:v0.14.0
Digest: sha256:6ae5af970d9a9400e8456ad1dbc86360d03f4b6bb00be4f16c48bc0542283d42

Pulled: ghcr.io/kserve/charts/kserve:v0.14.0
Digest: sha256:25129d39a4aa85f96159db6933729ea9f35e9d0f7f7cac7918c0a8013672eccb

  7. Create a tar ball of the helm charts and compress it

    tar -czvf nai-iep-chartbundle.tar.gz *.tgz

  8. Upload the helm charts to ChartMuseum instance deployed automatically by Kommander. This will make this consistent with other NKP catalog items and will work seamlessly when this is converted to a catalog item.

    nkp push chart-bundle nai-iep-chartbundle.tar.gz

Prepare NAI Container Images

The Jumphost VM will be used as a medium to download the NAI container images and upload them to the internal Harbor container registry.

stateDiagram-v2
    direction LR

    state LoginToNutanixPortal {
        [*] --> CreateDockerIDandAccessToken
        CreateDockerIDandAccessToken --> LoginToDockerCLI
        LoginToDockerCLI --> [*]
    }

    state PrepareNAIDockerImages {
        [*] --> DownloadUploadImagesToHarbor
        DownloadUploadImagesToHarbor --> [*]
    }

    [*] --> LoginToNutanixPortal
    LoginToNutanixPortal --> PrepareNAIDockerImages
    PrepareNAIDockerImages --> [*]

Prepare NAI Docker Download Credentials

All NAI Docker images will be downloaded from the public Docker Hub registry. In order to download the images, you will need to logon to Nutanix Portal - NAI and create a Docker ID and access token.

  1. Login to Nutanix Portal - NAI using your credentials
  2. Click on Generate Access Token option
  3. Copy the generated Docker ID and access token

  4. Login to the Docker CLI on your jumphost VM

    docker login --username ntnxsvcgpt -p _docker_id_and_access_token_

    docker login --username ntnxsvcgpt -p dckr_pat_xxxxxxxxxxxxxxxxxxxxxxxx

Warning

Currently there are issues with the Nutanix Portal to create a Docker ID and access token. This will be fixed soon.

Click on the Manage Access Token option and use the credentials listed there until the Nutanix Portal is fixed.

Upload NAI Docker Images to Harbor

Info

The download and upload of the container images will be done in one nkp command which will use the internal Harbor container registry details.

nkp command will do this in a three-step process.

  1. Download the container images to the jumphost VM
  2. Create a tar ball of the container images and
  3. Upload it to the internal Harbor container registry

  1. Create images yaml file for all the required container images

  2. Change to $HOME/airgap-nai directory if you are not already there

    cd $HOME/airgap-nai

  3. In VSC Explorer, click on New File and create file with the following name:

    nai-prereq-images.yaml

    with the following content:

    docker.io/istio/proxyv2:1.20.8
docker.io/istio/pilot:1.20.8
docker.io/library/busybox:1.28
k8s.gcr.io/cuda-vector-add:v0.1
gcr.io/knative-releases/knative.dev/serving/cmd/activator:v1.13.1
gcr.io/knative-releases/knative.dev/serving/cmd/autoscaler:v1.13.1
gcr.io/knative-releases/knative.dev/serving/cmd/controller:v1.13.1
gcr.io/knative-releases/knative.dev/serving/cmd/webhook:v1.13.1
gcr.io/knative-releases/knative.dev/serving/cmd/queue:v1.13.1
gcr.io/knative-releases/knative.dev/net-istio/cmd/controller:v1.13.1
gcr.io/knative-releases/knative.dev/net-istio/cmd/webhook:v1.13.1
ghcr.io/mesosphere/dkp-container-images/nvcr.io/nvidia/cloud-native/gpu-operator-validator:v24.3.0-d2iq.0
ghcr.io/mesosphere/dkp-container-images/nvcr.io/nvidia/k8s-device-plugin:v0.15.0-ubi8-d2iq.0
harbor.infrastructure.cloudnative.nvdlab.net/nvidia/driver:535.161.08-ubuntu22.04
nvcr.io/nvidia/cloud-native/dcgm:3.3.5-1-ubuntu22.04
nvcr.io/nvidia/cloud-native/k8s-driver-manager:v0.6.8
nvcr.io/nvidia/k8s-device-plugin:v0.15.0-ubi8
nvcr.io/nvidia/k8s/container-toolkit:v1.15.0-ubuntu20.04
nvcr.io/nvidia/k8s/dcgm-exporter:3.3.5-3.4.1-ubuntu22.04
gcr.io/kubebuilder/kube-rbac-proxy:v0.13.1
docker.io/kserve/kserve-controller:v0.13.1
docker.io/kserve/modelmesh-controller:v0.12.0-rc0

  4. In VSC Explorer, click on New File and create file with the following name:

    nai-core-images.yaml

    with the following content:

    docker.io/nutanix/nai-iep-operator:v2.0.0
docker.io/nutanix/nai-model-processor:v2.0.0
docker.io/nutanix/nai-inference-ui:v2.0.0
docker.io/nutanix/nai-api:v2.0.0
docker.io/nutanix/nai-postgres:16.1-alpine
docker.io/nutanix/nai-kserve-controller:v0.13.1
nutanix/nai-kserve-huggingfaceserver:v0.13.1
nutanix/nai-tgi:2.3.1-825f39d
quay.io/karbon/prometheus:v2.41.0
quay.io/prometheus-operator/prometheus-config-reloader:v0.74.0

  5. Create image bundle with the following command

    nkp create image-bundle --images-file nai-prereq-images.yaml --output-file nai-prereq-images.tar --overwrite

nkp create image-bundle --images-file nai-core-images.yaml --output-file nai-core-images.tar --overwrite

  6. Since we will be using the same internal Harbor container registry to upload container images, make sure the following environment variables are set (these were already set during air-gap NKP preparation)

    export REGISTRY_URL=harbor.10.x.x.111.nip.io/nkp
export REGISTRY_USERNAME=admin
export REGISTRY_PASSWORD=xxxxxxx
export REGISTRY_CACERT=$HOME/harbor/certs/ca.crt

  7. Push the images to the internal Harbor container registry

    nkp push bundle --bundle nai-prereq-images.tar --to-registry ${REGISTRY_URL} \
--to-registry-username ${REGISTRY_USERNAME} --to-registry-password ${REGISTRY_PASSWORD} \
--to-registry-ca-cert-file ${REGISTRY_CACERT}

    nkp push bundle --bundle nai-core-images.tar --to-registry ${REGISTRY_URL} \
--to-registry-username ${REGISTRY_USERNAME} --to-registry-password ${REGISTRY_PASSWORD} \
--to-registry-ca-cert-file ${REGISTRY_CACERT}


    ✓ Creating temporary directory
✓ Unarchiving image bundle "nai-prereq-images.tar"
✓ Parsing image bundle config
✓ Starting temporary Docker registry
✓ Pushing bundled images [================================>24/24] (time elapsed 153s)

    ✓ Creating temporary directory
✓ Unarchiving image bundle "nai-core-images.tar"
✓ Parsing image bundle config
✓ Starting temporary Docker registry
✓ Pushing bundled images [================================>10/10] (time elapsed 25s)

Now we are ready to deploy our AI workloads.
