Deploying GPT-in-a-Box NVD Reference Application using GitOps (FluxCD)

stateDiagram-v2
    direction LR

    state TestNAI {
        [*] --> CheckInferencingService
        CheckInferencingService -->  TestChatApp
        TestChatApp --> [*]
    }

    [*] --> PreRequisites
    PreRequisites --> DeployNAI
    DeployNAI --> TestNAI : previous section
    TestNAI --> [*]

Test Querying Inference Service API

  1. Prepare the API key that was created in the previous section

    export API_KEY=_your_endpoint_api_key

    export API_KEY=5840a693-254d-41ef-a2d3-1xxxxxxxxxx

  2. Construct your curl command using the API key obtained above, and run it on the terminal

    curl -k -X 'POST' 'https://nai.10.x.x.216.nip.io/api/v1/chat/completions' \
    -H "Authorization: Bearer $API_KEY" \
    -H 'accept: application/json' \
    -H 'Content-Type: application/json' \
    -d '{
        "model": "llama-8b",
        "messages": [
            {
            "role": "user",
            "content": "What is the capital of France?"
            }
        ],
        "max_tokens": 256,
        "stream": false
    }'

    {
        "id": "9e55abd1-2c91-4dfc-bd04-5db78f65c8b2",
        "object": "chat.completion",
        "created": 1728966493,
        "model": "llama-8b",
        "choices": [
            {
                "index": 0,
                "message": {
                    "role": "assistant",
                    "content": "The capital of France is Paris. It is a historic city on the Seine River in the north-central part of the country. Paris is also the political, cultural, and economic center of France."
                },
                "finish_reason": "stop"
            }
        ],
        "usage": {
            "prompt_tokens": 17,
            "completion_tokens": 41,
            "total_tokens": 58
        },
        "system_fingerprint": ""
    }


We have a successful NAI deployment.

Accessing LLM Frontend UI

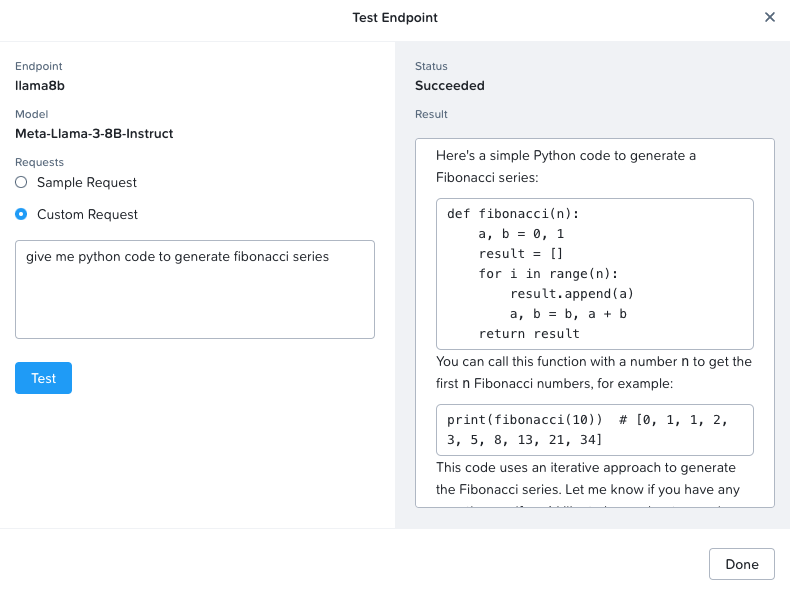

  1. In the NAI GUI, under Endpoints, click on the llama8b

  2. Click on Test

  3. Provide a sample prompt and check the output

Sample Chat Application

We have a sample chat application that uses NAI to provide chatbot capabilities. We will install and use the chat application in this section.

  1. Download and push the chat application container from upstream registry to internal harbor registry

    docker pull johnugeorge/nai-chatapp:0.12
    docker tag johnugeorge/nai-chatapp:0.12 ${REGISTRY_HOST}/nai-chatapp:0.12
    docker push ${REGISTRY_HOST}/nai-chatapp:0.12

  2. Run the following command to deploy the chat application.

    Create the namespace

    kubectl create ns chat
    kubens chat


    Create the application

    kubectl apply -f -<<EOF
    apiVersion: apps/v1
    kind: Deployment
    metadata:
      name: nai-chatapp
      namespace: chat
      labels:
        app: nai-chatapp
    spec:
      replicas: 1
      selector:
        matchLabels:
          app: nai-chatapp
      template:
        metadata:
          labels:
            app: nai-chatapp
        spec:
          containers:
          - name: nai-chatapp
            image: johnugeorge/nai-chatapp:0.12
            ports:
            - containerPort: 8502
    EOF


    Create the service

    kubectl apply -f -<<EOF
    apiVersion: v1
    kind: Service
    metadata:
      name: nai-chatapp
      namespace: chat
    spec:
      selector:
        app: nai-chatapp
      ports:
        - protocol: TCP
          port: 8502
    EOF

  3. Insert chat as the subdomain in the nai.10.x.x.216.nip.io main domain.

    Example: complete URL

    chat.nai.10.x.x.216.nip.io

    kubectl apply -f -<<EOF
    apiVersion: gateway.networking.k8s.io/v1
    kind: HTTPRoute
    metadata:
      name: nai-chatapp-route
      namespace: chat                   # Same namespace as your chat app service
    spec:
      parentRefs:
      - name: nai-ingress-gateway
        namespace: nai-system           # Namespace of the Gateway
      hostnames:
      - "chat.nai.10.x.x.216.nip.io"    # Input Gateway IP address
      rules:
      - matches:
        - path:
            type: PathPrefix
            value: /
        backendRefs:
        - name: nai-chatapp
          kind: Service
          port: 8502
    EOF

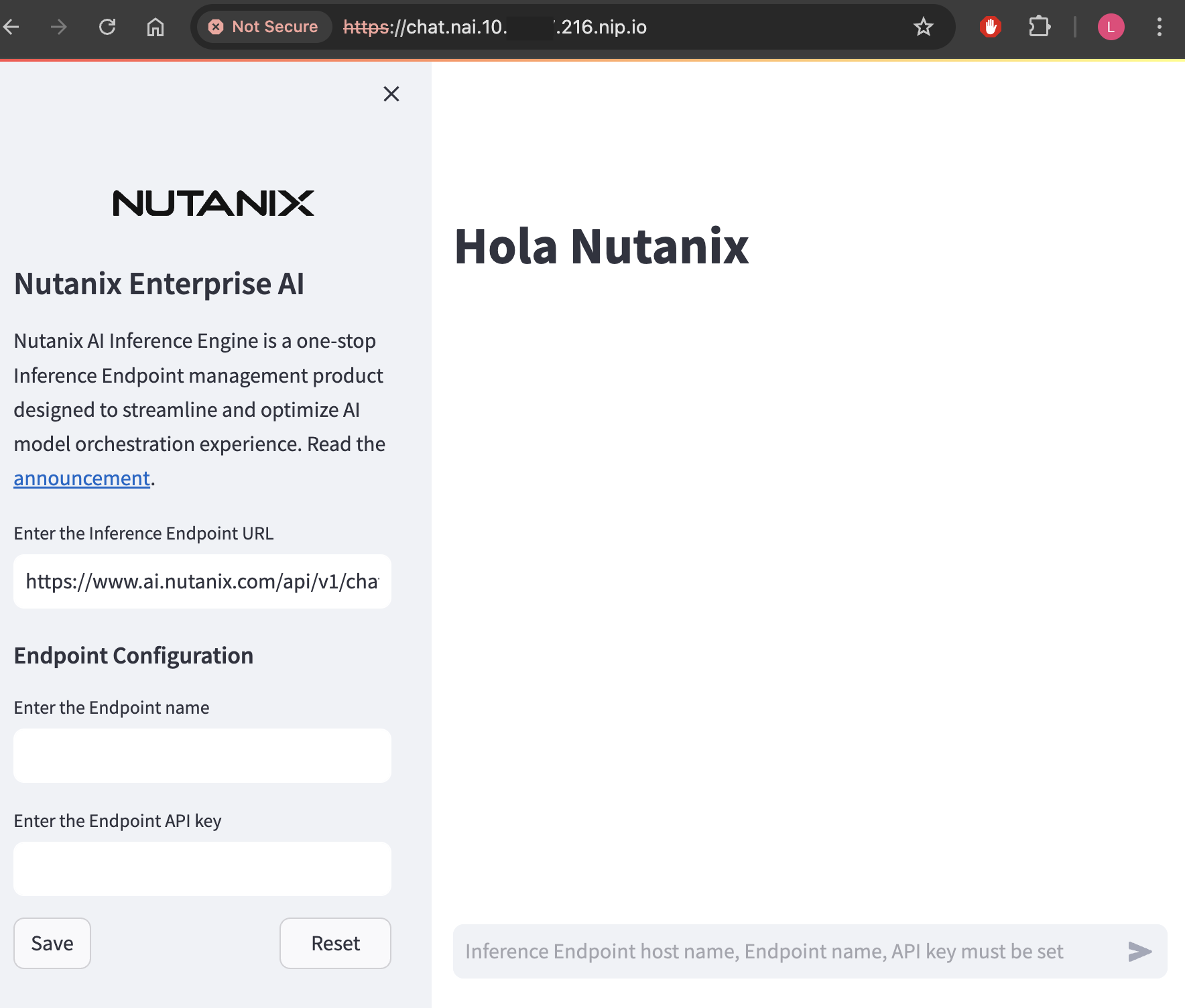

  4. We should be able to see the chat application running on the NAI cluster.

  5. Input the following:

    • Endpoint URL - e.g. https://nai.10.x.x.216.nip.io/api/v1/chat/completions (can be found in the Endpoints on NAI GUI)
    • Endpoint Name - e.g. llama-8b
    • API key - created during Endpoint creation

We have successfully deployed the following:

  • Inferencing endpoint
  • A sample chat application that uses NAI to provide chatbot capabilities
