This lab will take you through install Air-gapped NKP(Kubernetes) on Nutanix cluster as we will be deploying AI applications on these kubernetes clusters.

Airgapped NKP Cluster

This lab assumes the following:

  • The subnet (VPC or otherwise) is air-gapped and there is no internet connectivity.
  • The jumphost VM has connectivity to download the NKP air-gapped bundle
  • The jumphost is in the same subnet as the Kubernetes cluster
  • The jumphost VM is hosting Harbor container registry
stateDiagram-v2
    direction LR

    state DeployNKP {
        [*] --> CreateNkpMachineImage
        CreateNkpMachineImage --> UploadImagestoRegistry
        UploadImagestoRegistry -->  CreateNKPCluster
        CreateNKPCluster --> GenerateLicense
        GenerateLicense --> InstallLicense
        InstallLicense --> DeployGpuNodePool
        DeployGpuNodePool --> EnableGpuOperator
        EnableGpuOperator --> [*]
    }

    PrepWorkstation --> DeployJumpHost
    DeployJumpHost --> DeployNKP
    DeployNKP --> DeployNai : Next section

Deploying NKP Cluster

This lab will focus on deploying NKP to host NAI workloads. However, the steps can also be used deploy a custom NKP deployment if that's the aim.

Consider using NKP The Hard Way section to create a customized version of your NKP cluster.

Once you have determined the resource requirements for a custom NKP deployment, modify the environment variables and values in the .env file to suit your resource needs for your NKP cluster.

NKP High Level Cluster Design

The nkpdarksite cluster will be hosting the LLM model serving endpoints and AI application stack. This cluster and will require a dedicated GPU node pool.

Sizing Requirements

Below are the sizing requirements needed to successfully deploy NAI on a NKP Cluster (labeled as nkpdarksite) and subsequently deploying single LLM inferencing endpoint on NAI using the meta-llama/Meta-Llama-3-8B-Instruct LLM model.

Calculating GPU Resources Tips

The calculations below assume that you're already aware of how much memory is required to load target LLM model.

For a general example:

  • To host a 8b(illion) parameter model, multiply the parameter number by 2 to get minimum GPU memory requirments. e.g. 16GB of GPU memory is required for 8b parameter model.

So in the case of the meta-llama/Meta-Llama-3-8B-Instruct model, you'll need a min. 16 GiB GPU vRAM available

Below are additional sizing consideration "Rule of Thumb" for further calculating min. GPU node resources:

  • For each GPU node will have 8 CPU cores, 24 GB of memory, and 300 GB of disk space.
  • For each GPU attached to the node, add 16 GiB of memory.
  • For each endpoint attached to the node, add 8 CPU cores.
  • If a model needs multiple GPUs, ensure all GPUs are attached to the same worker node
  • For resiliency, while running multiple instances of the same endpoint, ensure that the GPUs are on different worker nodes.

Since we will be testing with the meta-llama/Meta-Llama-3-8B-Instruct HuggingFace model, we will require a GPU with a min. of 24 GiB GPU vRAM available to support this demo.

Note

GPU min. vRAM should be 24 GB, such as NVIDIA L4 Model.

Below are minimum requirements for deploying NAI on the NKP Demo Cluster.

Role No. of Nodes (VM) vCPU per Node Memory per Node Storage per Node Total vCPU Total Memory
Control plane 3 4 16 GB 150 GB 12 48 GB
Worker 4 8 32 GB 150 GB 32 128 GB
GPU 1 16 40 GB 300 GB 16 40 GB
Totals 60 216 GB

Pre-requisites for NKP Deployment

  1. Nutanix PC is at least 2024.1
  2. Nutanix AOS is at least 6.5,6.8+

  3. Existing Ubuntu Linux jumphost VM. See here for jumphost installation steps.

    Before you proceed!

    Make sure the Jumphost VM has enough resources to host the following:

    • Harbor container registry
    • Bootstrap kind cluster

    with at least the following resources:

    # CPU Memory Disk
    Jumphost VM 8 16 GB 80 GB

  4. Docker or Podman installed on the jumphost VM

  5. Existing Harbor container registry on the jumphost VM. See here for installation steps.
  6. Download and install nkp binary from Nutanix Portal
  7. Find and reserve 3 IPs for control plane and MetalLB access from AHV network

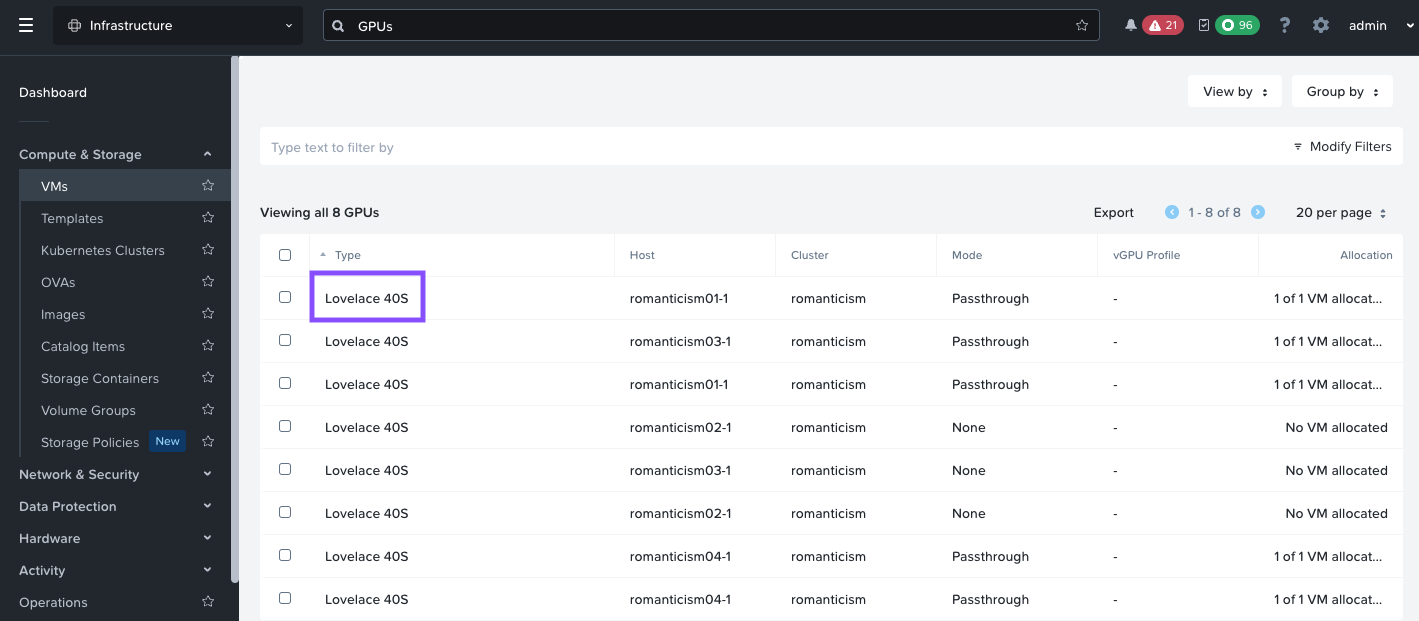

  8. Find GPU details from Nutanix cluster
  9. Create a base image to use with NKP nodes using nkp command

Download Offline NKP Air-gapped Bundle

  1. Login to Nutanix Portal using your credentials
  2. Go to Downloads > NKP Airgapped Bundle
  3. Select NKP for Linux and copy the download link to the .tar.gz file

  4. If you haven't already done so, Open new VSCode window on your jumphost VM

  5. In VSCode Explorer pane, click on existing $HOME folder

  6. Click on New Folder name it: airgap-nkp

  7. On VSCode Explorer plane, click the $HOME/airgap-nkp folder

  8. On VSCode menu, select Terminal > New Terminal

  9. Browse to airgap-nkp directory

    cd $HOME/airgap-nkp

  10. Download and extract the NKP air-gap bundle from the link you copied earlier

    Paste the download URL within double quotes
    curl -o nkp-air-gapped-bundle_v2.12.1_linux_amd64.tar.gz "_paste_download_URL_here"

    curl -o nkp-air-gapped-bundle_v2.12.0_linux_amd64.tar.gz "https://download.nutanix.com/downloads/nkp/v2.12.0/nkp_v2.12.0_linux_amd64.tar.gz?Expires=1729016864&........"

    tar xvfz nkp-air-gapped-bundle_v2.12.0_linux_amd64.tar.gz

  11. Move the nkp binary to a directory that is included in your PATH environment variable

    sudo cp nkp-v2.12.1/cli/nkp /usr/local/bin/

  12. Verify the nkp binary is installed correctly. Ensure the version is latest

    Note

    At the time of writing this lab nkp version is v2.12.1

    nkp version

    $ nkp version
diagnose: v0.10.1
imagebuilder: v0.13.3
kommander: v2.12.1
konvoy: v2.12.1
mindthegap: v1.13.1
nkp: v2.12.1

Setup Docker on Jumphost

If not already done, follow the steps in Setup Docker on Jumphost section.

Load Docker with NKP Images

  1. From VSC, open Terminal and run the following command to load the nkp images

    cd $HOME/airgap-nkp/nkp-v2.12.1/cli
docker load -i nkp-image-builder-image-v0.13.1.tar
docker load -i konvoy-bootstrap-image-v2.12.0.tar

  2. Confirm presence of container images on jumhost VM

    docker image ls

    $ docker image ls

REPOSITORY                                                   TAG       IMAGE ID       CREATED        SIZE
mesosphere/nkp-image-builder                                 v0.13.3   fbb35cce9a8f   44 years ago   594MB
mesosphere/konvoy-bootstrap                                  v2.12.1   7ca8eeaa8381   3 weeks ago    2.15GB

Reserve Control Plane and MetalLB IP

Nutanix AHV IPAM network allows you to black list IPs that needs to be reserved for specific application endpoints. We will use this feature to find and reserve three IPs.

We will reserve a total of three IPs for the following:

Cluster Role Cluster Name NKP NAI
Dev nkpdarksite 2 1

  1. Get the CIDR range for the AHV network(subnet) where the application will be deployed

    CIDR example for your Nutanix cluster
    10.x.x.0/24

  2. From VSC, logon to your jumpbox VM and open Terminal

  3. Install nmap tool (if not already done)

    cd $HOME/sol-cnai-infra
devbox add nmap

  4. Find three unused static IP addresses in the subnet

    nmap -v -sn  <your CIDR>

    nmap -v -sn 10.x.x.0/24
    Sample output - choose the first three consecutive IPs
    Nmap scan report for 10.x.x.214 [host down]
Nmap scan report for 10.x.x.215 [host down]
Nmap scan report for 10.x.x.216 [host down]
Nmap scan report for 10.x.x.217
Host is up (-0.098s latency).

  5. Logon to any CVM in your Nutanix cluster and execute the following to add chosen static IPs to the AHV IPAM network

    • Username: nutanix
    • Password: your Prism Element password
    acli net.add_to_ip_blacklist <your-ipam-ahv-network> \
ip_list=10.x.x.214,10.x.x.215,10.x.x.216

    acli net.add_to_ip_blacklist User1 \
ip_list=10.x.x.214,10.x.x.215,10.x.x.216

Reservation of IPs

Reserve the firs IPs for NKP control plane Reserve the second two IPs for MetalLB distributed load balancer - We will use one of these IP for NAI

Reserve the third IP for NAI. We will use the NAI IP in the next NAI section to assign the FDQN and install SSL certificate.

Component IP FQDN
NKP Control Plane VIP 10.x.x.214 -
NKP MetalLB IP Range 10.x.x.215-10.x.x.216 -
NAI 10.x.x.216 nai.10.x.x.216.nip.io

Create Base Image for NKP

In this section we will go through creating a base image for all the control plane and worker node VMs on Nutanix.

  1. In VSC Explorer pane, Click on New Folder

  2. Call the folder airgap-nkp under $HOME directory

  3. In the airgap-nkp folder, click on New File and create new file with the following name:

    .env

  4. Run the following command to generate an new RSA key pair on the jumphost VM. This SSH key pair will be used for authentication between the jumphost and NKP K8S cluster nodes.

    Do you have existing SSH key pair?

    Copy the key pair from your workstation (PC/Mac) to ~/.ssh/ directory on your Jumphost VM.

    mac/pc $ scp ~/.ssh/id_rsa.pub ubuntu@10.x.x.171:~/.ssh/id_rsa.pub
mac/pc $ scp ~/.ssh/id_rsa ubuntu@10.x.x.171:~/.ssh/id_rsa

    ssh-keygen -t rsa

    Accept the default file location as ~/.ssh/id_rsa

    SSH key pair will stored in the following location:

    ~/.ssh/id_rsa.pub
~/.ssh/id_rsa

  5. Fill the following values inside the .env file

    export NUTANIX_USER=_your_nutanix_username
export NUTANIX_PASSWORD=_your_nutanix_password
export NUTANIX_ENDPOINT=_your_prism_central_fqdn
export NUTANIX_CLUSTER=_your_prism_element_cluster_name
export NUTANIX_SUBNET_NAME=_your_ahv_ipam_network_name
export STORAGE_CONTAINER=_your_storage_container_nmae
export SSH_PUBLIC_KEY=_path_to_ssh_pub_key_on_jumphost_vm
export NKP_CLUSTER_NAME=_your_nkp_cluster_name
export CONTROLPLANE_VIP=_your_nkp_cluster_controlplane_ip
export LB_IP_RANGE=_your_range_of_two_ips
export OS_BUNDLE_DIR=_your_artifacts_directory
export OS=_your_preferred_os
export BASE_IMAGE=_your_baseimage_name

    export NUTANIX_USER=admin
export NUTANIX_PASSWORD=xxxxxxxx
export NUTANIX_ENDPOINT=pc.example.com
export NUTANIX_CLUSTER=pe
export NUTANIX_SUBNET_NAME=User1
export STORAGE_CONTAINER=default
export SSH_PUBLIC_KEY=$HOME/.ssh/id_rsa.pub
export NKP_CLUSTER_NAME=nkpdarksite
export CONTROLPLANE_VIP=10.x.x.214
export LB_IP_RANGE=10.x.x.215-10.x.x.216
export OS_BUNDLE_DIR=kib/artifacts
export OS=ubuntu-22.04
export BASE_IMAGE=ubuntu-22.04-server-cloudimg-amd64.img

  6. Using VSC Terminal, load the environment variables and its values

    cd $HOME/airgap-nkp
source .env
cd nkp-v2.12.1/

  7. Create the base image

    nkp create package-bundle --artifacts-directory ${OS_BUNDLE_DIR} ${OS}

    $ nkp create package-bundle --artifacts-directory ${OS_BUNDLE_DIR} ${OS}

OS bundle configuration files extracted to /home/ubuntu/airgap-nkp/nkp-v2.12.1/kib/artifacts/.dkp-image-builder-2593079857
Get:1 http://archive.ubuntu.com/ubuntu jammy InRelease [270 kB]
Get:2 http://security.ubuntu.com/ubuntu jammy-security InRelease [129 kB]

<snip>

Get:241 http://archive.ubuntu.com/ubuntu jammy-updates/universe amd64 gpgv2 all 2.2.27-3ubuntu2.1 [4392 B]
Get:242 http://archive.ubuntu.com/ubuntu jammy-updates/universe amd64 python3-pip all 22.0.2+dfsg-1ubuntu0.5 [1306 kB]
Get:243 http://archive.ubuntu.com/ubuntu jammy-updates/universe amd64 python3-wheel all 0.37.1-2ubuntu0.22.04.1 [32.0 kB]
Fetched 176 MB in 9s (19.9 MB/s)
dpkg-scanpackages: info: Wrote 243 entries to output Packages file.
/home/ubuntu/airgap-nkp/nkp-v2.12.1/kib/artifacts/.dkp-image-builder-2593079857/ubuntu-22.04/Packages

  8. Create the os image and upload to Prism Central using the following command.

    Note

    Image creation will take up to 5 minutes.

    nkp create image nutanix ${OS} --endpoint ${NUTANIX_ENDPOINT} --cluster ${NUTANIX_CLUSTER} --subnet ${NUTANIX_SUBNET_NAME} --source-image ${BASE_IMAGE} --artifacts-directory ${OS_BUNDLE_DIR}

    nkp create image nutanix ${OS} --endpoint ${NUTANIX_ENDPOINT} --cluster ${NUTANIX_CLUSTER} --subnet ${NUTANIX_SUBNET_NAME} --source-image ${BASE_IMAGE} --artifacts-directory ${OS_BUNDLE_DIR}

> Provisioning and configuring image
Manifest files extracted to $HOME/nkp/.nkp-image-builder-3243021807
nutanix.kib_image: output will be in this color.

==> nutanix.kib_image: Creating Packer Builder virtual machine...
    nutanix.kib_image: Virtual machine nkp-ubuntu-22.04-1.29.6-20240717082720 created
    nutanix.kib_image: Found IP for virtual machine: 10.x.x.234
==> nutanix.kib_image: Running post-processor: packer-manifest (type manifest)

---> 100%
Build 'nutanix.kib_image' finished after 4 minutes 55 seconds.
==> Wait completed after 4 minutes 55 seconds

==> Builds finished. The artifacts of successful builds are:
--> nutanix.kib_image: nkp-ubuntu-22.04-1.29.6-20240717082720
--> nutanix.kib_image: nkp-ubuntu-22.04-1.29.6-20240717082720

    Image name - This will be different in your environment

    Note image name from the previous nkp create image command output

    ==> Builds finished. The artifacts of successful builds are:
--> nutanix.kib_image: nkp-ubuntu-22.04-1.29.6-20240717082720

    Warning

    Make sure to use image name that is generated in your environment for the next steps.

  9. Populate the .env file with the NKP image name by adding (appending) the following environment variables and save it

    export NKP_IMAGE=nkp-image-name

    export NKP_IMAGE=nkp-ubuntu-22.04-1.29.6-20240717082720

Push Container Images to Local/Private Registry to be used by NKP

Warning

This section requires a air-gapped container registry to be functional.

If you haven't already deployed the air gapped container registry, please follow the steps in Harbor Container Registry section to deploy a Harbor container registry on the jumphost VM.

  1. Open $HOME/airgap-nkp/.env file in VSC and add (append) the following environment variables to your .env file and save it

    export REGISTRY_URL=_your_registry_url
export REGISTRY_USERNAME=_your_registry_username
export REGISTRY_PASSWORD=_your_registry_password
export REGISTRY_CACERT=_path_to_ca_cert_of_registry

    export REGISTRY_URL=https://harbor.10.x.x.111.nip.io/nkp
export REGISTRY_USERNAME=admin
export REGISTRY_PASSWORD=xxxxxxxx
export REGISTRY_CACERT=$HOME/harbor/certs/ca.crt

  2. Source the new variables and values to the environment

    cd $HOME/airgap-nkp/
source .env

  3. Push the images to air-gapped registry

    cd nkp-v2.12.1/


    nkp push bundle --bundle ./container-images/konvoy-image-bundle-v2.12.1.tar \
--to-registry=${REGISTRY_URL} --to-registry-username=${REGISTRY_USERNAME} \
--to-registry-password=${REGISTRY_PASSWORD} \
--to-registry-ca-cert-file=${REGISTRY_CACERT}

    nkp push bundle --bundle ./container-images/kommander-image-bundle-v2.12.1.tar \
--to-registry=${REGISTRY_URL} --to-registry-username=${REGISTRY_USERNAME} \
--to-registry-password=${REGISTRY_PASSWORD} \
--to-registry-ca-cert-file=${REGISTRY_CACERT}

    nkp push bundle --bundle ./container-images/nkp-catalog-applications-image-bundle-v2.12.1.tar \
--to-registry=${REGISTRY_URL} --to-registry-username=${REGISTRY_USERNAME} \
--to-registry-password=${REGISTRY_PASSWORD} \
--to-registry-ca-cert-file=${REGISTRY_CACERT}


    $ nkp push bundle --bundle ./container-images/konvoy-image-bundle-v2.12.1.tar \
--to-registry=${REGISTRY_URL} --to-registry-username=${REGISTRY_USERNAME} \
--to-registry-password=${REGISTRY_PASSWORD} \
--to-registry-ca-cert-file=${REGISTRY_CACERT}
✓ Creating temporary directory
✓ Unarchiving image bundle "./container-images/konvoy-image-bundle-v2.12.1.tar"
✓ Parsing image bundle config
✓ Starting temporary Docker registry
✓ Pushing bundled images [================================>129/129] (time elapsed 153s)

    $ nkp push bundle --bundle ./container-images/kommander-image-bundle-v2.12.1.tar \
--to-registry=${REGISTRY_URL} --to-registry-username=${REGISTRY_USERNAME} \
--to-registry-password=${REGISTRY_PASSWORD} \
--to-registry-ca-cert-file=${REGISTRY_CACERT}
✓ Creating temporary directory
✓ Unarchiving image bundle "./container-images/kommander-image-bundle-v2.12.1.tar"
✓ Parsing image bundle config
✓ Starting temporary Docker registry
✓ Pushing bundled images [================================>131/131] (time elapsed 183s)
(devbox)

    nkp push bundle --bundle ./container-images/nkp-catalog-applications-image-bundle-v2.12.1.tar \
--to-registry=${REGISTRY_URL} --to-registry-username=${REGISTRY_USERNAME} \
--to-registry-password=${REGISTRY_PASSWORD} \
--to-registry-ca-cert-file=${REGISTRY_CACERT}
✓ Creating temporary directory
✓ Unarchiving image bundle "./container-images/nkp-catalog-applications-image-bundle-v2.12.1.tar"
✓ Parsing image bundle config
✓ Starting temporary Docker registry
✓ Pushing bundled images [====================================>8/8] (time elapsed 25s)
(devbox)

We are now ready to install the workload nkpdarksite cluster

Create Air-gapped NKP Workload Cluster

  1. Open .env file in VSC and add (append) the following environment variables to your .env file and save it

    export CONTROL_PLANE_REPLICAS=_no_of_control_plane_replicas
export CONTROL_PLANE_VCPUS=_no_of_control_plane_vcpus
export CONTROL_PLANE_CORES_PER_VCPU=_no_of_control_plane_cores_per_vcpu
export CONTROL_PLANE_MEMORY_GIB=_no_of_control_plane_memory_gib
export WORKER_REPLICAS=_no_of_worker_replicas
export WORKER_VCPUS=_no_of_worker_vcpus
export WORKER_CORES_PER_VCPU=_no_of_worker_cores_per_vcpu
export WORKER_MEMORY_GIB=_no_of_worker_memory_gib
export CSI_FILESYSTEM=_preferred_filesystem_ext4/xfs
export CSI_HYPERVISOR_ATTACHED=_true/false
export NUTANIX_PROJECT_NAME=_your_pc_project_name

    export CONTROL_PLANE_REPLICAS=3
export CONTROL_PLANE_VCPUS=4
export CONTROL_PLANE_CORES_PER_VCPU=1
export CONTROL_PLANE_MEMORY_GIB=16
export WORKER_REPLICAS=4
export WORKER_VCPUS=8
export WORKER_CORES_PER_VCPU=1
export WORKER_MEMORY_GIB=32
export CSI_FILESYSTEM=ext4
export CSI_HYPERVISOR_ATTACHED=true
export NUTANIX_PROJECT_NAME=dev-lab

  2. Source the new variables and values to the environment

    source .env

  3. In VSC, open Terminal, enter the following command to create the workload cluster

    Check your command for correct argument values

    Run the following command to verify your nkp command and associated environment variables and values.

    echo "nkp create cluster nutanix -c ${NKP_CLUSTER_NAME} \
        --control-plane-endpoint-ip ${CONTROLPLANE_VIP} \
        --control-plane-prism-element-cluster ${NUTANIX_CLUSTER} \
        --control-plane-subnets ${NUTANIX_SUBNET_NAME} \
        --control-plane-vm-image ${NKP_IMAGE} \
        --csi-storage-container ${STORAGE_CONTAINER} \
        --endpoint https://${NUTANIX_ENDPOINT}:9440 \
        --worker-prism-element-cluster ${NUTANIX_CLUSTER} \
        --worker-subnets ${NUTANIX_SUBNET_NAME} \
        --worker-vm-image ${NKP_IMAGE} \
        --ssh-public-key-file ${SSH_PUBLIC_KEY} \
        --kubernetes-service-load-balancer-ip-range ${LB_IP_RANGE} \
        --control-plane-disk-size 150 \
        --control-plane-memory ${CONTROL_PLANE_MEMORY_GIB} \
        --control-plane-vcpus ${CONTROL_PLANE_VCPUS} \
        --control-plane-cores-per-vcpu ${CONTROL_PLANE_CORES_PER_VCPU} \
        --worker-disk-size 150 \
        --worker-memory ${WORKER_MEMORY_GIB} \
        --worker-vcpus ${WORKER_VCPUS} \
        --worker-cores-per-vcpu ${WORKER_CORES_PER_VCPU} \
        --csi-file-system ${CSI_FILESYSTEM} \
        --csi-hypervisor-attached-volumes=${CSI_HYPERVISOR_ATTACHED} \
        --registry-mirror-url=${REGISTRY_URL} \
        --registry-mirror-username=${REGISTRY_USERNAME} \
        --registry-mirror-password=${REGISTRY_PASSWORD} \
        --registry-mirror-cacert=${REGISTRY_CACERT} \
        --control-plane-pc-project ${NUTANIX_PROJECT_NAME} \
        --worker-pc-project ${NUTANIX_PROJECT_NAME} \
        --self-managed \
        --airgapped"

    If the values are incorrect, add the correct values to .env and source the again by running the following command

    source .env

    Then rerun the echo nkp command to verify the values again before running the nkp create cluster nutanix command.

    nkp create cluster nutanix -c ${NKP_CLUSTER_NAME} \
    --control-plane-endpoint-ip ${CONTROLPLANE_VIP} \
    --control-plane-prism-element-cluster ${NUTANIX_CLUSTER} \
    --control-plane-subnets ${NUTANIX_SUBNET_NAME} \
    --control-plane-vm-image ${NKP_IMAGE} \
    --csi-storage-container ${STORAGE_CONTAINER} \
    --endpoint https://${NUTANIX_ENDPOINT}:9440 \
    --worker-prism-element-cluster ${NUTANIX_CLUSTER} \
    --worker-subnets ${NUTANIX_SUBNET_NAME} \
    --worker-vm-image ${NKP_IMAGE} \
    --ssh-public-key-file ${SSH_PUBLIC_KEY} \
    --kubernetes-service-load-balancer-ip-range ${LB_IP_RANGE} \
    --control-plane-disk-size 150 \
    --control-plane-memory ${CONTROL_PLANE_MEMORY_GIB} \
    --control-plane-vcpus ${CONTROL_PLANE_VCPUS} \
    --control-plane-cores-per-vcpu ${CONTROL_PLANE_CORES_PER_VCPU} \
    --worker-disk-size 150 \
    --worker-memory ${WORKER_MEMORY_GIB} \
    --worker-vcpus ${WORKER_VCPUS} \
    --worker-cores-per-vcpu ${WORKER_CORES_PER_VCPU} \
    --csi-file-system ${CSI_FILESYSTEM} \
    --csi-hypervisor-attached-volumes=${CSI_HYPERVISOR_ATTACHED} \
    --registry-mirror-url=${REGISTRY_URL} \
    --registry-mirror-username=${REGISTRY_USERNAME} \
    --registry-mirror-password=${REGISTRY_PASSWORD} \
    --registry-mirror-cacert=${REGISTRY_CACERT} \
    --control-plane-pc-project ${NUTANIX_PROJECT_NAME} \
    --worker-pc-project ${NUTANIX_PROJECT_NAME} \
    --self-managed \
    --airgapped

    > ✓ Creating a bootstrap cluster
✓ Upgrading CAPI components
✓ Waiting for CAPI components to be upgraded
✓ Initializing new CAPI components
✓ Creating ClusterClass resources
✓ Creating ClusterClass resources
> Generating cluster resources
cluster.cluster.x-k8s.io/nkpdarksite created
secret/nkpdarksite-pc-credentials created
secret/nkpdarksite-pc-credentials-for-csi created
secret/nkpdarksite-image-registry-credentials created
✓ Waiting for cluster infrastructure to be ready
✓ Waiting for cluster control-planes to be ready
✓ Waiting for machines to be ready
✓ Initializing new CAPI components
✓ Creating ClusterClass resources
✓ Moving cluster resources

> You can now view resources in the moved cluster by using the --kubeconfig flag with kubectl.
For example: kubectl --kubeconfig="$HOME/nkp/nkpdarksite.conf" get nodes

> ✓ Deleting bootstrap cluster

Cluster default/nkpdarksite kubeconfig was written to to the filesystem.
You can now view resources in the new cluster by using the --kubeconfig flag with kubectl.
For example: kubectl --kubeconfig="$HOME/nkp/nkpdarksite.conf" get nodes

> Starting kommander installation
✓ Deploying Flux
✓ Deploying Ingress certificate
✓ Creating kommander-overrides ConfigMap
✓ Deploying Git Operator
✓ Creating GitClaim for management GitRepository
✓ Creating GitClaimUser for accessing management GitRepository
✓ Creating HTTP Proxy configuration
✓ Deploying Flux configuration
✓ Deploying Kommander Operator
✓ Creating KommanderCore resource
✓ Cleaning up kommander bootstrap resources
✓ Deploying Substitution variables
✓ Deploying Flux configuration
✓ Deploying Gatekeeper
✓ Deploying Kommander AppManagement
✓ Creating Core AppDeployments
✓ 4 out of 12 core applications have been installed (waiting for dex, dex-k8s-authenticator and 6 more)
✓ 5 out of 12 core applications have been installed (waiting for dex-k8s-authenticator, kommander and 5 more)
✓ 7 out of 12 core applications have been installed (waiting for dex-k8s-authenticator, kommander and 3 more)
✓ 8 out of 12 core applications have been installed (waiting for dex-k8s-authenticator, kommander-ui and 2 more)
✓ 9 out of 12 core applications have been installed (waiting for dex-k8s-authenticator, kommander-ui and 1 more)
✓ 10 out of 12 core applications have been installed (waiting for dex-k8s-authenticator, traefik-forward-auth-mgmt)
✓ 11 out of 12 core applications have been installed (waiting for traefik-forward-auth-mgmt)
✓ Creating cluster-admin credentials

> Cluster was created successfully! Get the dashboard details with:
> nkp get dashboard --kubeconfig="$HOME/airgap-nkp/nkpdarksite.conf"

    Deployment info

    The above command with the use of --self-managed argument, will create a bootstrap cluster, deploy CAPI resources on it and create a NKP base cluster (konvoy) using the CAPI components in the bootstrap cluster. It will automatically do the following once the NKP base cluster is provisioned:

    • Deploy CAPI components on the bootstrap cluster
    • Move the CAPI components from the bootstrap cluster to the new cluster
    • Delete the Bootstrap cluster
    • Deploy the Kommander components on top of the new base NKP cluster

    See NKP the Hard Way section for more information for customizable NKP cluster deployments.

  4. Observe the events in the shell and in Prism Central events

  5. Store kubeconfig file for bootstrap cluster

    kind get kubeconfig --name konvoy-capi-bootstrapper > bs.cfg
export KUBECONFIG=bs.cfg

  6. Store kubeconfig files for the workload cluster

    nkp get kubeconfig -c ${NKP_CLUSTER_NAME} > ${NKP_CLUSTER_NAME}.cfg

  7. Combine the bootstrap and workload clusters KUBECONFIG file so that we can use it with kubectxcommand to change context between clusters

    export KUBECONFIG=bs.cfg:${NKP_CLUSTER_NAME}.cfg
kubectl config view --flatten > all-in-one-kubeconfig.yaml
export KUBECONFIG=all-in-one-kubeconfig.yaml

  8. Run the following command to check K8S status of the nkpdarksite cluster

    kubectx ${NKP_CLUSTER_NAME}-admin@${NKP_CLUSTER_NAME}
kubectl get nodes

    $ kubectl get nodes

NAME                                  STATUS   ROLES           AGE     VERSION
nkpdarksite-md-0-x948v-hvxtj-9r698           Ready    <none>          4h49m   v1.29.6
nkpdarksite-md-0-x948v-hvxtj-fb75c           Ready    <none>          4h50m   v1.29.6
nkpdarksite-md-0-x948v-hvxtj-mdckn           Ready    <none>          4h49m   v1.29.6
nkpdarksite-md-0-x948v-hvxtj-shxc8           Ready    <none>          4h49m   v1.29.6
nkpdarksite-r4fwl-8q4ch                      Ready    control-plane   4h50m   v1.29.6
nkpdarksite-r4fwl-jf2s8                      Ready    control-plane   4h51m   v1.29.6
nkpdarksite-r4fwl-q888c                      Ready    control-plane   4h49m   v1.29.6

Add NKP GPU Workload Pool

Are you just deploying NKP?

If you are doing this lab only to deploy NKP, then you can skip this GPU section.

The steps below covers the following: - Retrieving and Applying NKP Pro License - Identifying the GPU device name - Deploying the GPU nodepool - Enabling the NVIDIA GPU Operator

Note

To Enable the GPU Operator afterwards using the NKP Marketplace, a minimal NKP Pro license is required.

Find GPU Device Details

As we will be deploying Nutanix Enterprise AI (NAI) in the next section, we need to find the GPU details beforehand.

Find the details of GPU on the Nutanix cluster while still connected to Prism Central (PC).

  1. Logon to Prism Central GUI
  2. On the general search, type GPUs

  3. Click on the GPUs result

  4. Lovelace 40s is the GPU available for use

  5. Use Lovelace 40s in the evironment variables in the next section.

Create NKP GPU Workload Pool

In this section we will create a nodepool to host the AI apps with a GPU.

  1. Open .env file in VSC and add (append) the following environment variables to your .env file and save it

    export GPU_NAME=_name_of_gpu_device_
export GPU_REPLICA_COUNT=_no_of_gpu_worker_nodes
export GPU_POOL=_name_of_gpu_pool
export GPU_NODE_VCPUS=_no_of_gpu_node_vcpus
export GPU_NODE_CORES_PER_VCPU=_per_gpu_node_cores_per_vcpu
export GPU_NODE_MEMORY_GIB=_per_gpu_node_memory_gib
export GPU_NODE_DISK_SIZE_GIB=_per_gpu_node_memory_gib

    export GPU_NAME="Lovelace 40S"
export GPU_REPLICA_COUNT=1
export GPU_POOL=gpu-nodepool
export GPU_NODE_VCPUS=16
export GPU_NODE_CORES_PER_VCPU=1
export GPU_NODE_MEMORY_GIB=40
export GPU_NODE_DISK_SIZE_GIB=200

  2. Source the new variables and values to the environment

    source .env

  3. Run the following command to create a GPU nodepool manifest

    nkp create nodepool nutanix \
    --cluster-name ${NKP_CLUSTER_NAME} \
    --prism-element-cluster ${NUTANIX_CLUSTER} \
    --pc-project ${NUTANIX_PROJECT_NAME} \
    --subnets ${NUTANIX_SUBNET_NAME} \
    --vm-image ${NKP_IMAGE} \
    --disk-size ${GPU_NODE_DISK_SIZE_GIB} \
    --memory ${GPU_NODE_MEMORY_GIB} \
    --vcpus ${GPU_NODE_VCPUS} \
    --cores-per-vcpu ${GPU_NODE_CORES_PER_VCPU} \
    --replicas ${GPU_REPLICA_COUNT} \
    --wait \
    ${GPU_POOL} --dry-run -o yaml > gpu-nodepool.yaml

    Note

    Right now there is no switch for GPU in nkp command. We need to do dry-run the output into a file and then add the necessary GPU specifications

  4. Add the necessary gpu section to our new gpu-nodepool.yaml using yq command

    yq e '(.spec.topology.workers.machineDeployments[] | select(.name == "gpu-nodepool").variables.overrides[] | select(.name == "workerConfig").value.nutanix.machineDetails) += {"gpus": [{"type": "name", "name": strenv(GPU_NAME)}]}' -i gpu-nodepool.yaml
    Successful addtion of GPU specs?

    You would be able to see the added gpu section at the end of the gpu-nodepool.yaml file

    apiVersion: cluster.x-k8s.io/v1beta1
kind: Cluster

<snip>

  name: gpu-nodepool
  variables:
    overrides:
      - name: workerConfig
        value:
          nutanix:
            machineDetails:
              bootType: legacy
              cluster:
                name: romanticism
                type: name
              image:
                name: nkp-ubuntu-22.04-1.29.6-20240718055804
                type: name
              memorySize: 40Gi
              subnets:
                - name: User1
                  type: name
              systemDiskSize: 200Gi
              vcpuSockets: 16
              vcpusPerSocket: 1
              gpus:
                - type: name
                  name: Lovelace 40S

  5. Monitor Cluster-Api resources to ensure gpu machine will be successfully

    watch kubectl get cluster-api

  6. Apply the gpu-nodepool.yaml file to the workload cluster

    kubectl apply -f gpu-nodepool.yaml

  7. Monitor the progress of the command and check Prism Central events for creation of the GPU worker node

    Change to workload nkpdev cluster context

    kubectx ${NKP_CLUSTER_NAME}-admin@${NKP_CLUSTER_NAME}

  8. Check nodes status in workload nkpdarksite cluster and note the gpu worker node

    kubectl get nodes -w

    $ kubectl get nodes

NAME                                   STATUS   ROLES           AGE     VERSION
nkpdarksite-gpu-nodepool-7g4jt-2p7l7-49wvd   Ready    <none>          5m57s   v1.29.6
nkpdarksite-md-0-q679c-khl2n-9k7jk           Ready    <none>          74m     v1.29.6
nkpdarksite-md-0-q679c-khl2n-9nk6h           Ready    <none>          74m     v1.29.6
nkpdarksite-md-0-q679c-khl2n-nf9p6           Ready    <none>          73m     v1.29.6
nkpdarksite-md-0-q679c-khl2n-qgxp9           Ready    <none>          74m     v1.29.6
nkpdarksite-ncnww-2dg7h                      Ready    control-plane   73m     v1.29.6
nkpdarksite-ncnww-bbm4s                      Ready    control-plane   72m     v1.29.6
nkpdarksite-ncnww-hldm9                      Ready    control-plane   75m     v1.29.6

Licensing

We need to generate a license for the NKP cluster which is the total for all the vCPUs used by worker nodes.

For example, in the Sizing Requirements section, the NKP Demo Cluster Total vCPU count is equal to 60, whereas the actual worker nodes total vCPU count is only 48.

Generate NKP Pro License

To generate a NKP Pro License for the NKP cluster:

Note

Nutanix Internal users should logon using Nutanix SSO

Nutanix Partners/Customers should logon to Portal using their Nutanix Portal account credentials

  1. Login to Nutanix Portal using your credentials
  2. Go to Licensing > License Summary
  3. Click on the small drop down arrow on Manage Licenses and choose Nutanix Kubernetes Platform (NKP)
  4. Input the NKP cluster name
  5. Click on the plus icon
  6. Click on Next in the bottom right corner
  7. Select NKP Pro License
  8. Select Apply to cluster
  9. Choose Non-production license and Save
  10. Select the cluster name and click on Next
  11. Input the number of vCPU (60) from our calculations in the previous section
  12. Click on Save
  13. Download the csv file and store it in a safe place

Applying NKP Pro License to NKP Cluster

  1. Login to the Kommander URL for nkpdarksite cluster with the generated credentials that was generated in the previous section. The following commands will give you the credentials and URL.

    nkp get dashboard

    nkp get dashboard

Username: recursing_xxxxxxxxx
Password: YHbPsslIDB7p7rqwnfxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
URL: https://10.x.x.215/dkp/kommander/dashboard

  2. Go to Licensing and click on Remove License to remove the Starter license

  3. Type nutanix-license in the confirmation box and click on Remove License
  4. Click on Add License, choose Nutanix platform and paste the license key from the previous section
  5. Click on Save
  6. Confirm the license is applied to the cluster by cheking the License Status in the License menu
  7. The license will be applied to the cluster and the license status will reflect NKP Pro in the top right corner of the dashboard

Enable GPU Operator

We will need to enable GPU operator for deploying NKP application.

  1. In the NKP GUI, Go to Clusters
  2. Click on Kommander Host
  3. Go to Applications
  4. Search for NVIDIA GPU Operator
  5. Click on Enable
  6. Click on Configuration tab

  7. Click on Workspace Application Configuration Override and paste the following yaml content

    driver:
  enabled: true

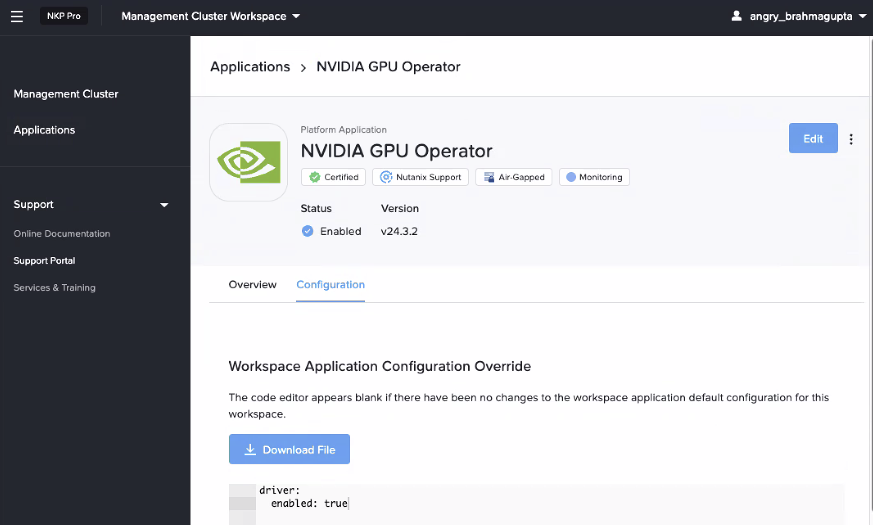

    As shown here:

    alt text

  8. Click on Enable on the top right-hand corner to enable GPU driver on the Ubuntu GPU nodes

  9. Check GPU operator resources and make sure they are running

    kubectl get po -A | grep -i nvidia

    kubectl get po -A | grep -i nvidia

nvidia-container-toolkit-daemonset-fjzbt                          1/1     Running     0          28m
nvidia-cuda-validator-f5dpt                                       0/1     Completed   0          26m
nvidia-dcgm-exporter-9f77d                                        1/1     Running     0          28m
nvidia-dcgm-szqnx                                                 1/1     Running     0          28m
nvidia-device-plugin-daemonset-gzpdq                              1/1     Running     0          28m
nvidia-driver-daemonset-dzf55                                     1/1     Running     0          28m
nvidia-operator-validator-w48ms                                   1/1     Running     0          28m

  10. Run a sample GPU workload to confirm GPU operations

    kubectl apply -f - <<EOF
apiVersion: v1
kind: Pod
metadata:
  name: cuda-vector-add
spec:
  restartPolicy: OnFailure
  containers:
  - name: cuda-vector-add
    image: k8s.gcr.io/cuda-vector-add:v0.1
    resources:
      limits:
        nvidia.com/gpu: 1
EOF

    pod/cuda-vector-add created

  11. Follow the logs to check if the GPU operations are successful

    kubectl logs _gpu_worload_pod_name

    kubectl logs cuda-vector-add-xxx

    kubectl logs cuda-vector-add
[Vector addition of 50000 elements]
Copy input data from the host memory to the CUDA device
CUDA kernel launch with 196 blocks of 256 threads
Copy output data from the CUDA device to the host memory
Test PASSED
Done

Now we are ready to deploy our AI workloads.
