Deploy NKE Clusters

This section will take you through install NKE(Kubernetes) on Nutanix cluster as we will be deploying AI applications on these kubernetes clusters.

This section will expand to other available Kubernetes implementations on Nutanix.

stateDiagram-v2
    direction LR

    state DeployNKE {
        [*] --> CreateTofuWorkspaces
        CreateTofuWorkspaces --> CreateMgtK8SCluster
        CreateMgtK8SCluster --> CreateDevK8SCluster
        CreateDevK8SCluster --> DeployGPUNodePool
        DeployGPUNodePool --> [*]
    }

    PrepWorkstation --> DeployJumpHost
    DeployJumpHost --> DeployNKE
    DeployNKE --> DeployGiabGitOps : Next section

NKE Setup

We will use Infrastructure as Code framework to deploy NKE kubernetes clusters.

Pre-requisites

• Prism Central is at least version 2023.4
• NKE is enabled on Nutanix Prism Central
• NKE is at at least version 2.10 (updated through LCM)
• NKE Node OS is at least version ntnx-1.7
• NKE Kubernetes is at least version 1.26.11-0
• Monitoring on each NKE Cluster is ENABLED

NKE High Level Cluster Design

The Management NKE cluster will be a centralized cluster that the AI applications on each Workload NKE cluster will be leveraged for automation and observability.

The Workload NKE cluster will be hosting the LLM model serving endpoints and AI application stack. This cluster and will require a dedicated GPU node pool.

We will create a 1 x NKE cluster for Management and at min. 1 x NKE cluster for the DEV Workloads.

Once DEV deployment has been tested successfully, we can deploy applications to optional PROD Workload cluster.

Management Cluster

Since the Management Cluster will be essential to all AI application workloads, we will deploy an NKE cluster of type "Production".

Role	No. of Nodes (VM)	vCPU	RAM	Storage
Master	2	8	16 GB	120 GB
ETCD	3	4	8 GB	120 GB
Worker	3	12	16 GB	300 GB

Dev Workload Cluster

For Dev, we will deploy an NKE Cluster of type "Development".

Role	No. of Nodes (VM)	vCPU	RAM	Storage
Master	1	8	16 GB	120 GB
ETCD	1	4	8 GB	120 GB
Worker	3	12	16 GB	300 GB
GPU	2	12	40 GB	300 GB

Prod Workload Cluster

For Prod, we will deploy an NKE Cluster of type "Production".

Role	No. of Nodes (VM)	vCPU	RAM	Storage
Master	2	8	16 GB	120 GB
ETCD	3	4	8 GB	120 GB
Worker	3	12	16 GB	300 GB
GPU	2	12	40 GB	300 GB

Create TOFU Manifest file

1. If you haven't already done so, Open new VSCode window

2. In VSCode Explorer pane, Click on existing tofu-workspace Folder

3. Click on New Folder name it: nke-tofu

4. On VSCode Explorer plane, click the tofu-workspace/nke-tofu folder, click on New File and create a tofu manifest file with following name:

   main.tf


   with the following content:

   main.tf

   terraform {
     required_providers {
       nutanix = {
         source  = "nutanix/nutanix"
         version = "1.9.5"
       }
     }
   }

   locals {
     config = yamldecode(file("${path.module}/.env.${terraform.workspace}.yaml"))
   }

   data "nutanix_cluster" "cluster" {
     name = local.config.prism_element.cluster_name
   }

   data "nutanix_subnet" "subnet" {
     subnet_name = local.config.prism_element.subnet_name
   }

   provider "nutanix" {
     username     = local.config.prism_central.user
     password     = local.config.prism_central.password
     endpoint     = local.config.prism_central.endpoint
     insecure     = false
     wait_timeout = 60
   }

   resource "nutanix_karbon_cluster" "nke_cluster" {
     name       = terraform.workspace
     version    = local.config.nke.k8s_version
     storage_class_config {
       reclaim_policy = "Delete"
       volumes_config {
         file_system                = "ext4"
         flash_mode                 = false
         prism_element_cluster_uuid = data.nutanix_cluster.cluster.id
         storage_container          = local.config.prism_element.storage_container
         username                   = local.config.prism_element.user
         password                   = local.config.prism_element.password
       }
     }

     cni_config {
       node_cidr_mask_size = 24
       pod_ipv4_cidr       = "172.20.0.0/16"
       service_ipv4_cidr   = "172.19.0.0/16"
     }

     worker_node_pool {
       node_os_version = local.config.nke.node_os_version
       num_instances   = local.config.nke.worker.num_instances
       ahv_config {
         cpu = local.config.nke.worker.cpu_count
         memory_mib = local.config.nke.worker.memory_gb * 1024
         disk_mib = local.config.nke.worker.disk_gb * 1024
         network_uuid               = data.nutanix_subnet.subnet.id
         prism_element_cluster_uuid = data.nutanix_cluster.cluster.id
       }
     }

     etcd_node_pool {
       node_os_version = local.config.nke.node_os_version
       num_instances   = local.config.nke.etcd.num_instances
       ahv_config {
         cpu = local.config.nke.etcd.cpu_count
         memory_mib = local.config.nke.etcd.memory_gb * 1024
         disk_mib = local.config.nke.etcd.disk_gb * 1024
         network_uuid               = data.nutanix_subnet.subnet.id
         prism_element_cluster_uuid = data.nutanix_cluster.cluster.id
       }
     }

     master_node_pool {
       node_os_version = local.config.nke.node_os_version
       num_instances   = local.config.nke.master.num_instances
       ahv_config {
         cpu = local.config.nke.master.cpu_count
         memory_mib = local.config.nke.master.memory_gb * 1024
         disk_mib = local.config.nke.master.disk_gb * 1024
         network_uuid               = data.nutanix_subnet.subnet.id
         prism_element_cluster_uuid = data.nutanix_cluster.cluster.id
       }
     }

     timeouts {
       create = "1h"
       update = "30m"
       delete = "10m"
     }

   }


Deploying Management Cluster

1. In VSCode Terminal, change working directory to the nke-tofu folder

   cd tofu-workspace/nke-tofu/


2. In VSCode Terminal, Create Tofu workspace for target NKE Management Cluster

   tofu workspace select -or-create mgmt-cluster


3. On VSCode Explorer plane, click the tofu-workspace/nke-tofu folder, click on New File and create a environment config file for target Management Cluster with following name:

   .env.mgmt-cluster.yaml


   Update Nutanix environment access details along with any NKE specific configurations. See example file for details

   Management Cluster Config fileManagement Cluster Example file

   .env.mgmt-cluster.yaml

   prism_central:
     endpoint: <PC FQDN>
     user: <PC admin user>
     password: <PC admin password>

   prism_element:
     cluster_name: <PE Cluster Name>
     storage_container: default
     subnet_name: <PE Subnet>
     user: <PE admin user>
     password: <PE admin password>

   nke:
     k8s_version: 1.26.11-0
     node_os_version: ntnx-1.7
     master:
       num_instances: 1
       cpu_count: 8
       memory_gb: 16
       disk_gb: 300
     etcd:
       num_instances: 1
       cpu_count: 4
       memory_gb: 8
       disk_gb: 300
     worker:
       num_instances: 3
       cpu_count: 12
       memory_gb: 16
       disk_gb: 300


   .env.mgmt-cluster.yaml

   prism_central:
     endpoint: "pc.example.com"    # < Change to PC endpoint >
     user: "admin"                 # < Change to PC admin user>
     password: "XXXXXXXX"          # < Change to PC admin pass>

   prism_element:
     cluster_name: "mypecluster"   # < Change to PE element cluster name >
     storage_container: default    # < Change to PE element cluster storage container name >
     subnet_name: "VLAN.20"        # < Change to PE element subnet name >
     user: "admin"                 # < Change to PE admin user>
     password: "XXXXXXXX"          # < Change to PE admin pass>

   nke:
     k8s_version: 1.26.11-0
     node_os_version: ntnx-1.7
     master:
       num_instances: 1
       cpu_count: 8
       memory_gb: 16
       disk_gb: 300
     etcd:
       num_instances: 1
       cpu_count: 4
       memory_gb: 8
       disk_gb: 300
     worker:
       num_instances: 3
       cpu_count: 12
       memory_gb: 16
       disk_gb: 300


4. Initialize and Validate your tofu code

   tofu -chdir=tofu-workspace/nke-tofu init -upgrade

   # OpenTofu will initialize the Nutanix provider


   tofu -chdir=tofu-workspace/nke-tofu validate

   # OpenTofu will validate configurations


5. Apply your tofu code to create NKE cluster, associated virtual machines and other resources

   tofu -chdir=tofu-workspace/nke-tofu apply

   # OpenTofu will show you all resources that it will to create
   # Type yes to confirm


6. Run the OpenTofu state list command to verify what resources have been created

   tofu -chdir=tofu-workspace/nke-tofu state list


   # Sample output for the above command

   data.nutanix_cluster.cluster              # < This is your existing Prism Element cluster
   data.nutanix_subnet.subnet                # < This is your existing primary subnet
   nutanix_image.jumphost-image              # < This is the image file for jump host VM
   nutanix_virtual_machine.nai-llm-jumphost  # < This is the jump host VM
   nutanix_karbon_cluster.mgt_cluster        # < This is your Management NKE cluster


Deploying DEV cluster

The DEV cluster will contain GPU node pool to deploy your AI apps.

1. Create TOFU workspace for DEV NKE Cluster

   tofu workspace select -or-create dev-cluster


2. Create the Management NKE cluster config.yaml

   Tip

   The previous .env.mgmt-cluster.yaml could be copied

   cp .env.mgmt-cluster.yaml .env.dev-cluster.yaml


   .env.dev-cluster.yaml


   with the following content:

   .env.dev-cluster.yaml

   prism_central:
     endpoint: <PC FQDN>
     user: <PC user>
     password: <PC password>

   prism_element:
     cluster_name: <PE Cluster Name>
     storage_container: default
     subnet_name: <PE Subnet>
     user: <PE user>
     password: <PE password>

   nke:
     k8s_version: 1.26.11-0
     node_os_version: ntnx-1.7
     master:
       num_instances: 1
       cpu_count: 8
       memory_gb: 16
       disk_gb: 300
     etcd:
       num_instances: 1
       cpu_count: 4
       memory_gb: 8
       disk_gb: 300
     worker:
       num_instances: 3
       cpu_count: 12
       memory_gb: 16
       disk_gb: 300


3. Validate your tofu code

   tofu validate

   # OpenTofu will validate configurations


4. Apply your tofu code to create NKE cluster, associated virtual machines and other resources

   tofu apply

   # OpenTofu will show you all resources that it will to create
   # Type yes to confirm


5. Run the Terraform state list command to verify what resources have been created

   tofu state list


   # Sample output for the above command

   data.nutanix_cluster.cluster              # < This is your existing Prism Element cluster
   data.nutanix_subnet.subnet                # < This is your existing primary subnet
   nutanix_image.jumphost-image              # < This is the image file for jump host VM
   nutanix_virtual_machine.nai-llm-jumphost  # < This is the jump host VM
   nutanix_karbon_cluster.mgt-cluster        # < This is your Management NKE cluster
   nutanix_karbon_cluster.dev-cluster        # < This is your Dev NKE cluster


Adding NodePool with GPU

In this section we will create a nodepool to host the AI apps with a GPU.

Note

At this time there is no tofu support for creating a nodepool with GPU parameters. We will use NKE's karbonctl tool. Once tofu nodepool resource is updated with gpu parameters, we will update this section.

It is necessary to connect to Prism Central (PC) to be able to access the karbonctl tool.

1. Login to the ssh session of PC

   ssh -l admin pc.example.com


2. Login to NKE control plane using karbonctl tool

   alias karbonctl=/home/nutanix/karbon/karbonctl
   karbonctl login --pc-username admin


3. Check the number of available GPUs for Dev NKE cluster

   karbonctl cluster gpu-inventory list --cluster-name dev-cluster


   Command execution

   PCVM:~$ karbonctl cluster gpu-inventory list --cluster-name dev-cluster
   Name            Total Count    Assignable Count
   Lovelace 40S    8              2


4. Create a new gpu nodepool and assing it 1 GPU

   karbonctl cluster node-pool add --cluster-name dev-cluster --count 2 --cpu 12 --memory 40 --disk-size 300 --gpu-count 1 --gpu-name "Lovelace 40S" --node-pool-name gpu


   Command execution

   PCVM:~$ karbonctl cluster node-pool add --cluster-name dev-cluster --count 2 --cpu 12 --memory 40 ---disk-size 300 -gpu-count 1 --gpu-name "Lovelace 40S" --node-pool-name gpu

   I acknowledge that GPU enablement requires installation of NVIDIA datacenter driver software governed by NVIDIA licensing terms. Y/[N]:Y

   Successfully submitted request to add a node pool: [POST /karbon/v1-alpha.1/k8s/clusters/{name}/add-node-pool][202] addK8sClusterNodePoolAccepted  &{TaskUUID:0xc001168e50}


5. Monitor PC tasks to confirm creation on VM and allocation of GPU to the VM

6. Once nodepool is created, go to PC > Kubernetes Management > dev-cluster > Node Pools and select gpu nodepool

7. Click on update in the drop-down menu

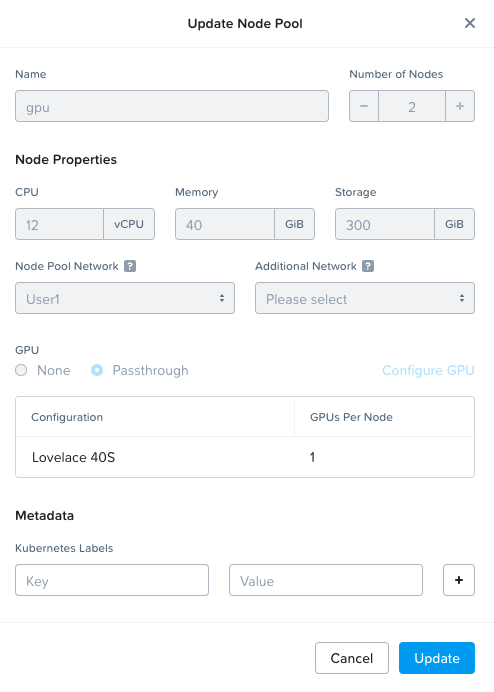

8. You should see that one GPU is assigned to node pool



We now have a node that can be used to deploy AI applications and use the GPU.
