Pre-requisites for Deploying NAI

In this part of the lab we will prepare pre-requisites for LLM application on GPU nodes.

The following is the flow of the applications lab:

stateDiagram-v2
    direction LR

    state PreRequisites {
        [*] --> CreateFilesShare
        CreateFilesShare --> PrepareHuggingFace
        PrepareHuggingFace --> [*]
    }


    [*] --> PreRequisites
    PreRequisites --> DeployNAI : next section
    DeployNAI --> TestNAI
    TestNAI --> [*]

Prepare the following pre-requisites needed to deploy NAI on target kubernetes cluster.

Create Nutanix Files Storage Class

We will create Nutanix Files storage class which will be used to create a pvc that will store the LLama-3-8B model files.

  1. Run the following command to check K8S status of the nkpdev cluster

    kubectx ${NKP_CLUSTER_NAME}-admin@${NKP_CLUSTER_NAME}
kubectl get nodes

  2. Add (append) the following environment variable to $HOME/nkp/.env file

    export FILES_CREDENTIALS_STRING='_prism_element_ip_addres:9440:admin:_your_password'

    export FILES_CREDENTIALS_STRING='10.x.x.37:9440:admin:password'

  3. Source the .env file to load the latest $FILES_CREDENTIALS_STRING environment variable

    source $HOME/.env

  4. Create a secret for Nutanix Files CSI Driver

    kubectl create secret generic nutanix-csi-credentials-files \
-n ntnx-system --from-literal=key=${FILES_CREDENTIALS_STRING} \
--dry-run -o yaml | kubectl apply -f -

  5. In VSC Explorer, click on New File and create a config file with the following name:

    nai-nfs-storage.yaml

    Add the following content and replace the nfsServerName with the name of the Nutanix Files server name .

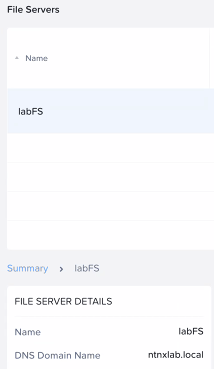

    Finding nfsServerName and nfsServer fqdn

    kind: StorageClass
apiVersion: storage.k8s.io/v1
metadata:
    name: nai-nfs-storage
provisioner: csi.nutanix.com
parameters:
  dynamicProv: ENABLED
  nfsServerName: _your_nutanix_files_server_name
  nfsServer: _your_nutanix_files_server_fqdn
  csi.storage.k8s.io/provisioner-secret-name: nutanix-csi-credentials-files
  csi.storage.k8s.io/provisioner-secret-namespace: ntnx-system
  csi.storage.k8s.io/node-publish-secret-name: nutanix-csi-credentials-files
  csi.storage.k8s.io/node-publish-secret-namespace: ntnx-system
  csi.storage.k8s.io/controller-expand-secret-name: nutanix-csi-credentials-files
  csi.storage.k8s.io/controller-expand-secret-namespace: ntnx-system
  storageType: NutanixFiles
allowVolumeExpansion: true

    kind: StorageClass
apiVersion: storage.k8s.io/v1
metadata:
    name: nai-nfs-storage
provisioner: csi.nutanix.com
parameters:
  dynamicProv: ENABLED
  nfsServerName: labFS
  nfsServer: labFS.ntnxlab.local
  csi.storage.k8s.io/provisioner-secret-name: nutanix-csi-credentials-files
  csi.storage.k8s.io/provisioner-secret-namespace: ntnx-system
  csi.storage.k8s.io/node-publish-secret-name: nutanix-csi-credentials-files
  csi.storage.k8s.io/node-publish-secret-namespace: ntnx-system
  csi.storage.k8s.io/controller-expand-secret-name: nutanix-csi-credentials-files
  csi.storage.k8s.io/controller-expand-secret-namespace: ntnx-system
  storageType: NutanixFiles
allowVolumeExpansion: true

  6. Create the storage class

    kubectl apply -f nai-nfs-storage.yaml

  7. Check storage classes in the cluster for the Nutanix Files storage class

    kubectl get storageclass

    kubectl get storageclass

NAME                       PROVISIONER                     RECLAIMPOLICY   VOLUMEBINDINGMODE      ALLOWVOLUMEEXPANSION   AGE
dkp-object-store           kommander.ceph.rook.io/bucket   Delete          Immediate              false                  28h
nai-nfs-storage            csi.nutanix.com                 Delete          Immediate              true                   24h
nutanix-volume (default)   csi.nutanix.com                 Delete          WaitForFirstConsumer   false                  28h

Request Access to Model on Hugging Face

Follow these steps to request access to the meta-llama/Meta-Llama-3.1-8B-Instruct model:

LLM Recommendation

From testing google/gemma-2-2b-it model is quicker to download and obtain download rights, than meta-llama/Meta-Llama-3.1-8B-Instruct model.

Feel free to use the google/gemma-2-2b-it model if necessary. The procedure to request access to the model is the same.

  1. Sign in to your Hugging Face account:

  2. Navigate to the model page:

  3. Request access:

    • On the model page, you will see a section or button labeled Request Access (this is usually near the top of the page or near the "Files and versions" section).
    • Click Request Access.

  4. Complete the form:

    • You may be prompted to fill out a form or provide additional details about your intended use of the model.
    • Complete the required fields and submit the request.

  5. Wait for approval:

    • After submitting your request, you will receive a notification or email once your access is granted.
    • This process can take some time depending on the approval workflow.

Once access is granted, there will be an email notification.

Note

Email from Hugging Face can take a few minutes or hours before it arrives.

Create a Hugging Face Token with Read Permissions

Follow these steps to create a Hugging Face token with read permissions:

  1. Sign in to your Hugging Face account:

  2. Access your account settings:

    • Click on your profile picture in the top-right corner.
    • From the dropdown, select Settings.

  3. Navigate to the "Access Tokens" section:

    • In the sidebar, click on Access Tokens.
    • You will see a page where you can create and manage tokens.

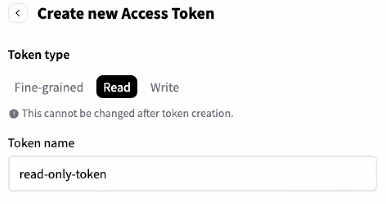

  4. Create a new token:

    • Click the New token button.
    • Enter a name for your token (i.e., read-only-token).

  5. Set token permissions:

    • Under the permissions dropdown, select Read. For Example: hf-token

  6. Create and copy the token:

    • After selecting the permissions, click Create.
    • Your token will be generated and displayed only once, so make sure to copy it and store it securely.

Use this token for accessing Hugging Face resources with read-only permissions.
