Replicating and Recovering Application

In this section we will deploy a sample workload, snapshot the Application components and recover.

  1. Same namespace recovery
  2. Cross namespace recovery

Deploying a Sample Application

  1. On VSCode menu, select Terminal > New Terminal

  2. Browse to ndk directory

    cd $HOME/ndk

  3. Source the .env file

    source .env

  4. Change to default namespace

    kubens default

  5. Create a stateful workload

    kubectl apply -f - <<EOF
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  labels:
    app: app1
  name: az-claim-1
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 1Gi
EOF
kubectl apply -f - <<EOF
apiVersion: v1
kind: Pod
metadata:
  name: app-1
  labels:
    app: app1
spec:
  containers:
  - name: app
    image: docker.io/library/busybox:1.36.1
    command: ["/bin/sh"]
    args: ["-c", "while true; do echo $(date -u) ; sleep 5; done"]
    volumeMounts:
    - name: persistent-storage
      mountPath: /data
  volumes:
  - name: persistent-storage
    persistentVolumeClaim:
      claimName: az-claim-1
EOF

  6. Watch the workload components until they are running

    kubectl get po,pvc -l app=app1

    NAME        READY   STATUS    RESTARTS   AGE
pod/app-1   1/1     Running   0          2m

NAME                               STATUS   VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS     VOLUMEATTRIBUTESCLASS   AGE
persistentvolumeclaim/az-claim-1   Bound    pvc-f2d77c96-d2e4-42b3-b3d6-aa828f9e45e6   1Gi        RWO            nutanix-volume   <unset>                 2m

  7. Once the pvc and pod are running, inject some data into the persistent storage

    kubectl exec -it app-1 -- /bin/sh -c 'for i in $(seq 1 10000); do echo "foobar" >> /data/abc.txt;done'

Now we have a stateful workload which we can replicate and recover using NDK

NDK Recover to the Same Namespace

Tip

NDK uses labels to select kubernetes resources to act upon.

  1. Define a NDK Application custom resource to replicate our deployed application with label app1

    kubectl apply -f - <<EOF
apiVersion: dataservices.nutanix.com/v1alpha1
kind: Application
metadata:
  name: app-1
spec:
  applicationSelector:                      # Note if left blank, it will include all resources in the namespace
    resourceLabelSelectors:
    - labelSelector:
        matchLabels:
          app: app1
EOF

  2. Take a local cluster snapshot of the app1 application

    k apply -f - <<EOF
apiVersion: dataservices.nutanix.com/v1alpha1
kind: ApplicationSnapshot
metadata:
  name: app1-snap
spec:
  source:
    applicationRef:
      name: app-1                           # This is Application reference for the snapshot operation
  expiresAfter:  48h
EOF

  3. View the progress

    kubectl get applicationsnapshot -w

    kubectl describe applicationsnapshot.dataservices.nutanix.com/app1-snap

    Wait until the status of snapshot becomes true
    $ k get applicationsnapshot -w

NAME        AGE   READY-TO-USE   BOUND-SNAPSHOTCONTENT                      SNAPSHOT-AGE
app1-snap   11s   false          asc-8af85cca-3da7-468c-96fb-db54ec2cf940
app1-snap   37s   true           asc-8af85cca-3da7-468c-96fb-db54ec2cf940   36s
    Observe the Application components that are included and status
    Name:         app1-snap
Namespace:    default

API Version:  dataservices.nutanix.com/v1alpha1
Kind:         ApplicationSnapshot
Metadata:
  Creation Timestamp:  2025-07-08T01:34:41Z

Spec:
  Expires After:  48h0m0s
  Source:
    Application Ref:
      Name:  app-1
Status:
  Bound Application Snapshot Content Name:  asc-3c1e253a-266d-46fd-8559-d8aa189fea78
  Creation Time:                            2025-07-08T01:35:13Z
  Expiration Time:                          2025-07-10T01:35:13Z
  Ready To Use:                             true
  Summary:
    Snapshot Artifacts:
      cilium.io/v2/CiliumEndpoint:
        Name:  app-1
      v1/PersistentVolumeClaim:
        Name:  az-claim-1
      v1/Pod:
        Name:  app-1
Events:
  Type    Reason                   Age    From  Message
  ----    ------                   ----   ----  -------
  Normal  AcquireAppConfigWaiting  2m47s  NDK   ApplicationSnapshotContent's app config acquisition is waiting to be processed
  Normal  VolumeSnapshotWaiting    2m45s  NDK   ApplicationSnapshotContent's volume snapshot phase is waiting to be processed
  Normal  FinalizeSnapshotWaiting  2m16s  NDK   ApplicationSnapshotContent's finalize phase is waiting to be processed

    Relationship between NDK custom resources

    We can observe that the ApplicationSnapshot and ApplicationSnapshotContent NDK custom resources are related.

    ApplicationSnapshotContent also shows the Nutanix infrastructure components of the ApplicationSnapshot custom resources such as Nutanix volumes.

    Refer to the highlighted parts in the following command output.

    kubectl get ApplicationSnapshot

NAMESPACE   NAME        AGE     READY-TO-USE   BOUND-SNAPSHOTCONTENT                      SNAPSHOT-AGE
default     app1-snap   4h33m   true           asc-8af85cca-3da7-468c-96fb-db54ec2cf940   4h33m

    kubectl get ApplicationSnapshotContent -oyaml

apiVersion: v1
items:
- apiVersion: dataservices.nutanix.com/v1alpha1
  kind: ApplicationSnapshotContent
  metadata:
    creationTimestamp: "2025-07-08T02:00:06Z"
    finalizers:
    - dataservices.nutanix.com/app-snap
    - dataservices.nutanix.com/app-snap-content
    generation: 1
    name: asc-8af85cca-3da7-468c-96fb-db54ec2cf940
    resourceVersion: "7484635"
    uid: 9ed65107-b400-4d75-9acd-c0a7a0aede81
  spec:
    applicationSnapshotRef:
      name: app1-snap
      namespace: default
    source:
      applicationRef:
        name: app-1
        namespace: default
  status:
    applicationSnapshotSummary:
      applicationSnapshotHandle:
        name: asc-8af85cca-3da7-468c-96fb-db54ec2cf940
      volumeClaimHandleMap:
        az-claim-1: NutanixVolumes-0d77026f-f513-4b20-4c4f-822d31e0c4d4
      volumeSnapshotHandleMap:
        NutanixVolumes-0d77026f-f513-4b20-4c4f-822d31e0c4d4: 5acbcd9e-fde3-4fe5-aabd-11a4b080a044:ea8518bb-3453-4748-bbd0-713eb9358c5b

  4. The NDK controller manager will also have logs of the snapshot operation. This will be useful for troubleshooting purposes

    kubectl logs -f -n ntnx-system deploy/ndk-controller-manager

    $ kubectl logs -f -n ntnx-system deploy/ndk-controller-manager

{"level":"info","timestamp":"2025-07-08T01:35:12.909Z","caller":"applicationsnapshotcontent/asc_finalize.go:38","msg":"resource regulated: ApplicationSnapshotContent's finalize phase is waiting to be processed","controller":"applicationsnapshotcontent","controllerGroup":"dataservices.nutanix.com","controllerKind":"ApplicationSnapshotContent","ApplicationSnapshotContent":{"name":"asc-3c1e253a-266d-46fd-8559-d8aa189fea78"},"namespace":"","name":"asc-3c1e253a-266d-46fd-8559-d8aa189fea78","reconcileID":"a0cf1641-40d7-4d51-b948-10cf9bae84e0","requestId":"7566b4fa-0eda-4ffd-b34e-76daf2311148"}

{"level":"info","timestamp":"2025-07-08T01:35:13.381Z","caller":"utils/controller.go:36","msg":"Ensuring finalizer on objects","controller":"applicationsnapshot","controllerGroup":"dataservices.nutanix.com","controllerKind":"ApplicationSnapshot","ApplicationSnapshot":{"name":"app1-snap","namespace":"default"},"namespace":"default","name":"app1-snap","reconcileID":"5af23527-5d34-4992-ab02-99ba4af2a401","finalizer":"dataservices.nutanix.com/app-snap-2a003355dcfd33a75426095a4a71154b"}

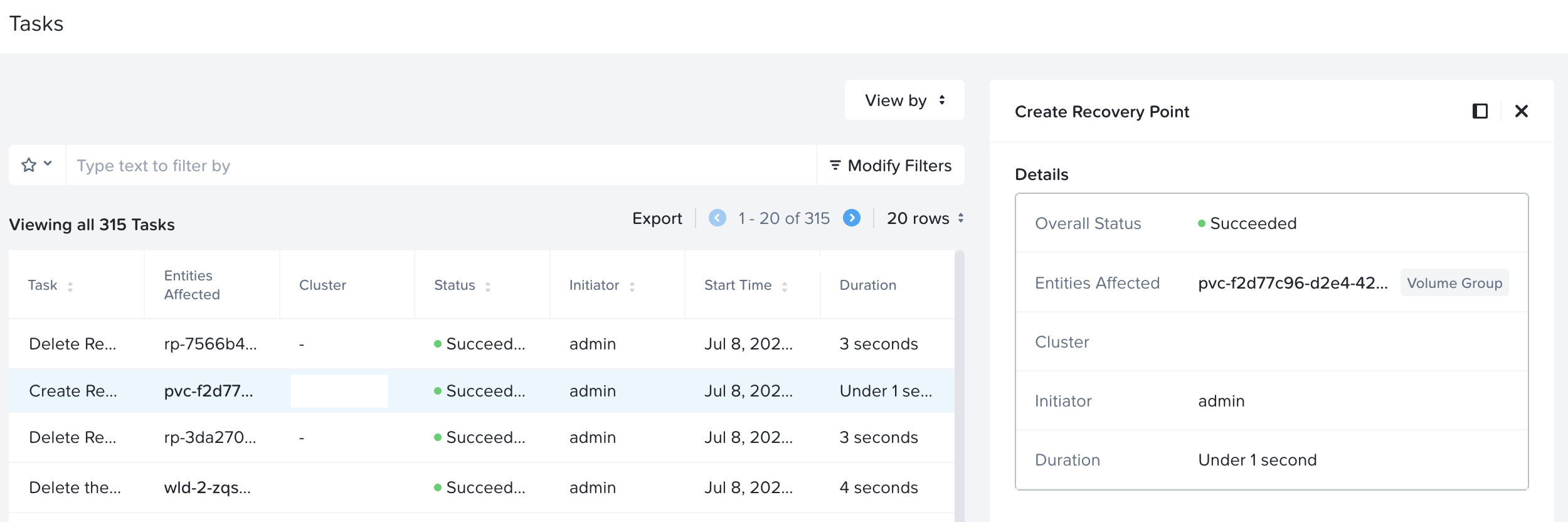

  5. Observe the event Create Recovery Point operation in Prism Central

  6. Delete the app to simulate a failure

    kubectl delete po,pvc -l app=app1 --force

  7. Restore the app from applicationSnapshot custom resource

    kubectl apply -f - <<EOF
apiVersion: dataservices.nutanix.com/v1alpha1
kind: ApplicationSnapshotRestore
metadata:
  name: app1-restore
spec:
  applicationSnapshotName: app1-snap
EOF

    kubectl get applicationsnapshotrestore.dataservices.nutanix.com/app1-restore -w


    applicationsnapshotrestore.dataservices.nutanix.com/app1-restore created
    Wait until the status of snapshot becomes true
    kubectl get applicationsnapshotrestore.dataservices.nutanix.com/app1-restore -w

NAME           SNAPSHOT-NAME   COMPLETED
app1-restore   app1-snap       false
app1-restore   app1-snap       false
app1-restore   app1-snap       false
app1-restore   app1-snap       true

  8. Monitor the progress of ApplicationSnapshotRestore custom resource

    kubectl get applicationsnapshotrestore.dataservices.nutanix.com/app1-restore -w
    Wait until the status of restore becomes true
    kubectl get applicationsnapshotrestore.dataservices.nutanix.com/app1-restore -w

NAME           SNAPSHOT-NAME   COMPLETED
app1-restore   app1-snap       false
app1-restore   app1-snap       false
app1-restore   app1-snap       false
app1-restore   app1-snap       true

  9. Verify if app1 pvc and pod are restored

    kubectl get po,pvc -l app=app1

    $  kubectl get po,pvc -l app=app1

NAME        READY   STATUS    RESTARTS   AGE
pod/app-1   1/1     Running   0          4m53s

NAME                               STATUS   VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS     VOLUMEATTRIBUTESCLASS   AGE
persistentvolumeclaim/az-claim-1   Bound    pvc-55a6b812-35de-4db2-b0e1-8a55e1b4e41f   4Gi        RWO            nutanix-volume   <unset>                 5m54s

  10. Check if data is present within the data mount /data inside the pod

    kubectl exec -it app-1 -- /bin/sh -c "wc -l /data/abc.txt"

    kubectl exec -it app-1 -- /bin/sh -c "wc -l /data/abc.txt"
10000 /data/abc.txt

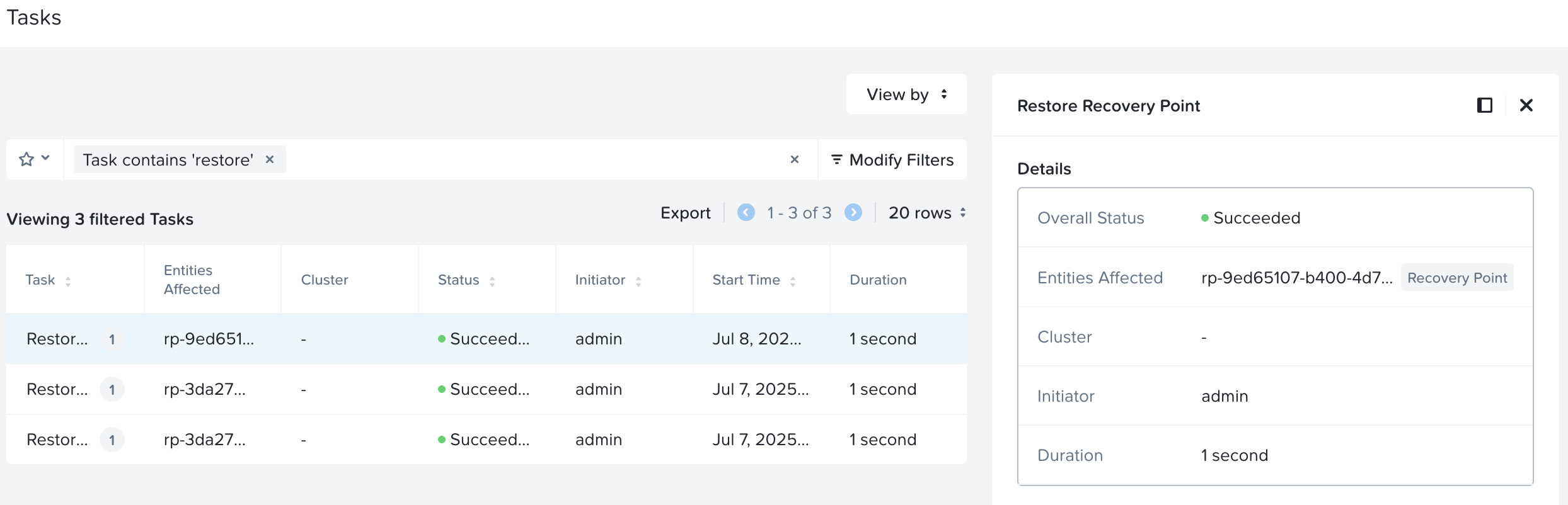

  11. Observe the event Restore Recovery Point operation in Prism Central

Cross Namespace Recovery

NDK offers cross-namespace recovery capabilites. With this NKP or any supported K8s platform administrator can recover applicationSnapshot custom resource to a different namespace within the same K8s cluster.

  1. Create a referenceGrant resouce to grant permission to restore specific application snapshots from one namespace to another.

    kubectl apply -f - <<EOF
apiVersion: gateway.networking.k8s.io/v1beta1
kind: ReferenceGrant
metadata:
  name: _reference_grant_name
  namespace: _source_namespace
spec:
  from:
  - group: dataservices.nutanix.com
    kind: ApplicationSnapshotRestore
    namespace: _target_namespace
  to:
  - group: dataservices.nutanix.com
    kind: ApplicationSnapshot
    name: _appplication_snapshot_name
EOF

    kubectl apply -f - <<EOF
apiVersion: gateway.networking.k8s.io/v1beta1
kind: ReferenceGrant
metadata:
  name: cross-ns-rg
  namespace: default
spec:
  from:
  - group: dataservices.nutanix.com
    kind: ApplicationSnapshotRestore
    namespace: restore
  to:
  - group: dataservices.nutanix.com
    kind: ApplicationSnapshot
    name: app1-snap
EOF

    referencegrant.gateway.networking.k8s.io/cross-ns-rg created

  2. Create a target namespace

    kubectl create namespace restore
kubend restore

    namespace/restore created

Context "nkplb-admin@nkplb" modified.
Active namespace is "restore".

  3. Create and applicationSnapshotRestore custom resource to restore to target restore namespace

    kubectl apply -f - <<EOF
apiVersion: dataservices.nutanix.com/v1alpha1
kind: ApplicationSnapshotRestore
metadata:
 name: _restore-snapshot-name
 namespace: _target_namespace
spec:
 applicationSnapshotName: _snapshot_name
 applicationSnapshotNamespace: _snapshot_source_namespace
EOF

    kubectl apply -f - <<EOF
apiVersion: dataservices.nutanix.com/v1alpha1
kind: ApplicationSnapshotRestore
metadata:
 name: cross-ns-asr
 namespace: restore
spec:
 applicationSnapshotName: app1-snap
 applicationSnapshotNamespace: default
EOF

  4. Monitor the progress of ApplicationSnapshotRestore custom resource

    kubectl describe applicationsnapshotrestore.dataservices.nutanix.com/cross-ns-asr

    kubectl get applicationsnapshotrestore.dataservices.nutanix.com/app1-restore -w

    Wait until the status of ApplicationSnapshotRestore custom resource is true
    Name:         cross-ns-asr
Namespace:    restore

API Version:  dataservices.nutanix.com/v1alpha1
Kind:         ApplicationSnapshotRestore
Metadata:
Creation Timestamp:  2025-07-08T05:40:31Z
Finalizers:
    dataservices.nutanix.com/application-restore
Generation:        1
Resource Version:  7484636

Spec:
Application Snapshot Name:       app1-snap
Application Snapshot Namespace:  default
Status:
Completed:  true

Conditions:
    Last Transition Time:  2025-07-08T05:40:31Z
    Message:
    Observed Generation:   1
    Reason:                RequestCompleted
    Status:                False
    Type:                  Progressing
    Last Transition Time:  2025-07-08T05:40:31Z
    Message:               All prechecks passed and finalizers on dependent resources set
    Observed Generation:   1
    Reason:                PrechecksPassed
    Status:                True
    Type:                  PrechecksPassed
    Last Transition Time:  2025-07-08T05:40:31Z
    Message:               Restore requests for all eligible volumes submitted
    Observed Generation:   1
    Reason:                VolumeRestoreRequestsSubmitted
    Status:                True
    Type:                  VolumeRestoreRequestsSubmitted
    Last Transition Time:  2025-07-08T05:41:32Z
    Message:               All eligible application configs restored
    Observed Generation:   1
    Reason:                ApplicationConfigRestored
    Status:                True
    Type:                  ApplicationConfigRestored
    Last Transition Time:  2025-07-08T05:41:47Z
    Message:               All eligible volumes restored
    Observed Generation:   1
    Reason:                VolumesRestored
    Status:                True
    Type:                  VolumesRestored
    Last Transition Time:  2025-07-08T05:41:47Z
    Message:               Application restore successfully finalised
    Observed Generation:   1
    Reason:                ApplicationRestoreFinalised
    Status:                True
    Type:                  ApplicationRestoreFinalised
Finish Time:             2025-07-08 05:41:47
Start Time:              2025-07-08 05:40:31

    kubectl get applicationsnapshotrestore/cross-ns-asr -w
NAME           SNAPSHOT-NAME   COMPLETED
cross-ns-asr   app1-snap       true

  5. Verify if app1 pvc and pod are restored

    kubectl get po,pvc -l app=app1

    $  kubectl get po,pvc -l app=app1

NAME        READY   STATUS    RESTARTS   AGE
pod/app-1   1/1     Running   0          4m53s

NAME         STATUS   VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS     VOLUMEATTRIBUTESCLASS   AGE
az-claim-1   Bound    pvc-9471ed41-64cb-4d57-bc62-fe94d9a3f672   1Gi        RWO            nutanix-volume   <unset>                 119s

  6. Check if data is present within the data mount /data inside the pod

    kubectl exec -it app-1 -- /bin/sh -c "wc -l /data/abc.txt"

    kubectl exec -it app-1 -- /bin/sh -c "wc -l /data/abc.txt"
10000 /data/abc.txt

We have now successfully restored our application accross namespaces.
