Recovering Application within the same K8S Cluster

In this section we will deploy a sample workload, snapshot the Application components and recover.

Pre-requisites

1. Nutanix Files Server Access for Dynamic Files SC
2. Prism Element Access for Volumes SC

Design

In this lab, we will be replicating an application (workload) from one NKP cluster to another NKP cluster in the same Nutanix PC/PE environment.

There is one NKP cluster hosting the workload.

We will simulate a restore process.

The workload stores data in both Volumes and Dynamic Files CSI.

#	PC	PE	NKP Cluster	Files Server	K8S Namespace
Source	PC-1	PE-1	nkpprimary	filesprimary	wordpress
Destination	PC-1	PE-1	nkpprimary	filesprimary	wordpress

stateDiagram-v2
    direction LR
    State PC-1 {
       State PE-1_FilesPrimary {
             %% Start point within the lifecycle container
             [*] --> Wordpress_App

             state Wordpress_App {
                 [*] --> Wordpress
                 Wordpress --> Volumes(RWO) : MYSQL Storage
                 Wordpress --> Files(RWX)  : Front-end Storage
             }

             state NDK_Snapshot {
                 Snapshot_Running --> Snapshot_Complete : Saving snapshot of Wordpress_App PVCs
             }

             state Disaster_Event {
                 System_Failure : Outage/Corruption
             }

             state NDK_Restore {
                 Restore_Process : Using latest snapshot
                 Restore_Process --> Wordpress_Resources   : Restore
             }

             %% Define the flow inside the System_Lifecycle
             Wordpress_App --> NDK_Snapshot : Snapshot initiated
             NDK_Snapshot --> Wordpress_App : Snapshot successful

             Wordpress_App --> Disaster_Event : Simulate system failure
             Disaster_Event --> NDK_Restore : Initiate restore
             NDK_Restore --> Wordpress_App : Restore complete

             %% End point for the entire lifecycle
             Wordpress_App --> [*] : App available
          }
    }

Deploying Storage Classes

In this section we will deploy Nutanix Volumes and Files based StorageClass for our application to use.

Volumes Storage Class

We will be using the Nutanix Volumes StorageClass (SC) to provide storage to our application.

NKP installs a Nutanix Volumes based storage class by default called nutanix-volumes.

Command Command output

kubectl get sc

~ ❯ kubectl get sc

NAME                           PROVISIONER       RECLAIMPOLICY   VOLUMEBINDINGMODE      ALLOWVOLUMEEXPANSION   AGE
nutanix-volume (default)       csi.nutanix.com   Delete          WaitForFirstConsumer   true                   35d

Need to create a separate Volumes StorageClass?

If a separate Nutanix volumes based StorageClass needs to deployed it can be done as follows:

1. Create a secret

   apiVersion: v1
   kind: Secret
   metadata:
     name: ntnx-pe-secret
     namespace: openshift-cluster-csi-drivers
   stringData:
     key: <Prism Element IP>:9440:<Prism Element UserName>:<Prism Element Password>    # << change this
     # example:
     # key: 10.38.2.37:9440:admin:password


2. Create a volumes storage class

   kind: StorageClass
   apiVersion: storage.k8s.io/v1
   metadata:
     name: custom-nutanix-volumes
     annotations:
       storageclass.kubernetes.io/is-default-class: "true"
   provisioner: csi.nutanix.com
   parameters:
     csi.storage.k8s.io/provisioner-secret-name: ntnx-pe-secret
     csi.storage.k8s.io/provisioner-secret-namespace: openshift-cluster-csi-drivers
     csi.storage.k8s.io/node-publish-secret-name: ntnx-pe-secret
     csi.storage.k8s.io/node-publish-secret-namespace: openshift-cluster-csi-drivers
     csi.storage.k8s.io/controller-expand-secret-name: ntnx-pe-secret
     csi.storage.k8s.io/controller-expand-secret-namespace: openshift-cluster-csi-drivers
     csi.storage.k8s.io/controller-publish-secret-name: ntnx-pe-secret
     csi.storage.k8s.io/controller-publish-secret-namespace: openshift-cluster-csi-drivers
     csi.storage.k8s.io/fstype: ext4
     storageContainer: default    # <<< Make sure this Storage Container is present in the Nutanix cluster
     storageType: NutanixVolumes
     #description: "description added to each storage object created by the driver"
     #hypervisorAttached: ENABLED
   allowVolumeExpansion: true
   reclaimPolicy: Delete


3. Modify environment specific volumes and apply both Secret and StorageClass resources.

Files Storage Class

We need to create a Dynamic Files based storage class for use with our application. Dynamically provisioned shares have one-to-one mapping with persistent volumes (PVs): each PV has a dedicated share for storage.

1. On VSCode menu, select Terminal > New Terminal

2. Browse to ndk directory

   Command

   cd $HOME/ndk


3. Source the .env file

   Command

   source .env


4. Get the following from PC GUI > Files for the Files server that needs to be used for pvc of Wordpress application

   • nfsServerName - display name of the Files server
   • nfsServer - FQDN of the Files server

5. Add (append) the following environment variables and save it

   Template .env Sample .env

   export NFS_SC_NAME=_files_storage_class_name
   export NFS_SERVER_NAME=_files_server_display_name
   export NFS_SERVER_FQDN=_files_server_fqdn


   export NFS_SC_NAME=nutanix-files-dynamic
   export NFS_SERVER_NAME=filesprimary
   export NFS_SERVER_FQDN=filesprimary.example.com


6. Create a dynamic Files StorageClass

   Command Sample command Command output

   kubectl apply -f -<<EOF
   allowVolumeExpansion: true
   kind: StorageClass
   apiVersion: storage.k8s.io/v1
   metadata:
     name: $NFS_SC_NAME
   provisioner: csi.nutanix.com
   parameters:
     dynamicProv: ENABLED
    nfsServerName: $NFS_SERVER_NAME
     nfsServer: $NFS_SERVER_FQDn
     storageType: NutanixFiles
     squashType: none
   reclaimPolicy: Delete
   volumeBindingMode: Immediate
   EOF


   kubectl apply -f -<<EOF
   allowVolumeExpansion: true
   kind: StorageClass
   apiVersion: storage.k8s.io/v1
   metadata:
     name: nutanix-files-dynamic
   provisioner: csi.nutanix.com
   parameters:
     dynamicProv: ENABLED
     nfsServerName: filesprimary
     nfsServer: filesprimary.example.com
     storageType: NutanixFiles
     squashType: none
   reclaimPolicy: Delete
   volumeBindingMode: Immediate
   EOF


   storageclass.storage.k8s.io/nutanix-files-dynamic created


7. List and make a note of the Volumes and Files StorageClass names for use with next section

   Command Command output

   kubectl get sc


   ~ ❯ kubectl get sc

   NAME                           PROVISIONER       RECLAIMPOLICY   VOLUMEBINDINGMODE      ALLOWVOLUMEEXPANSION   AGE
   nutanix-volume (default)       csi.nutanix.com   Delete          WaitForFirstConsumer   true                   1d
   nutanix-files-dynamic          csi.nutanix.com   Delete          Immediate              true                   33d


Deploying Wordpress Application

1. On VSCode menu, select Terminal > New Terminal

2. Browse to ndk directory

   Command

   cd $HOME/ndk


3. Create a wordpress namespace

   Command

   kubectl create ns wordpress
   kubens wordpress


4. Create the MySQL workload file with Volumes RWO StorageClass

   MySQL Deployment YAML

   cat << EOF > mysql_deployment.yaml
   apiVersion: v1
   kind: Service
   metadata:
     name: wordpress-mysql
     namespace: wordpress
     labels:
       app: wordpress
   spec:
     ports:
       - port: 3306
     selector:
       app: wordpress
       tier: mysql
     clusterIP: None
   ---
   apiVersion: v1
   kind: PersistentVolumeClaim
   metadata:
     name: mysql-pv-claim
     namespace: wordpress
     labels:
       app: wordpress
   spec:
     accessModes:
     - ReadWriteOnce
     storageClassName: nutanix-volume
     resources:
       requests:
         storage: 2Gi
   ---
   apiVersion: apps/v1
   kind: Deployment
   metadata:
     name: wordpress-mysql
     namespace: wordpress
     labels:
       app: wordpress
   spec:
     selector:
       matchLabels:
         app: wordpress
         tier: mysql
     strategy:
       type: Recreate
     template:
       metadata:
         labels:
           app: wordpress
           tier: mysql
       spec:
         containers:
         - image: mysql:5.6
           name: mysql
           env:
           - name: MYSQL_ROOT_PASSWORD
             valueFrom:
               secretKeyRef:
                 name: mysql-pass
                 key: password
           ports:
           - containerPort: 3306
             name: mysql
           volumeMounts:
           - name: mysql-persistent-storage
             mountPath: /var/lib/mysql
         volumes:
         - name: mysql-persistent-storage
           persistentVolumeClaim:
             claimName: mysql-pv-claim
   EOF


5. Create the Wordpress workload file with Files RWX StorageClass

   Wordpress Deployment YAML

   cat << EOF > wordpress_deployment.yaml
   apiVersion: v1
   kind: Service
   metadata:
     name: wordpress
     namespace: wordpress
     labels:
       app: wordpress
   spec:
     ports:
       - port: 80
     selector:
       app: wordpress
       tier: frontend
     type: ClusterIP
   ---
   apiVersion: v1
   kind: PersistentVolumeClaim
   metadata:
     name: wp-pv-claim
     namespace: wordpress
     labels:
       app: wordpress
   spec:
     accessModes:
     - ReadWriteMany
     storageClassName: $NFS_SC_NAME
     resources:
       requests:
         storage: 2Gi
   ---
   apiVersion: apps/v1
   kind: Deployment
   metadata:
     name: wordpress
     namespace: wordpress
     labels:
       app: wordpress
   spec:
     selector:
       matchLabels:
         app: wordpress
         tier: frontend
     strategy:
       type: Recreate
     template:
       metadata:
         labels:
           app: wordpress
           tier: frontend
       spec:
         containers:
         - image: wordpress:4.8-apache
           name: wordpress
           env:
           - name: WORDPRESS_DB_HOST
             value: wordpress-mysql
           - name: WORDPRESS_DB_PASSWORD
             valueFrom:
               secretKeyRef:
                 name: mysql-pass
                 key: password
           ports:
           - containerPort: 80
             name: wordpress
           volumeMounts:
           - name: wordpress-persistent-storage
             mountPath: /var/www/html
         volumes:
         - name: wordpress-persistent-storage
           persistentVolumeClaim:
             claimName: wp-pv-claim
   EOF


6. Create kustomization file to specify MySQL password

   cat << EOF > kustomization.yaml
   secretGenerator:
   - name: mysql-pass
     literals:
     - password=_XXXXXXX            #<< Change to your preferred MYSQL password
   resources:
     - mysql_deployment.yaml
     - wordpress_deployment.yaml
   EOF


7. Apply the kustomization file to create Wordpress application

   CommandCommand output

   kubectl apply -k ./


   ~ ❯ kubectl apply -k ./
   #
   secret/mysql-pass-29km6tg2b5 created
   service/wordpress created
   service/wordpress-mysql created
   persistentvolumeclaim/mysql-pv-claim created
   persistentvolumeclaim/wp-pv-claim created
   deployment.apps/wordpress created
   deployment.apps/wordpress-mysql created


8. Watch the workload components until they are running

   Command Command output

   kubectl get all


   ~ ❯ kubectl get all
   #
   NAME                                   READY   STATUS    RESTARTS   AGE
   pod/wordpress-6bc48cbf79-862wm         1/1     Running   0          6m
   pod/wordpress-mysql-7bd9d456c5-hxjr7   1/1     Running   0          6m

   NAME                      TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)    AGE
   service/wordpress         ClusterIP   10.109.161.32   <none>        80/TCP     6m
   service/wordpress-mysql   ClusterIP   None            <none>        3306/TCP   6m

   NAME                              READY   UP-TO-DATE   AVAILABLE   AGE
   deployment.apps/wordpress         1/1     1            1           6m
   deployment.apps/wordpress-mysql   1/1     1            1           6m

   NAME                                         DESIRED   CURRENT   READY   AGE
   replicaset.apps/wordpress-6bc48cbf79         1         1         1       6m
   replicaset.apps/wordpress-mysql-7bd9d456c5   1         1         1       6m


Expose Wordpress App for External Access

We will use the Traefik Ingress Controller that comes with NKP to expose Wordpress app.

1. Get the IP address of the Traefik Ingress Controller (see ADDRESS Column)

   Command Sample Command

   kubectl get ingresses -A


   kubectl get ingresses --all-namespaces
   NAMESPACE             NAME                   CLASS               HOSTS   ADDRESS         PORTS   AGE
   kommander             kube-oidc-proxy        <none>              *       10.x.x.205      80      3h
   kommander             kubernetes-dashboard   kommander-traefik   *       10.x.x.205      80      3h
   kommander             traefik-forward-auth   <none>              *       10.x.x.205      80      3h


2. Use the IP in the following manifest and create an Ingress

   Command Sample Command Command output

   kubectl apply -f -<<EOF
   apiVersion: networking.k8s.io/v1
   kind: Ingress
   metadata:
     name: wordpress-app
     namespace: word
   spec:
     ingressClassName: kommander-traefik
     rules:
       - host: _your_wordpress_url
         http:
           paths:
             - path: /
               pathType: Prefix
               backend:
                 service:
                   name: wordpress
                   port:
                     number: 80
   EOF


   kubectl apply -f -<<EOF
   apiVersion: networking.k8s.io/v1
   kind: Ingress
   metadata:
     name: wordpress-app
     namespace: word
   spec:
     ingressClassName: kommander-traefik
     rules:
       - host: wordpress.10.x.x.205.nip.io
         http:
           paths:
             - path: /
               pathType: Prefix
               backend:
                 service:
                   name: wordpress
                   port:
                     number: 80
   EOF


   ingress.networking.k8s.io/wordpress-app created


   Populate Wordpress with Data

3. Login to the Wordpress app by using a browser with network connectivity to Ingress IP address

   wordpress.10.x.x.205.nip.io


4. Copy the URL and paste in a browser in your Mac/PC

5. You should see a configuration page

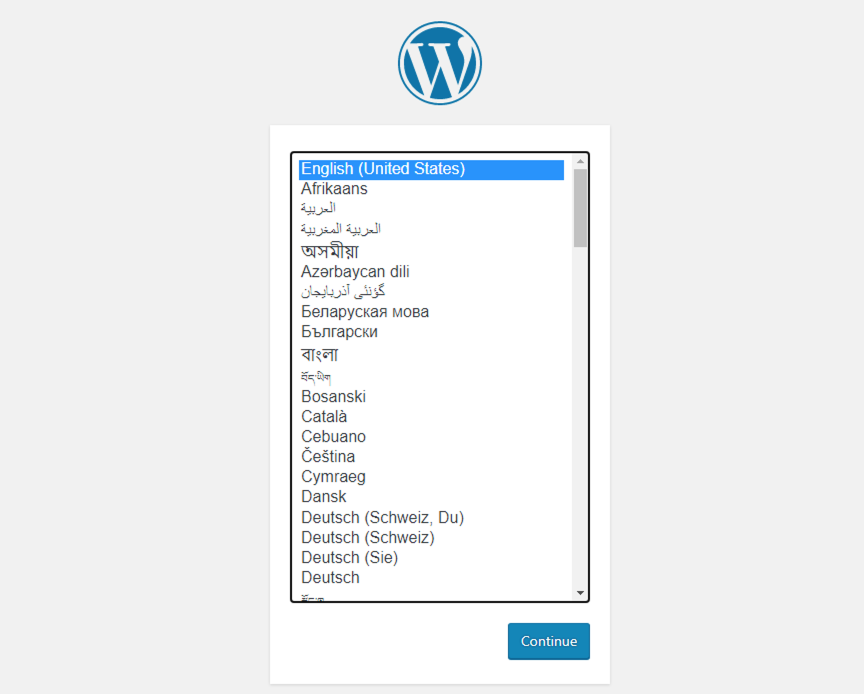

6. Select English - United States and click on Continue

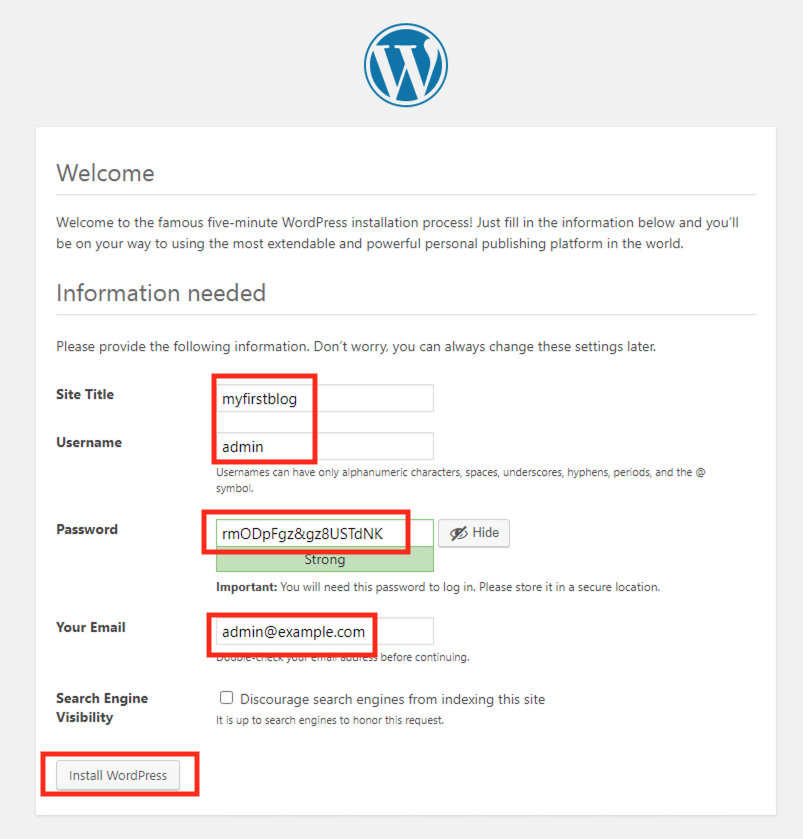

7. Fill in the following fields as shown in the figure below



8. Note the auto-generated password and copy it somewhere safe. You are also free to use your own password.

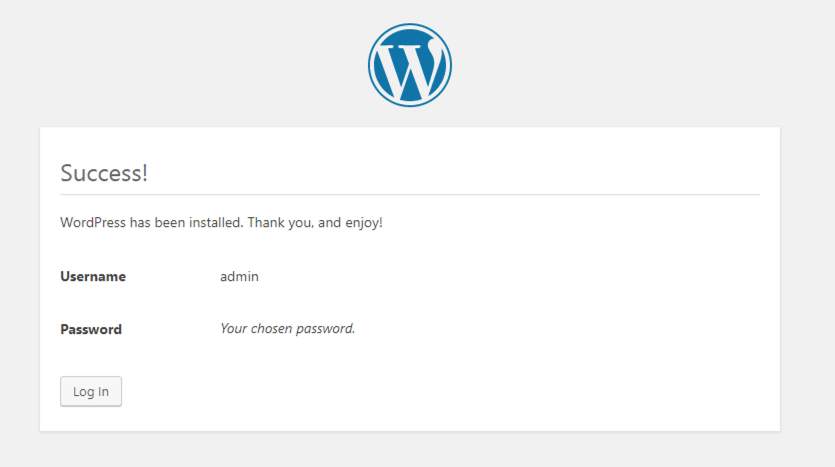

9. You should see a installation confirmation page



   You will get re-directed to login page

10. Login to the wordpress site using admin and the password you used to install wordpress application

11. You will see the wordpress administration page

12. Lets populate some data by creating a new admin user

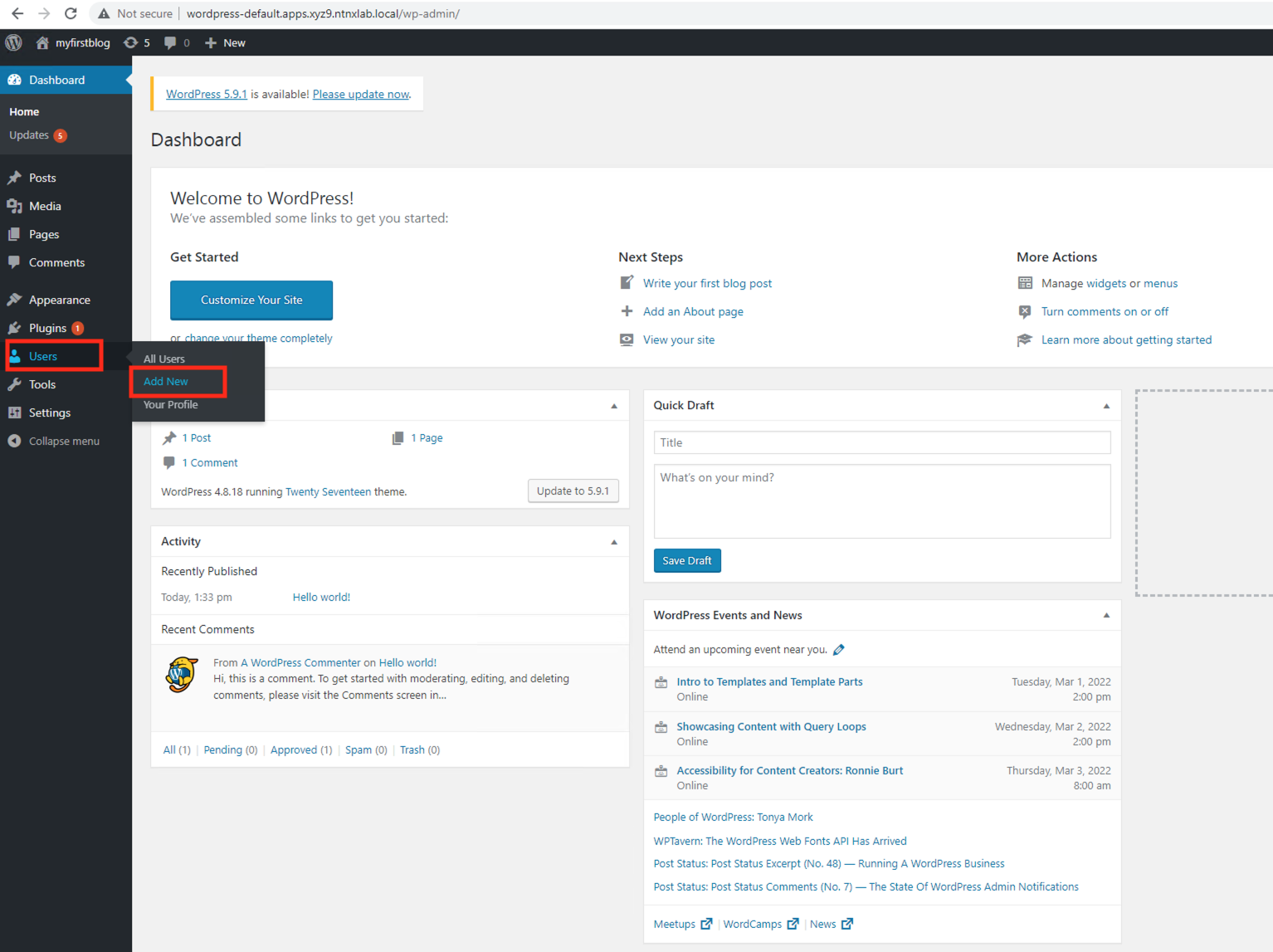

13. Click on Users > Add New

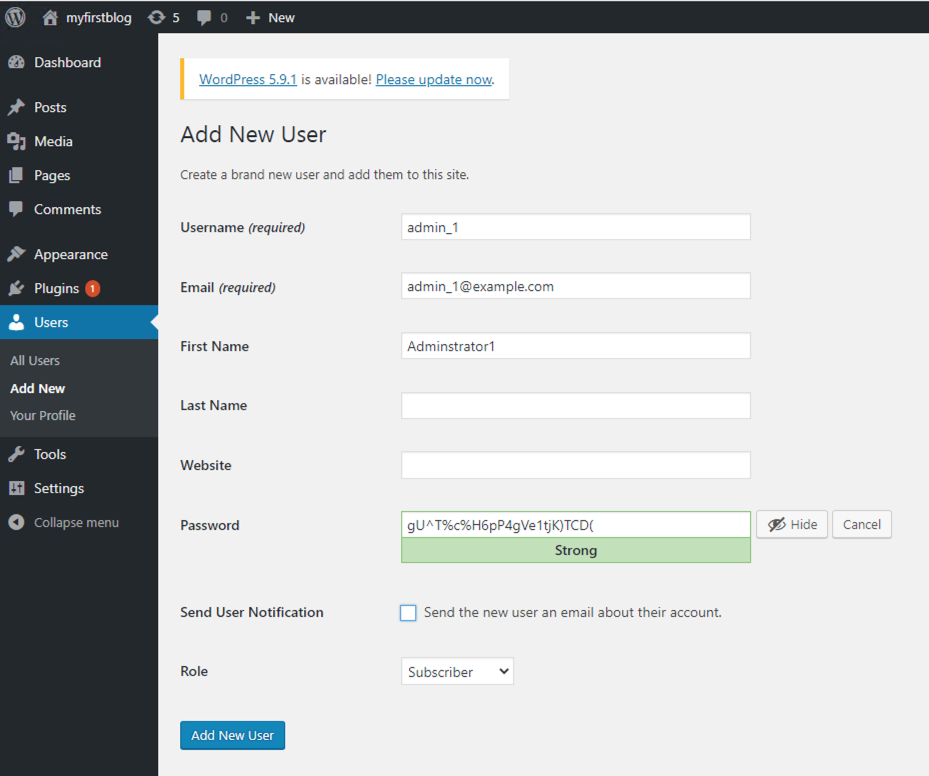

14. Fill in the following fields as shown in the figure below



15. Click on Add New User

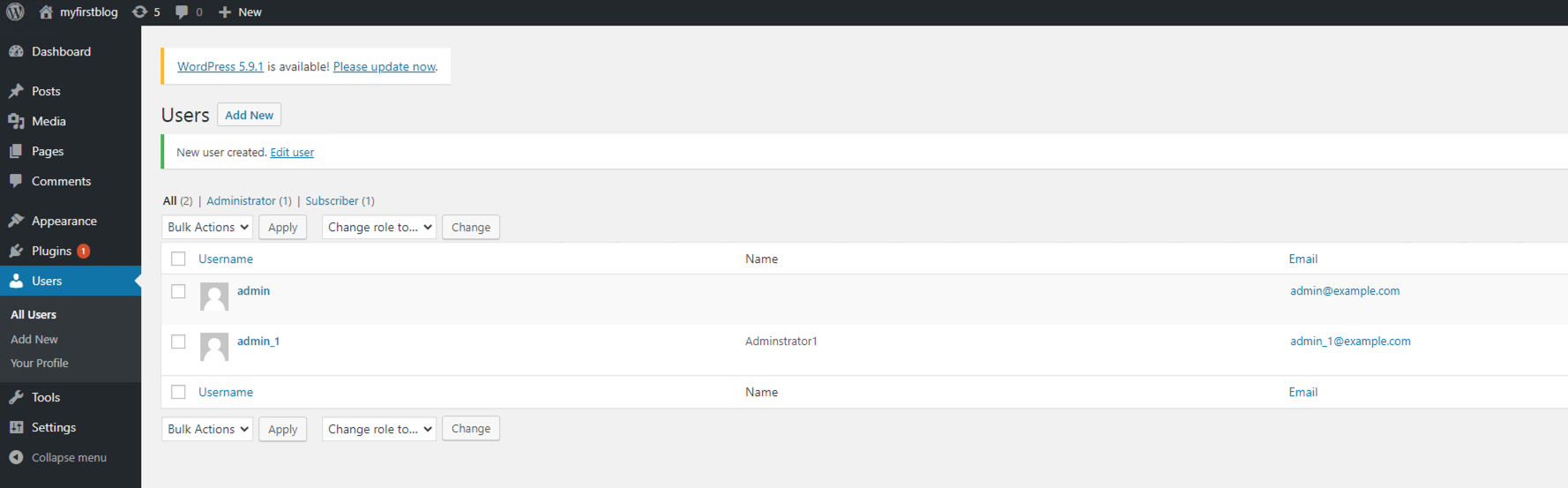

16. You will be able to see the list of users



You have successfully set up Wordpress application with mysql backend. In the next section we will take a snapshot and restore a deleted Wordpress user using Nutanix NDK.

NDK Snapshot and Recover to the Same Namespace

We will need to establish a relationship between Nutanix Files servers that we will be replicating to and from as we now have a RWX based Files share mounted as a pvc in the Wordpress app.

This FileServerReplicationRelationships resource will be used for snapshot replication for the shares that we will be replicating.

1. Add (append) the following environment variables and save it

   Template .env Sample .env

   export PRIMARY_FS_FQDN=_primary_files_server_fqdn
   export SECONDARY_FS_FQDN_secondary_files_server_fqdn


   export PRIMARY_FS_NAME=filesprimary.example.com
   export SECONDARY_FS_NAME=filessecondary.example.com


2. Source the .env file to load new environment variables

   source .env


3. Create a FileServerReplicationRelationships object on the primary NKP nkpprimary cluster

   kubectl apply -f -<<EOF
   apiVersion: dataservices.nutanix.com/v1alpha1
   kind: FileServerReplicationRelationships
   metadata:
     name: files-servers-fssr
   spec:
     remoteName: ndk-nutanix-secondary
     relationships:
       - primaryFileserverFQDN: $PRIMARY_FS_FQDN
         recoveryFileserverFQDN: $SECONDARY_FS_FQDN
   EOF


4. Define a NDK Application custom resource to take a snapshot of all the objects in wordpress namespace

   Command Command output

   k apply -f -<<EOF
   apiVersion: dataservices.nutanix.com/v1alpha1
   kind: Application
   metadata:
     name: wordpress-app
     namespace: wordpress
   spec:
     applicationSelector:                       # << Include all resources in the namespace.
   EOF


   application.dataservices.nutanix.com/wordpress-app created


5. Take a local cluster snapshot of the wordpress application

   Command Command output

   k apply -f -<<EOF
   apiVersion: dataservices.nutanix.com/v1alpha1
   kind: ApplicationSnapshot
   metadata:
     name: wordpress-app-snapshot
     namespace: wordpress
   spec:
     expiresAfter: "1h"
     source:
       applicationRef:
         name: wordpress-app
   EOF


   applicationsnapshot.dataservices.nutanix.com/wordpress-app-snapshot created


6. View the progress

   Command Command output

   Wait until the status of snapshot becomes true

   kubectl get applicationsnapshot -w


   Wait until the status of snapshot becomes true

   ~ ❯ kubectl get applicationsnapshot -w

   Name:         asc-0fecc22d-8b03-44ba-a2da-98d917eca3c3
   Namespace:
   Labels:       <none>
   Annotations:  dataservices.nutanix.com/deletion-in-progress: true
   API Version:  dataservices.nutanix.com/v1alpha1
   Kind:         ApplicationSnapshotContent
   Metadata:
     Creation Timestamp:             2025-12-03T07:50:01Z
     Deletion Grace Period Seconds:  0
     Deletion Timestamp:             2025-12-03T09:19:17Z
     Finalizers:
       dataservices.nutanix.com/app-snap-content
     Generation:        2
     Resource Version:  25048459
     UID:               486be529-4eab-4caf-9d20-b323b34cd388
   Spec:
     Application Snapshot Ref:
       Name:                       wordpress-app-snapshot
       Namespace:                  word
     Force Delete Files Snapshot:  false
     Source:
       Application Ref:
         Name:       wordpress-app
         Namespace:  word
   Status:
     Application Snapshot Summary:
       Application Snapshot Handle:
       Volume Claim Handle Map:
         Mysql - Pv - Claim:  NutanixVolumes-52acd508-9fb8-43b0-4fee-4629751d48fb
         Wp - Pv - Claim:     NutanixFiles-dynamic-OTE4NWIyZTctMDFhMi00ZmQyLTliNzQtOTljMjU1NzlmYmVi-pvc-5c603600-75aa-46b7-ba95-45853d0ce0f0
       Volume Snapshot Handle Map:
         NutanixFiles-dynamic-OTE4NWIyZTctMDFhMi00ZmQyLTliNzQtOTljMjU1NzlmYmVi-pvc-5c603600-75aa-46b7-ba95-45853d0ce0f0:  NutanixFiles-49559e6c-f066-4c5b-5ec0-409bf6a4d5eb:NutanixFiles-dynamic-OTE4NWIyZTctMDFhMi00ZmQyLTliNzQtOTljMjU1NzlmYmVi-pvc-5c603600-75aa-46b7-ba95-45853d0ce0f0
     Conditions:
       Last Transition Time:  2025-12-03T09:19:17Z
       Message:               Deleting volume snapshots
       Observed Generation:   2
       Reason:                DeletingVolumeSnapshots
       Status:                True
       Type:                  Progressing
       Last Transition Time:  2025-12-03T07:50:03Z
       Message:               completed acquiring application configuration
       Observed Generation:   1
       Reason:                AcquiredAppConfig
       Status:                True
       Type:                  AppConfigAcquired
       Last Transition Time:  2025-12-03T07:50:33Z
       Message:               created snapshots of persistent volumes
       Observed Generation:   1
       Reason:                VolumeSnapshotCreationSucceeded
       Status:                True
       Type:                  VolumeSnapshotsCreated
       Last Transition Time:  2025-12-03T07:50:33Z
       Message:               ApplicationSnapshot finalized and stored
       Observed Generation:   1
       Reason:                ApplicationSnapshotFinalized
       Status:                True
       Type:                  ApplicationSnapshotFinalized
     Consistency Type:        NoConsistencyGuarantee
     Creation Time:           2025-12-03T07:50:33Z
     Ready To Use:            false


7. Inspect the applicationSnapshotContent information to see if both Volumes and Files pvc are captured in the snapshot

   Command Command output

   kubectl get applicationsnapshot wordpress-app-snapshot


   ~ ❯ kubectl get applicationsnapshot wordpress-app-snapshot
   #
   NAME                     AGE     READY-TO-USE   BOUND-SNAPSHOTCONTENT                      SNAPSHOT-AGE   CONSISTENCY-TYPE
   wordpress-app-snapshot   22m     false          asc-0fecc22d-8b03-44ba-a2da-98d917eca3c3   22m            NoConsistencyGuarantee


   Relationship between NDK custom resources

   We can observe that the ApplicationSnapshot and ApplicationSnapshotContent NDK_Snapshot custom resources are related.

   ApplicationSnapshotContent also shows the Nutanix infrastructure components of the ApplicationSnapshot such as Nutanix Volumes and Files.

   Refer to the highlighted parts in the following command output.

   kubectl describe applicationsnapshotcontent asc-0fecc22d-8b03-44ba-a2da-98d917eca3c3


   ~ ❯ kubectl describe applicationsnapshotcontent asc-0fecc22d-8b03-44ba-a2da-98d917eca3c3
   #
   Name:         asc-0fecc22d-8b03-44ba-a2da-98d917eca3c3
   Namespace:
   Labels:       <none>
   Annotations:  dataservices.nutanix.com/deletion-in-progress: true
   API Version:  dataservices.nutanix.com/v1alpha1
   Kind:         ApplicationSnapshotContent
   Metadata:
     Creation Timestamp:             2025-12-03T07:50:01Z
     Deletion Grace Period Seconds:  0
     Deletion Timestamp:             2025-12-03T09:19:17Z
     Finalizers:
       dataservices.nutanix.com/app-snap-content
     Generation:        2
     Resource Version:  25048459
     UID:               486be529-4eab-4caf-9d20-b323b34cd388
   Spec:
     Application Snapshot Ref:
       Name:                       wordpress-app-snapshot
       Namespace:                  word
     Force Delete Files Snapshot:  false
     Source:
       Application Ref:
         Name:       wordpress-app
         Namespace:  word
   Status:
     Application Snapshot Summary:
       Application Snapshot Handle:
       Volume Claim Handle Map:
         Mysql - Pv - Claim:  NutanixVolumes-52acd508-9fb8-43b0-4fee-4629751d48fb
         Wp - Pv - Claim:     NutanixFiles-dynamic-OTE4NWIyZTctMDFhMi00ZmQyLTliNzQtOTljMjU1NzlmYmVi-pvc-5c603600-75aa-46b7-ba95-45853d0ce0f0
       Volume Snapshot Handle Map:
         NutanixFiles-dynamic-OTE4NWIyZTctMDFhMi00ZmQyLTliNzQtOTljMjU1NzlmYmVi-pvc-5c603600-75aa-46b7-ba95-45853d0ce0f0:  NutanixFiles-49559e6c-f066-4c5b-5ec0-409bf6a4d5eb:NutanixFiles-dynamic-OTE4NWIyZTctMDFhMi00ZmQyLTliNzQtOTljMjU1NzlmYmVi-pvc-5c603600-75aa-46b7-ba95-45853d0ce0f0
     Conditions:
       Last Transition Time:  2025-12-03T09:19:17Z
       Message:               Deleting volume snapshots
       Observed Generation:   2
       Reason:                DeletingVolumeSnapshots
       Status:                True
       Type:                  Progressing
       Last Transition Time:  2025-12-03T07:50:03Z
       Message:               completed acquiring application configuration
       Observed Generation:   1
       Reason:                AcquiredAppConfig
       Status:                True
       Type:                  AppConfigAcquired
       Last Transition Time:  2025-12-03T07:50:33Z
       Message:               created snapshots of persistent volumes
       Observed Generation:   1
       Reason:                VolumeSnapshotCreationSucceeded
       Status:                True
       Type:                  VolumeSnapshotsCreated
       Last Transition Time:  2025-12-03T07:50:33Z
       Message:               ApplicationSnapshot finalized and stored
       Observed Generation:   1
       Reason:                ApplicationSnapshotFinalized
       Status:                True
       Type:                  ApplicationSnapshotFinalized
     Consistency Type:        NoConsistencyGuarantee
     Creation Time:           2025-12-03T07:50:33Z
     Ready To Use:            true


8. The NDK_Snapshot controller manager will also have logs of the snapshot operation. This will be useful for troubleshooting purposes

   Command Command output

   kubectl logs -f -n ntnx-system deploy/ndk-controller-manager


   ~ ❯ kubectlubectl logs -f -n ntnx-system deploy/ndk-controller-manager

   {"level":"info","timestamp":"2025-07-08T01:35:12.909Z","caller":"applicationsnapshotcontent/asc_finalize.go:38","msg":"resource regulated: ApplicationSnapshotContent's finalize phase is waiting to be processed","controller":"applicationsnapshotcontent","controllerGroup":"dataservices.nutanix.com","controllerKind":"ApplicationSnapshotContent","ApplicationSnapshotContent":{"name":"asc-3c1e253a-266d-46fd-8559-d8aa189fea78"},"namespace":"","name":"asc-3c1e253a-266d-46fd-8559-d8aa189fea78","reconcileID":"a0cf1641-40d7-4d51-b948-10cf9bae84e0","requestId":"7566b4fa-0eda-4ffd-b34e-76daf2311148"}

   {"level":"info","timestamp":"2025-07-08T01:35:13.381Z","caller":"utils/controller.go:36","msg":"Ensuring finalizer on objects","controller":"applicationsnapshot","controllerGroup":"dataservices.nutanix.com","controllerKind":"ApplicationSnapshot","ApplicationSnapshot":{"name":"wordpress-app-snapshot","namespace":"default"},"namespace":"default","name":"wordpress-app-snapshot","reconcileID":"5af23527-5d34-4992-ab02-99ba4af2a401","finalizer":"dataservices.nutanix.com/app-snap-2a003355dcfd33a75426095a4a71154b"}


9. Observe the event Create Recovery Point operation in Prism Central



10. Delete the app to simulate a failure

    Command

    kubectl delete -k ./


11. Restore the app from applicationSnapshot custom resource

    Command Command Output

    kubectl apply -f - <<EOF
    apiVersion: dataservices.nutanix.com/v1alpha1
    kind: ApplicationSnapshotRestore
    metadata:
      name: wordpress-restore
    spec:
      applicationSnapshotName: wordpress-app-snapshot
    EOF


    applicationsnapshotrestore.dataservices.nutanix.com/wordpress-restore created


12. Monitor the progress of ApplicationSnapshotRestore custom resource

    Command Command Output

    kubectl get applicationsnapshotrestore.dataservices.nutanix.com/wordpress-restore -w


    Wait until the status of restore becomes true

    ~ ❯ kubectl get applicationsnapshotrestore.dataservices.nutanix.com/wordpress-restore -w

    NAME                SNAPSHOT-NAME                COMPLETED
    wordpress-restore   wordpress-app-snapshot       false
    wordpress-restore   wordpress-app-snapshot       false
    wordpress-restore   wordpress-app-snapshot       false
    wordpress-restore   wordpress-app-snapshot       true


13. Verify if Wordpress app resources (pod,pvc, etc) are restored

    Command Command Output

    kubectl get all


    ~ ❯ kubectl get all

    NAME                                   READY   STATUS    RESTARTS   AGE
    pod/wordpress-6bc48cbf79-862wm         1/1     Running   0          6m
    pod/wordpress-mysql-7bd9d456c5-hxjr7   1/1     Running   0          6m

    NAME                      TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)    AGE
    service/wordpress         ClusterIP   10.109.161.32   <none>        80/TCP     6m
    service/wordpress-mysql   ClusterIP   None            <none>        3306/TCP   6m

    NAME                              READY   UP-TO-DATE   AVAILABLE   AGE
    deployment.apps/wordpress         1/1     1            1           6m
    deployment.apps/wordpress-mysql   1/1     1            1           6m

    NAME                                         DESIRED   CURRENT   READY   AGE
    replicaset.apps/wordpress-6bc48cbf79         1         1         1       6m
    replicaset.apps/wordpress-mysql-7bd9d456c5   1         1         1       6m

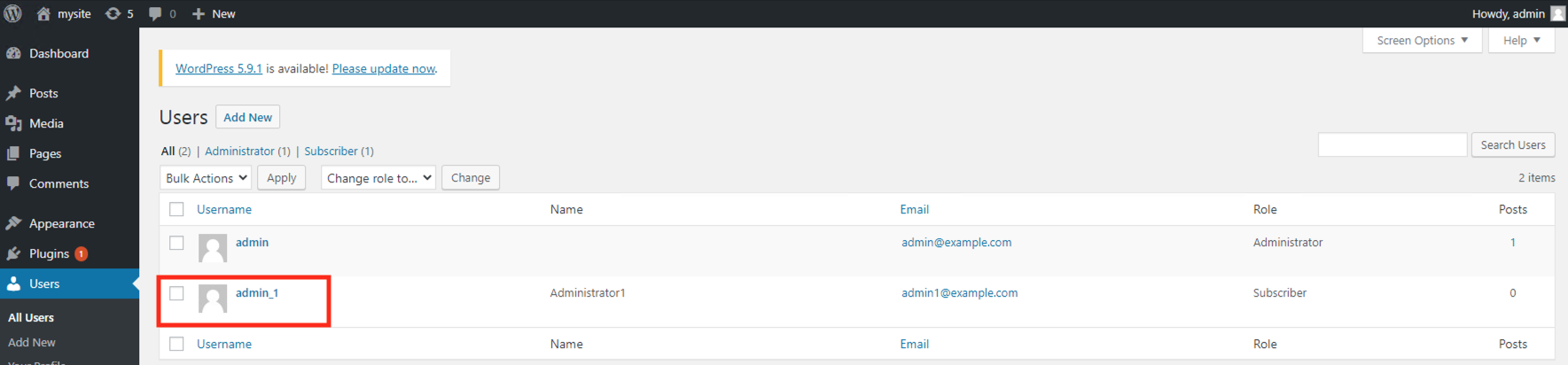

14. Login to Wordpress GUI to check if the deleted user is now present



You have succesfully restored the Wordpress application with Files and Volumes pvc among other resources.
