Deploying Nutanix Enterprise AI

Version 2.8.0

This version of the NAI deployment is based on the Nutanix Enterprise AI (NAI) v2.8.0 release.

Prepare for NAI Deployment

GA Software with NAI v2.8.0

In this lab, we will deploy GA version of the following software to test the following:

  • Nutanix Enterprise AI

    • Unified Endpoints - multiple endpoints for HA and token-based rate limiting
    • Providers - Add remote endpoints from providers to utilize their models in Nutanix Enterprise AI workloads.
    • NAI Profiles - Customise NAI deployment by choosing profiles to match concurrency requirements of the environment

Info

Changes in NAI v2.8.0

  • Kserve is of at least of v0.19.0
  • Cert-manager is at least of v1.17.2
  • OpenTelemetry operator is at least of v0.114.1
  • Envoy Gateway is at least of v1.8.1
  • Prometheus Monitoring is at least of 82.13.6
  • CloudNativePG Operator is ar least of 0.28.0 [usually pre-installed with NKP]
  • LeaderWorkerSet is at least of 0.8.0

Enable Pre-requisite Applications

Warning

Make sure to license NKP cluster with at least NKP Pro License to make use of the NKP Applications catalog to provision NAI (and other applications)

Prometheus

The following pre-requisite applications will be enabled on NKP GUI:

Note

In this lab, we will be using the Management Cluster Workspace to deploy our Nutanix Enterprise AI (NAI)

However, in a customer environment, it is recommended to use a separate workload NKP cluster.

Search and Enable the following applications: follow this order to install dependencies for NAI application

  1. In the NKP GUI, Go to Clusters
  2. Click on Management Cluster Workspace

  3. Go to Applications to search and enable the following:

    • Prometheus Monitoring : version 82.13.6 or higher with the following Values configuration

  4. Wait for Deployed state in the GUI

Cert Manager

Cert Manager is pre-installed on all NKP Clusters. If not installed, use the following method to install:

  1. In the NKP GUI, Go to Clusters
  2. Click on Management Cluster Workspace

  3. Go to Applications to search and enable the following:

    • Cert-manager- v1.17.2

  4. Wait for Deployed state in the GUI

Envoy Gateway

  1. Login to VSC on the jumphost VM, append the following environment variables to the $HOME\airgap-nai\.env file and save it

    export NAI_USER=_your_desired_nai_ui_username
export NAI_TEMP_PASS=_your_desired_nai_ui_password # At least 8 characters
export REGISTRY=_your_private_registry
export REGISTRY_USERNAME=admin
export REGISTRY_PASSWORD=_your_private_registry_password
export REGISTRY_EMAIL=admin
export IMAGE_PULL_SECRET=_your_desired_pull_secret_name

    export NAI_USER=admin
export NAI_TEMP_PASS=_XXXXXXXXX # At least 8 characters
export REGISTRY=harbor.10.x.x.134.nip.io
export REGISTRY_USERNAME=admin
export REGISTRY_PASSWORD=XXXXXXXXXXX
export REGISTRY_EMAIL=admin
export IMAGE_PULL_SECRET=nai-regcred

  2. IN VSC,go to Terminal and run the following commands to source the environment variables

    source $HOME/airgap-nai/.env

  3. Create Kubernetes namespaces and docker-registry secrets for Envoy Gateway System

    kubectl create namespace envoy-gateway-system --dry-run=client -o yaml | kubectl apply -f -

    kubectl create secret docker-registry ${IMAGE_PULL_SECRET} \
  --docker-server=${REGISTRY} \
  --docker-username=${REGISTRY_USERNAME} \
  --docker-password=${REGISTRY_PASSWORD} \
  --docker-email=${REGISTRY_EMAIL} \
  -n envoy-gateway-system \
  --dry-run=client -o yaml | kubectl apply -f -


    namespace/envoy-gateway-system created

    secret/nai-regcred created

  4. Enable Envoy Gateway CRDs v1.8.1 in AI gateway mode

    helm template eg oci://${REGISTRY}/${PROJECT}/gateway-crds-helm \
  --version v1.8.1 \
  --set crds.gatewayAPI.enabled=true \
  --set crds.envoyGateway.enabled=true \
  | kubectl apply --server-side --force-conflicts -f -

    helm template eg oci://harbor.10.x.x.134.nip.io/nutanix/gateway-crds-helm \
  --version v1.8.1 \
  --set crds.gatewayAPI.enabled=true \
  --set crds.envoyGateway.enabled=true \
  | kubectl apply --server-side --force-conflicts -f -

    Pulled: hub.10.x.x.134.nip.io/nutanix/gateway-crds-helm:v1.8.1
Digest: sha256:cb046d213034c1c8eed5f3257206647971f31d0e6996b345e4325dc86033fa50
customresourcedefinition.apiextensions.k8s.io/backendtlspolicies.gateway.networking.k8s.io serverside-applied
customresourcedefinition.apiextensions.k8s.io/gatewayclasses.gateway.networking.k8s.io serverside-applied
customresourcedefinition.apiextensions.k8s.io/gateways.gateway.networking.k8s.io serverside-applied
customresourcedefinition.apiextensions.k8s.io/grpcroutes.gateway.networking.k8s.io serverside-applied
customresourcedefinition.apiextensions.k8s.io/httproutes.gateway.networking.k8s.io serverside-applied
customresourcedefinition.apiextensions.k8s.io/listenersets.gateway.networking.k8s.io serverside-applied
customresourcedefinition.apiextensions.k8s.io/referencegrants.gateway.networking.k8s.io serverside-applied
customresourcedefinition.apiextensions.k8s.io/tcproutes.gateway.networking.k8s.io serverside-applied
customresourcedefinition.apiextensions.k8s.io/tlsroutes.gateway.networking.k8s.io serverside-applied
customresourcedefinition.apiextensions.k8s.io/udproutes.gateway.networking.k8s.io serverside-applied
customresourcedefinition.apiextensions.k8s.io/xbackendtrafficpolicies.gateway.networking.x-k8s.io serverside-applied
customresourcedefinition.apiextensions.k8s.io/xmeshes.gateway.networking.x-k8s.io serverside-applied
customresourcedefinition.apiextensions.k8s.io/backends.gateway.envoyproxy.io serverside-applied
customresourcedefinition.apiextensions.k8s.io/backendtrafficpolicies.gateway.envoyproxy.io serverside-applied
customresourcedefinition.apiextensions.k8s.io/clienttrafficpolicies.gateway.envoyproxy.io serverside-applied
customresourcedefinition.apiextensions.k8s.io/envoyextensionpolicies.gateway.envoyproxy.io serverside-applied
customresourcedefinition.apiextensions.k8s.io/envoypatchpolicies.gateway.envoyproxy.io serverside-applied
customresourcedefinition.apiextensions.k8s.io/envoyproxies.gateway.envoyproxy.io serverside-applied
customresourcedefinition.apiextensions.k8s.io/httproutefilters.gateway.envoyproxy.io serverside-applied
customresourcedefinition.apiextensions.k8s.io/securitypolicies.gateway.envoyproxy.io serverside-applied
validatingadmissionpolicy.admissionregistration.k8s.io/safe-upgrades.gateway.networking.k8s.io serverside-applied
validatingadmissionpolicybinding.admissionregistration.k8s.io/safe-upgrades.gateway.networking.k8s.io serverside-applied

  5. Prepare values file for configuring advanced features for envoy gateway in AI gateway mode.

    cat << EOF > eg-config-for-gateway-mode.yaml
# This file configures Envoy Gateway for AI Gateway mode with rate limiting

config:
  envoyGateway:
    gateway:
      controllerName: "gateway.envoyproxy.io/gatewayclass-controller"
    logging:
      level:
        default: "info"
    provider:
      kubernetes:
        rateLimitDeployment:
          patch:
            type: "StrategicMerge"
            value:
              spec:
                template:
                  spec:
                    containers:
                      - imagePullPolicy: "IfNotPresent"
                        name: "envoy-ratelimit"
                        env:
                          - name: REDIS_TYPE
                            value: "sentinel"
                          - name: REDIS_PIPELINE_WINDOW
                            value: "150us"
      type: "Kubernetes"
    extensionApis:
      enableEnvoyPatchPolicy: true
      enableBackend: true
    extensionManager:
      maxMessageSize: 11Mi
      backendResources:
        - group: inference.networking.k8s.io
          kind: InferencePool
          version: v1
      hooks:
        xdsTranslator:
          translation:
            listener:
              includeAll: true
            route:
              includeAll: true
            cluster:
              includeAll: true
            secret:
              includeAll: true
          post:
            - "Translation"
            - "Cluster"
            - "Route"
      service:
        fqdn:
          hostname: "ai-gateway-controller.nai-system.svc.cluster.local"
          port: 1063
    rateLimit:
      backend:
        type: "Redis"
        redis:
          url: "mymaster,nai-valkey-sentinel.nai-system.svc.cluster.local:26379"
EOF

  6. Enable Envoy Gateway v1.8.1 in AI gateway mode

    helm upgrade --install eg oci://${REGISTRY}/${PROJECT}/gateway-helm \
  --version v1.8.1 \
  -n envoy-gateway-system --create-namespace --wait \
  --set global.images.envoyGateway.image=${REGISTRY}/${PROJECT}/nai-gateway:v1.8.1 \
  --set global.images.ratelimit.image=${REGISTRY}/${PROJECT}/nai-ratelimit:1e50889b \
  --set "global.imagePullSecrets[0].name=${IMAGE_PULL_SECRET}" \
  -f ./eg-config-for-gateway-mode.yaml

    helm upgrade --install eg oci://harbor.10.x.x.134.nip.io/nutanix/gateway-helm \
  --version v1.8.1 \
  -n envoy-gateway-system \
  --create-namespace --wait \
  --set global.images.envoyGateway.image=harbor.10.x.x.134.nip.io/nutanix/nai-gateway:v1.8.1 \
  --set global.images.ratelimit.image=harbor.10.x.x.134.nip.io/nutanix/nai-ratelimit:1e50889b \
  --set global.imagePullSecrets[0].name=nai-regcred \
  -f ./eg-config-for-gateway-mode.yaml

    Release "eg" does not exist. Installing it now.
Pulled: harbor.10.x.x.134.nip.io/nutanix/gateway-helm:v1.8.1
Digest: sha256:47cd05944faacf6eb4fac7f3790df971b35662ead848c1a76945e8279636478d
Release "eg" has been upgraded. Happy Helming!
NAME: eg
LAST DEPLOYED: Wed Sep 16 06:25:31 2026
NAMESPACE: envoy-gateway-system
STATUS: deployed
REVISION: 2
DESCRIPTION: Upgrade complete
TEST SUITE: None

  7. Check if Envoy Gateway resources are ready

    Warning

    The envoy-ratelimit- pod will temporarily be in CrashLoopBackOff state and eventually will transition to Running after redis-standalone pod is fully deployed in the upcoming Deploy NAI section.

    Ignore the CrashLoopBackOff state for now and move on to the next section.

    kubectl wait --timeout=5m -n envoy-gateway-system deployment/envoy-gateway --for=condition=Available
kubectl get pods

    $ kubectl wait --timeout=5m -n envoy-gateway-system deployment/envoy-gateway --for=condition=Available
#
deployment.apps/envoy-gateway condition met

$ kubectl get pods
#
NAME                               READY   STATUS    RESTARTS      AGE
envoy-gateway-c885698c5-f88wl      1/1     Running   0             102s
envoy-ratelimit-7c47dd84cc-8qz7n   0/1     Error     4 (48s ago)   101s

Kserve

  1. Create kubernetes namespaces and docker-registry secrets for KServe

    kubectl create namespace kserve --dry-run=client -o yaml | kubectl apply -f -

    kubectl create secret docker-registry ${IMAGE_PULL_SECRET} \
  --docker-server=${REGISTRY} \
  --docker-username=${REGISTRY_USERNAME} \
  --docker-password=${REGISTRY_PASSWORD} \
  --docker-email=${REGISTRY_EMAIL} \
  -n kserve \
  --dry-run=client -o yaml | kubectl apply -f -


    namespace/kserve created

    secret/nai-regcred created

  2. Run the Kserve CRD installation

    helm upgrade --install kserve-crd \
  oci://${REGISTRY}/${PROJECT}/kserve-crd \
  --version v0.19.0 \
  -n kserve

    helm upgrade --install kserve-crd \
  oci://harbor.10.x.x.134.nip.io/nutanix/kserve-crd \
  --version v0.19.0 \
  -n kserve

    Release "kserve-crd" does not exist. Installing it now.
Pulled: harbor.10.x.x.134.nip.io/nutanix/kserve-crd:v0.19.0
Digest: sha256:8ea9a76c71d231c297a72b3ed38a773858665f2e7af82105ed14bd8c7295a323
NAME: kserve-crd
LAST DEPLOYED: Wed Sep 16 06:35:25 2026
NAMESPACE: kserve
STATUS: deployed
REVISION: 1
DESCRIPTION: Install complete
TEST SUITE: None

  3. Run the Kserve installation

    helm upgrade --install kserve oci://${REGISTRY}/${PROJECT}/kserve-resources \
  --version v0.19.0 \
  -n kserve --wait \
  --set kserve.controller.deploymentMode=RawDeployment \
  --set kserve.controller.gateway.disableIngressCreation=true \
  --set kserve.controller.image=${REGISTRY}/${PROJECT}/nai-kserve-controller \
  --set kserve.controller.rbacProxyImage=${REGISTRY}/${PROJECT}/nai-kube-rbac-proxy:v0.18.0 \
  --set "kserve.controller.imagePullSecrets[0].name=${IMAGE_PULL_SECRET}"

    helm upgrade --install kserve oci://harbor.10.x.x.134.nip.io/kserve-resources \
  --version v0.19.0 \
  -n kserve --wait \
  --set kserve.controller.deploymentMode=RawDeployment \
  --set kserve.controller.gateway.disableIngressCreation=true \
  --set kserve.controller.image=harbor.10.x.x.134.nip.io/nutanix/nai-kserve-controller \
  --set kserve.controller.rbacProxyImage=arbor.10.x.x.134.nip.io/nutanix/nai-kube-rbac-proxy:v0.18.0 \
  --set "kserve.controller.imagePullSecrets[0].name=nai-regcred"

    Release "kserve" does not exist. Installing it now.
Pulled: hub.10.x.x.134.nip.io/nutanix/kserve-resources:v0.19.0
Digest: sha256:9b0b067d2a9f494cd3046652cc5d084b177fe320d0fbd0593c826335e6dde1a5
NAME: kserve
LAST DEPLOYED: Wed Sep 16 06:45:29 2026
NAMESPACE: kserve
STATUS: deployed
REVISION: 1
DESCRIPTION: Install complete
TEST SUITE: None
    Kserve install failure?

    Ocassionally the Kserve install might fail due to webhook race condition. If this happens, wait a few minutes and run the helm update --install kserve ... commmand from above once again.

    failed calling webhook "clusterservingruntime.kserve-webhook-server.validator": failed to call webhook: Post "https://kserve-webhook-server-service.kserve.svc:443/validate-serving-kserve-io-v1alpha1-clusterservingruntime?timeout=10s": dial tcp 10.106.128.236:443: connect: operation not permitted

  4. Confirm if kserve pod is running

    kubectl get pods -n kserve

    $ kubectl get pods
#
NAME                                         READY   STATUS    RESTARTS   AGE
kserve-controller-manager-5758b77ccf-q2797   2/2     Running   0          106s

  5. Deploy the KServe llmisvc crds

    helm upgrade --install kserve-llmisvc-crd oci://${REGISTRY}/${PROJECT}/kserve-llmisvc-crd
  --version v0.19.0
  -n kserve --create-namespace --wait

    helm upgrade --install kserve-llmisvc-crd oci://hub.10.x.x.134.nip.io/nutanix/kserve-llmisvc-crd
  --version v0.19.0
  -n kserve --create-namespace --wait

    Release "kserve-llmisvc-crd" does not exist. Installing it now.
Pulled: hub.10.122.7.90.nip.io/nutanix/kserve-llmisvc-crd:v0.19.0
Digest: sha256:21b0c1dcaf0e9c9afef345e3b16b162b88748ee73df0b0e17fcddf43df6950bc
NAME: kserve-llmisvc-crd
LAST DEPLOYED: Wed Sep 16 07:14:11 2026
NAMESPACE: kserve
STATUS: deployed
REVISION: 1
DESCRIPTION: Install complete
TEST SUITE: None

  6. Deploy the KServe llmisvc controller

    helm upgrade --install kserve-llmisvc-resources oci://${REGISTRY}/${PROJECT}/kserve-llmisvc-resources --version v0.19.0 \
  -n kserve --create-namespace --wait
  --set kserve.createSharedResources=false
  --set kserve.llmisvc.createGIECRDs=false \
  --set kserve.llmisvc.controller.image=${REGISTRY}/${PROJECT}/nai-llmisvc-controller \
  --set "kserve.llmisvc.controller.imagePullSecrets[0]=${IMAGE_PULL_SECRET}"

    helm upgrade --install kserve-llmisvc-resources oci://hub.10.122.7.90.nip.io/nutanix/kserve-llmisvc-resources --version v0.19.0
  -n kserve --create-namespace --wait -
  --set kserve.createSharedResources=false
  --set kserve.llmisvc.createGIECRDs=false
  --set kserve.llmisvc.controller.image=hub.10.122.7.90.nip.io/nutanix/nai-llmisvc-controller
  --set kserve.llmisvc.controller.imagePullSecrets[0]=nai-regcred

    Release "kserve-llmisvc-resources" does not exist. Installing it now.
Pulled: hub.10.122.7.90.nip.io/nutanix/kserve-llmisvc-resources:v0.19.0
Digest: sha256:30974dd651ad3877a9dd032e900987c3a0d0820ee56227eb6daf2e6780f405a5
NAME: kserve-llmisvc-resources
LAST DEPLOYED: Wed Sep 16 07:17:06 2026
NAMESPACE: kserve
STATUS: deployed
REVISION: 1
DESCRIPTION: Install complete
TEST SUITE: None

  7. Confirm if Kserve llmisvc pod is running

    kubectl get pods -n kserve

    $ kubectl get pods
#
NAME                                         READY   STATUS    RESTARTS   AGE
kserve-controller-manager-5758b77ccf-q2797   2/2     Running   0          3m
llmisvc-controller-manager-7d594c9744-gxknx  1/1     Running   0          107s

CloudNativePG

Note

NKP will have CloudNativePG pre-installed as a part of regular install. Check in the Applications Catalog of the NKP cluster for its presence.

Check for CloudNativePG v0.28.0, if present, skip this section.

  1. In the NKP GUI, Go to Clusters
  2. Click on Management Cluster Workspace

  3. Go to Applications to search and enable the following:

    • CloudNativePG : version 0.28.0

LeaderWorkerSet

LeaderWorkerSet (LWS) is an open-source, custom Kubernetes API designed to deploy and manage multi-node AI/ML workloads—such as large language model (LLM) distributed inference and training—as a single, cohesive unit. It automatically groups a collection of pods into a specific topology consisting of one leader pod and multiple worker pods, managing their entire lifecycle simultaneously so that if a single pod fails, the entire group restarts together to prevent data inconsistency. Furthermore, LWS simplifies network communication across these nodes by automatically injecting group environment variables and optimizing pod placement within the same network topology to guarantee high-throughput, low-latency data transfers between GPUs.

  1. Create kubernetes namespaces and docker-registry secrets for LeaderWorkerSet

    kubectl create namespace lws-system --dry-run=client -o yaml | kubectl apply -f -

    kubectl create secret docker-registry ${IMAGE_PULL_SECRET} \
  --docker-server=${REGISTRY} \
  --docker-username=${REGISTRY_USERNAME} \
  --docker-password=${REGISTRY_PASSWORD} \
  --docker-email=${REGISTRY_EMAIL} \
  -n lws-system \
  --dry-run=client -o yaml | kubectl apply -f -


    namespace/lws-system created

    secret/nai-regcred created

  2. Run the LeaderWorkerSet installation

    helm install lws oci://${REGISTRY}/${PROJECT}/lws/charts/lws \
  --version 0.8.0 -n lws-system --create-namespace --wait

    helm install lws oci://harbor.10.x.x.134.nip.io/nutanix/lws/charts/lws \
 --version 0.8.0 -n lws-system --create-namespace --wait

    Pulled: hub.10.122.7.90.nip.io/nutanix/lws/charts/lws:0.8.0
Digest: sha256:e7996d0b9ca8a1ab2d86458b0435a8d842389b81325dc650792389a2c1ad7f57
NAME: lws
LAST DEPLOYED: Wed Sep 16 09:18:46 2026
NAMESPACE: lws-system
STATUS: deployed
REVISION: 1
DESCRIPTION: Install complete
TEST SUITE: None

  3. Confirm if LeaderWorkerSet pod is running

    kubectl get pods -n opentelemetry

    $ kubectl get pods
#
NAME                                     READY   STATUS    RESTARTS   AGE
lws-controller-manager-bc855786c-ccrpb   1/1     Running   0          1m

OpenTelemetry

  1. Create kubernetes namespaces and docker-registry secrets for OpenTelemetry

    kubectl create namespace opentelemetry --dry-run=client -o yaml | kubectl apply -f -

    kubectl create secret docker-registry ${IMAGE_PULL_SECRET} \
  --docker-server=${REGISTRY} \
  --docker-username=${REGISTRY_USERNAME} \
  --docker-password=${REGISTRY_PASSWORD} \
  --docker-email=${REGISTRY_EMAIL} \
  -n opentelemetry \
  --dry-run=client -o yaml | kubectl apply -f -


    namespace/opentelemetry created

    secret/nai-regcred created

  2. Run the OpenTelemetry operator installation

    helm upgrade --install opentelemetry-operator oci://${REGISTRY}/${PROJECT}/opentelemetry-operator \
  --version 0.114.1 \
  -n opentelemetry --create-namespace --wait \
  --set manager.image.repository=${REGISTRY}/${PROJECT}/nai-opentelemetry-operator \
  --set manager.collectorImage.repository=${REGISTRY}/${PROJECT}/nai-opentelemetry-collector-contrib \
  --set "imagePullSecrets[0].name=${IMAGE_PULL_SECRET}"

    helm upgrade --install opentelemetry-operator oci://harbor.10.x.x.134.nip.io/nutanix/opentelemetry-operator \
  --version 0.114.1 \
  -n opentelemetry --create-namespace --wait \
  --set manager.image.repository=harbor.10.x.x.134.nip.io/nutanix/nai-opentelemetry-operator \
  --set manager.collectorImage.repository=harbor.10.x.x.134.nip.io/nutanix/nai-opentelemetry-collector-k8s \
  --set kubeRBACProxy.image.repository=harbor.10.x.x.134.nip.io/nutanix/nai-kube-rbac-proxy
  --set imagePullSecrets[0].name=nai-regcred

    Release "opentelemetry-operator" does not exist. Installing it now.
Pulled: hub.10.x.x.134.nip.io/nutanix/opentelemetry-operator:0.114.1
Digest: sha256:49164673027025e8df2bd7d1696036ddc2f9d43dadc42f2d4e083375994d405d
NAME: opentelemetry-operator
LAST DEPLOYED: Wed Sep 16 06:52:32 2026
NAMESPACE: opentelemetry
STATUS: deployed
REVISION: 1
DESCRIPTION: Install complete

  3. Confirm if Opentelemetry pod is running

    kubectl get pods -n opentelemetry

    $ kubectl get pods
#
NAME                                      READY   STATUS    RESTARTS   AGE
opentelemetry-operator-6979c94795-8tdrl   1/1     Running   0          60s

Deploy NAI

  1. Append the following environment variables to the $HOME\airgap-nai\.env file and save it

    export NAI_API_RWX_STORAGECLASS=_desired_rwx_files_storageclass_created_in_previous_section
export NAI_DEFAULT_RWO_STORAGECLASS=_desired_rwo_volume_storageclass
export NKP_WORKSPACE_NAMESPACE=_desired_nkp_workspace # (1)!

    1. Get the values for the NKP workspace using the following commands:

      nkp get workspaces
# Get the names of workspaces
# NAME                    NAMESPACE
# default-workspace       kommander-default-workspace
# kommander-workspace     kommander

nkp get clusters -w kommander-workspace
# Ensure the target cluster is in the correct workspace
# WORKSPACE               NAME            KUBECONFIG                              STATUS
# kommander-workspace     host-cluster    kommander-self-attach-kubeconfig        Joined

    export NAI_API_RWX_STORAGECLASS=nai-nfs-storage
export NAI_DEFAULT_RWO_STORAGECLASS=nutanix-volume
export NKP_WORKSPACE_NAMESPACE=kommander-workspace #(1)!
    1. Use kommander-workspace if this is where your cluster is deployed

  2. Source the environment variables (if not done so already)

    source $HOME/airgap-nai/.env

  3. Create kubernetes namespaces and docker-registry secrets for NAI

    kubectl create namespace nai-system --dry-run=client -o yaml | kubectl apply -f -

    kubectl create secret docker-registry ${IMAGE_PULL_SECRET} \
  --docker-server=${REGISTRY} \
  --docker-username=${REGISTRY_USERNAME} \
  --docker-password=${REGISTRY_PASSWORD} \
  --docker-email=${REGISTRY_EMAIL} \
  -n nai-system \
  --dry-run=client -o yaml | kubectl apply -f -


    namespace/nai-system created

    secret/nai-regcred created

  4. In VSCode Explorer pane, browse to $HOME/airgap-nai folder

  5. Run the following command to create a helm values file:

    cat <<EOF > darksite-nai-operators.yaml
global:
  imagePullSecrets:
    - name: ${IMAGE_PULL_SECRET}
  storage:
    storageClassName: ${NAI_DEFAULT_RWO_STORAGECLASS}

naiValkey:
  image:
    name: ${REGISTRY}/${PROJECT}/nai-valkey

naiJobs:
  naiJobsImage:
    image: ${REGISTRY}/${PROJECT}/nai-jobs

nai-clickhouse-operator:
  operator:
    image:
      registry: ${REGISTRY}
      repository: ${PROJECT}/nai-clickhouse-operator
  metrics:
    image:
      registry: ${REGISTRY}
      repository: ${PROJECT}/nai-clickhouse-metrics-exporter

ai-gateway-helm:
  extProc:
    image:
      repository: ${REGISTRY}/${PROJECT}/nai-ai-gateway-extproc
  controller:
    image:
      repository: ${REGISTRY}/${PROJECT}/nai-ai-gateway-controller

naiDatabase:
  image: ${REGISTRY}/${PROJECT}/nai-postgresql:17.10-standard-trixie
EOF

    global:
  imagePullSecrets:
    - name: nai-regcred
  storage:
    storageClassName: nutanix-volume

naiValkey:
  image:
    name: hub.10.x.x.134.nip.io/nutanix/nai-valkey

naiJobs:
  naiJobsImage:
    image: hub.10.x.x.134.nip.io/nutanix/nai-jobs

nai-clickhouse-operator:
  operator:
    image:
      registry: hub.10.x.x.134.nip.io
      repository: nutanix/nai-clickhouse-operator
  metrics:
    image:
      registry: hub.10.x.x.134.nip.io
      repository: nutanix/nai-clickhouse-metrics-exporter

ai-gateway-helm:
  extProc:
    image:
      repository: hub.10.x.x.134.nip.io/nutanix/nai-ai-gateway-extproc
  controller:
    image:
      repository: hub.10.x.x.134.nip.io/nutanix/nai-ai-gateway-controller

naiDatabase:
  image: hub.10.x.x.134.nip.io/nutanix/nai-postgresql:17.10-standard-trixie

  6. Install NAI operator in the nai-system namespace.

    Deploy NAI Profiles

    NAI v2.8.0 onwards has support for profiles for different capacity of NAI use cases

    Name Capacity
    Default 300 concurrent requests and 100 API Keys
    c1k_k200 1000 concurrent requests and 200 API Keys
    c5k_k1k 5000 concurrent requests and 1000 API Keys

    Extract the profiles from Helm charts:

    helm pull ntnx-charts/nai-operators --version 2.8.0 --untar=true
helm pull ntnx-charts/nai-core --version 2.8.0 --untar=true

    The extracted profile will be located in the following path:

    ./nai-operators/profiles/c1k_k200.yaml
./nai-operators/profiles/c5k_k1k.yaml

./nai-core/profiles/c1k_k200.yaml
./nai-core/profiles/c5k_k1k.yaml

    Deploy NAI Operators for c1k_k200 profile

    helm upgrade --install nai-operators ntnx-charts/nai-operators --version 2.8.0 \
  -n nai-system --create-namespace --wait --timeout 15m \
  --set "global.storage.storageClassName=${NAI_DEFAULT_RWO_STORAGECLASS}" \
  --set "global.imagePullSecrets[0].name=${REGISTRY_SECRET_NAME}" \
  -f ./nai-operators/profiles/c1k_k200.yaml

    helm upgrade --install nai-operators oci://${REGISTRY}/${PROJECT}/nai-operators \
  --version=2.8.0 \
  -n nai-system --create-namespace --take-ownership --wait --timeout 15m \
  -f ./darksite-nai-operators.yaml

    helm upgrade --install nai-operators oci://harbor.10.x.x.134.nip.io/nutanix/nai-operators \
  --version=2.8.0 \
  -n nai-system --create-namespace --take-ownership --wait --timeout 15m \
  -f ./darksite-nai-operators.yaml

    Release "nai-operators" does not exist. Installing it now.
Pulled: hub.10.x.x.134.nip.io/nutanix/nai-operators:2.8.0
Digest: sha256:9ab3d20a379d8933094ceb8f9980454582f712d8b6a7c973e3549aa49f95cb59
NAME: nai-operators
LAST DEPLOYED: Wed Sep 16 07:03:11 2026
NAMESPACE: nai-system
STATUS: deployed
REVISION: 1
DESCRIPTION: Install complete
TEST SUITE: None

  7. Verify all three nai-operator pods are running. Note that ai-gateway-controller- pod is also running as we are installing AI Gateway features

    kubens nai-system
kubectl get pod

    $ kubectl get po
#
NAME                                                     READY   STATUS    RESTARTS   AGE
ai-gateway-controller-647d6946bb-b5gps                   1/1     Running   0          28s
nai-db-iep-1                                             1/1     Running   0          2m10s
nai-operators-nai-clickhouse-operator-746b4bc55d-x5tmr   2/2     Running   0          2m50s
nai-valkey-0                                             1/1     Running   0          2m50s
nai-valkey-sentinel-0                                    1/1     Running   0          2m50s

  8. Run the following command to create a helm values file:

    cat <<EOF > darksite-nai-core.yaml
global:
  imagePullSecrets:
    - name: ${IMAGE_PULL_SECRET}
  storage:
    storageClassName: ${NAI_DEFAULT_RWO_STORAGECLASS}
    storageClassNameRWX: ${NAI_API_RWX_STORAGECLASS}

gateway:
  envoyDeployment:
    container:
      image: ${REGISTRY}/${PROJECT}/nai-envoy:distroless-v1.38.0

naiIepOperator:
  iepOperatorImage:
    image: ${REGISTRY}/${PROJECT}/nai-iep-operator

  modelProcessorImage:
    image: ${REGISTRY}/${PROJECT}/nai-python-processor

  dataSourceProcessorImage:
    image: ${REGISTRY}/${PROJECT}/nai-python-processor

  batchInferenceProcessor:
    containers:
      processor:
        image: ${REGISTRY}/${PROJECT}/nai-go-processor
      statusProvider:
        image: ${REGISTRY}/${PROJECT}/nai-go-processor

  finetuneProcessor:
    containers:
      processor:
        image: ${REGISTRY}/${PROJECT}/nai-finetuning
      statusProvider:
        image: ${REGISTRY}/${PROJECT}/nai-go-processor

naiInferenceUi:
  naiUiImage:
    image: ${REGISTRY}/${PROJECT}/nai-inference-ui

naiJobs:
  naiJobsImage:
    image: ${REGISTRY}/${PROJECT}/nai-jobs

naiApi:
  naiApiImage:
    image: ${REGISTRY}/${PROJECT}/nai-api
  supportedTGIImage: ${REGISTRY}/${PROJECT}/nai-tgi
  supportedKserveRuntimeImage: ${REGISTRY}/${PROJECT}/nai-kserve-huggingfaceserver
  eppImage: ${REGISTRY}/${PROJECT}/nai-epp-inference-scheduler
  supportedVLLMImage: ${REGISTRY}/${PROJECT}/nai-vllm
  supportedKserveCustomModelServerRuntimeImage: ${REGISTRY}/${PROJECT}/nai-kserve-custom-model-server

naiDatabase:
  clientImage: ${REGISTRY}/${PROJECT}/nai-postgresql:17.10-standard-trixie

naiIam:
  iamProxy:
    image: ${REGISTRY}/${PROJECT}/nai-iam-proxy

  iamProxyControlPlane:
    image: ${REGISTRY}/${PROJECT}/nai-iam-proxy-control-plane

  iamUi:
    image: ${REGISTRY}/${PROJECT}/nai-iam-ui

  iamUserAuthn:
    image: ${REGISTRY}/${PROJECT}/nai-iam-user-authn

  iamThemis:
    image: ${REGISTRY}/${PROJECT}/nai-iam-themis

  iamThemisBootstrap:
    image: ${REGISTRY}/${PROJECT}/nai-iam-bootstrap

naiAgent:
  agentImage:
    image: ${REGISTRY}/${PROJECT}/nai-agent-app

naiLabs:
  labsImage:
    image: ${REGISTRY}/${PROJECT}/nai-rag-app

nai-clickhouse-keeper:
  clickhouseKeeper:
    image:
      registry: ${REGISTRY}
      repository: ${PROJECT}/nai-clickhouse-keeper

oauth2-proxy:
  image:
    repository: ${REGISTRY}/${PROJECT}/nai-oauth2-proxy

nai-clickhouse-server:
  clickhouse:
    image:
      registry: ${REGISTRY}
      repository: ${PROJECT}/nai-clickhouse-server
    initContainers:
      addUdf:
        image:
          registry: ${REGISTRY}
          repository: ${PROJECT}/nai-clickhouse-udf
      waitForKeeper:
        image:
          registry: ${REGISTRY}
          repository: ${PROJECT}/nai-jobs

nai-clickhouse-schemas:
  image:
    registry: ${REGISTRY}
    repository: ${PROJECT}/nai-clickhouse-schemas

naiMonitoring:
  opentelemetry:
    collectorImage: ${REGISTRY}/${PROJECT}/nai-opentelemetry-collector-contrib:0.152.0
    targetAllocator:
      image:
        repository: ${REGISTRY}/${PROJECT}/nai-target-allocator
  nodeExporter:
    serviceMonitor:
      namespaceSelector:
        matchNames:
          - prometheus
          - kommander
          - kommander-default-workspace
          - ${NKP_WORKSPACE_NAMESPACE}
  dcgmExporter:
    serviceMonitor:
      namespaceSelector:
        matchNames:
          - prometheus
          - kommander
          - kommander-default-workspace
          - ${NKP_WORKSPACE_NAMESPACE}
EOF

    global:
  imagePullSecrets:
    - name: nai-regcred
  storage:
    storageClassName: nutanix-volume
    storageClassNameRWX: nai-nfs-storage

gateway:
  envoyDeployment:
    container:
      image: hub.10.x.x.134.nip.io/nutanix/nai-envoy:distroless-v1.38.0

naiIepOperator:
  iepOperatorImage:
    image: hub.10.x.x.134.nip.io/nutanix/nai-iep-operator

  modelProcessorImage:
    image: hub.10.x.x.134.nip.io/nutanix/nai-python-processor

  dataSourceProcessorImage:
    image: hub.10.x.x.134.nip.io/nutanix/nai-python-processor

  batchInferenceProcessor:
    containers:
      processor:
        image: hub.10.x.x.134.nip.io/nutanix/nai-go-processor
      statusProvider:
        image: hub.10.x.x.134.nip.io/nutanix/nai-go-processor

  finetuneProcessor:
    containers:
      processor:
        image: hub.10.x.x.134.nip.io/nutanix/nai-finetuning
      statusProvider:
        image: hub.10.x.x.134.nip.io/nutanix/nai-go-processor

naiInferenceUi:
  naiUiImage:
    image: hub.10.x.x.134.nip.io/nutanix/nai-inference-ui

naiJobs:
  naiJobsImage:
    image: hub.10.x.x.134.nip.io/nutanix/nai-jobs

naiApi:
  naiApiImage:
    image: hub.10.x.x.134.nip.io/nutanix/nai-api
  supportedTGIImage: hub.10.x.x.134.nip.io/nutanix/nai-tgi
  supportedKserveRuntimeImage: hub.10.x.x.134.nip.io/nutanix/nai-kserve-huggingfaceserver
  eppImage: hub.10.x.x.134.nip.io/nutanix/nai-epp-inference-scheduler
  supportedVLLMImage: hub.10.x.x.134.nip.io/nutanix/nai-vllm
  supportedKserveCustomModelServerRuntimeImage: hub.10.x.x.134.nip.io/nutanix/nai-kserve-custom-model-server

naiDatabase:
  clientImage: hub.10.x.x.134.nip.io/nutanix/nai-postgresql:17.10-standard-trixie

naiIam:
  iamProxy:
    image: hub.10.x.x.134.nip.io/nutanix/nai-iam-proxy

  iamProxyControlPlane:
    image: hub.10.x.x.134.nip.io/nutanix/nai-iam-proxy-control-plane

  iamUi:
    image: hub.10.x.x.134.nip.io/nutanix/nai-iam-ui

  iamUserAuthn:
    image: hub.10.x.x.134.nip.io/nutanix/nai-iam-user-authn

  iamThemis:
    image: hub.10.x.x.134.nip.io/nutanix/nai-iam-themis

  iamThemisBootstrap:
    image: hub.10.x.x.134.nip.io/nutanix/nai-iam-bootstrap

naiAgent:
  agentImage:
    image: hub.10.x.x.134.nip.io/nutanix/nai-agent-app

naiLabs:
  labsImage:
    image: hub.10.x.x.134.nip.io/nutanix/nai-rag-app

nai-clickhouse-keeper:
  clickhouseKeeper:
    image:
      registry: hub.10.x.x.134.nip.io
      repository: nutanix/nai-clickhouse-keeper

oauth2-proxy:
  image:
    repository: hub.10.x.x.134.nip.io/nutanix/nai-oauth2-proxy

nai-clickhouse-server:
  clickhouse:
    image:
      registry: hub.10.x.x.134.nip.io
      repository: nutanix/nai-clickhouse-server
    initContainers:
      addUdf:
        image:
          registry: hub.10.x.x.134.nip.io
          repository: nutanix/nai-clickhouse-udf
      waitForKeeper:
        image:
          registry: hub.10.x.x.134.nip.io
          repository: nutanix/nai-jobs

nai-clickhouse-schemas:
  image:
    registry: hub.10.x.x.134.nip.io
    repository: nutanix/nai-clickhouse-schemas

naiMonitoring:
  opentelemetry:
    collectorImage: hub.10.x.x.134.nip.io/nutanix/nai-opentelemetry-collector-contrib:0.152.0
    targetAllocator:
      image:
        repository: hub.10.x.x.134.nip.io/nutanix/nai-target-allocator
  nodeExporter:
    serviceMonitor:
      namespaceSelector:
        matchNames:
          - prometheus
          - kommander
          - kommander-default-workspace
          - kommander-workspace
  dcgmExporter:
    serviceMonitor:
      namespaceSelector:
        matchNames:
          - prometheus
          - kommander
          - kommander-default-workspace
          - kommander-workspace

  9. Install NAI Core helm chart in the nai-system namespace

    Deploy NAI Profiles

    NAI v2.8.0 onwards has support for profiles for different capacity of NAI use cases

    Name Capacity
    Default 300 concurrent requests and 100 API Keys
    c1k_k200 1000 concurrent requests and 200 API Keys
    c5k_k1k 5000 concurrent requests and 1000 API Keys

    Extract the profiles from Helm charts:

    helm pull ntnx-charts/nai-operators --version 2.8.0 --untar=true
helm pull ntnx-charts/nai-core --version 2.8.0 --untar=true

    The extracted profile will be located in the following path:

    ./nai-operators/profiles/c1k_k200.yaml
./nai-operators/profiles/c5k_k1k.yaml

./nai-core/profiles/c1k_k200.yaml
./nai-core/profiles/c5k_k1k.yaml

    Deploy NAI Core for c1k_k200 profile

    helm upgrade --install nai-core ntnx-charts/nai-core --version=2.8.0 \
  -n nai-system --create-namespace --wait --timeout 15m \
  --set "global.imagePullSecrets[0].name=${REGISTRY_SECRET_NAME}" \
  --set "global.storage.storageClassNameRWX=${NAI_API_RWX_STORAGECLASS}" \
  --set "global.storage.storageClassName=${NAI_DEFAULT_RWO_STORAGECLASS}" \
  -f ./nai-core/profiles/c1k_k200.yaml

    helm upgrade --install nai-core oci://${REGISTRY}/${PROJECT}/nai-core \
  --version 2.8.0 \
  -n nai-system --create-namespace --wait --timeout 15m \
  --set "gateway.certManager.selfSigned=true" \
  -f ./darksite-nai-core.yaml

    helm upgrade --install nai-core oci://harbor.10.x.x.134/nutanix/nai-core \
  --version 2.8.0 \
  -n nai-system --create-namespace --wait --timeout 15m \
  --set "gateway.certManager.selfSigned=true" \
  -f ./darksite-nai-core.yaml

    Release "nai-core" does not exist. Installing it now.
Pulled: harbor.10.x.x.134.nip.io/nutanix/nai-core:2.8.0
NAME: nai-core
LAST DEPLOYED: Wed Sep 17 01:38:56 2026
NAMESPACE: nai-system
STATUS: deployed
REVISION: 1
DESCRIPTION: Install complete
TEST SUITE: None

  10. Check if all NAI core pods are running

    kubens nai-system
kubectl get pods

    Active namespace is "nai-system".
#
$ kubectl get pods
#
NAME                                                     READY   STATUS      RESTARTS      AGE
ai-gateway-controller-647d6946bb-zk5qm                   1/1     Running     0             16h
chi-nai-clickhouse-server-chcluster1-0-0-0               1/1     Running     0             68m
chk-nai-clickhouse-keeper-chkeeper-0-0-0                 1/1     Running     0             68m
iam-database-bootstrap-ezodq-h6gts                       0/1     Completed   0             68m
iam-proxy-7df46c57-lh4tv                                 1/1     Running     0             68m
iam-proxy-control-plane-57b65bbb-zkgwc                   1/1     Running     0             68m
iam-themis-768c54cc94-bx8pn                              1/1     Running     0             68m
iam-themis-bootstrap-gcphr-q5jtg                         0/1     Completed   0             68m
iam-ui-6f4799949b-m574s                                  1/1     Running     0             68m
iam-user-authn-546798745-cgdvc                           1/1     Running     0             68m
nai-agent-7d47dd574-xv5j9                                1/1     Running     0             68m
nai-api-7688c87f4f-g8fj5                                 1/1     Running     1 (39m ago)   68m
nai-api-db-migrate-fjyjk-4vtmt                           0/1     Completed   0             68m
nai-clickhouse-schema-job-1789606277-zwl7w               0/1     Completed   0             68m
nai-db-iep-1                                             1/1     Running     0             18h
nai-iep-model-controller-7fffc76bf4-8xdjf                1/1     Running     0             68m
nai-oauth2-proxy-6cd988fd49-wdzcn                        1/1     Running     0             68m
nai-operators-nai-clickhouse-operator-746b4bc55d-s8gs4   2/2     Running     0             16h
nai-otel-collector-collector-4qxr7                       1/1     Running     0             68m
nai-otel-collector-collector-7tr98                       1/1     Running     0             41m
nai-otel-collector-collector-b77xq                       1/1     Running     0             68m
nai-otel-collector-collector-bhdgr                       1/1     Running     0             68m
nai-otel-collector-collector-jbnrp                       1/1     Running     0             52m
nai-otel-collector-collector-nrms7                       1/1     Running     0             68m
nai-otel-collector-collector-s45jt                       1/1     Running     0             68m
nai-otel-collector-collector-t8gm4                       1/1     Running     0             68m
nai-otel-collector-collector-x25zc                       1/1     Running     0             68m
nai-otel-collector-collector-xjl52                       1/1     Running     0             68m
nai-otel-collector-targetallocator-778bb8969-mn6bp       1/1     Running     0             68m
nai-securityscan-manager-57fb94f7d6-545fg                1/1     Running     0             68m
nai-ui-75dbdbd6c6-qn5n6                                  1/1     Running     0             68m
nai-valkey-0                                             1/1     Running     0             16h
nai-valkey-sentinel-0                                    1/1     Running     0             18h

Install SSL Certificate and Gateway Elements (Optional)

In this section we will install SSL Certificate to access the NAI UI. This is required as the endpoint will only work with a ssl endpoint with a valid certificate.

NAI UI is accessible using the Envoy Ingress Gateway.

Optional and manual - using Public Certificate Authority (CA)

If an organization generates certificates using a different mechanism then obtain the certificate + key and create a kubernetes secret manually using the following command:

  1. Create the certificate from the files (generated using certbot or provided to you)

    kubectl -n nai-system create secret tls nai-cert \
--cert=path/to/nai.crt \
--key=path/to/nai.key

  2. Combine the certificates to get the certificate bundle

    cat server.crt intermediate.crt > tls-bundle.crt

  3. Create a kubernetes secret in the nai-system namespace to use during NAI install

      kubectl secret tls nai-cert \
  --cert=tls-bundle.crt \
  --key=server.key \
  -n nai-system

  4. Patch the Envoy gateway with the nai-cert certificate details

    kubectl patch gateway nai-ingress-gateway -n nai-system --type='json' -p='[{"op": "replace", "path": "/spec/listeners/1/tls/certificateRefs/0/name", "value": "nai-cert"}]'
Optional to automate - using Public Certificate Authority (CA) and Cert Manager

Using Cert Manager to manage the Public Certificate Authority (CA) for NAI SSL Certificate is also a possiblity.

At a high level (Cloudflare Example):

  1. Get a API key from DNS provider woth Edit Zone rights

  2. Create a Kubernetes Secret from the API key

    apiVersion: v1
kind: Secret
metadata:
  name: cloudflare-api-token-secret
  namespace: harbor
type: Opaque
stringData:
  api-token: _YOUR_CLOUDFLARE_API_TOKEN_HERE

    apiVersion: v1
kind: Secret
metadata:
  creationTimestamp: null
  name: route53-api-token-secret
  namespace: cert-manager
data:
  access-key-id: "_YOUR_AWS_ACCESS_KEY_ID"
  secret-access-key: "_YOUR_AWS_SECRET_KEY_ID"

  3. Create a ClusterIssuer with Cert Mangager/Let's Encrypt - Configure cert-manager to use DNS-01 challenge with Cloudflare for automatic certificate issuance.

    apiVersion: cert-manager.io/v1
kind: ClusterIssuer
metadata:
  name: letsencrypt-cloudflare
  namespace: cert-manager
spec:
  acme:
    email: _YOUR_DOMAIN_OWNER_EMAIL_ADDRESS
    server: https://acme-v02.api.letsencrypt.org/directory
    privateKeySecretRef:
      name: letsencrypt-cloudflare-account-key
    solvers:
    - dns01:
        cloudflare:
          apiTokenSecretRef:
            name: cloudflare-api-token-secret
            key: api-token

    apiVersion: cert-manager.io/v1
kind: ClusterIssuer
metadata:
  name: letsencrypt-cloudflare
spec:
  acme:
    email: _YOUR_DOMAIN_OWNER_EMAIL_ADDRESS
    server: https://acme-v02.api.letsencrypt.org/directory
    privateKeySecretRef:
      name: nai-letsencrypt-cluster
    solvers:
      - dns01:
          route53:
            region: us-east-1
            accessKeyIDSecretRef:
              name: route53-api-token-secret
              key: access-key-id
            secretAccessKeySecretRef:
              name: route53-api-token-secret
              key: secret-access-key
            hostedZoneID: _HOSTED_ZONE_ID

  4. Create the ingress resource certificate using the following command:

    cat << EOF | k apply -f -
apiVersion: cert-manager.io/v1
kind: Certificate
metadata:
  name: nai-cert
  namespace: nai-system
spec:
  issuerRef:
    name: letsencrypt-cloudflare
    kind: ClusterIssuer
  secretName: nai-cert
  commonName: nai.domain.com
  dnsNames:
  - nai.domain.com
EOF

  5. Patch the Envoy gateway with the nai-cert certificate details

    kubectl patch gateway nai-ingress-gateway -n nai-system --type='json' -p='[{"op": "replace", "path": "/spec/listeners/1/tls/certificateRefs/0/name", "value": "nai-cert"}]'

The following steps show how cert-manager can be used to generate a self signed certificate using the default selfsigned-issuer present in the cluster for the purposes of the lab.

  1. Get the NAI UI ingress gateway host using the following command:

    NAI_UI_ENDPOINT=$(kubectl get svc -n envoy-gateway-system -l "gateway.envoyproxy.io/owning-gateway-name=nai-ingress-gateway,gateway.envoyproxy.io/owning-gateway-namespace=nai-system" -o jsonpath='{.items[0].status.loadBalancer.ingress[0].ip}')

  2. Get the value of NAI_UI_ENDPOINT environment variable

    echo $NAI_UI_ENDPOINT

    10.x.x.216

  3. We will use the command output e.g: 10.x.x.216 as the IP address for NAI as reserved in this section

  4. Construct the FQDN of NAI UI using nip.io and we will use this FQDN as the certificate's Common Name (CN).

    nai.${NAI_UI_ENDPOINT}.nip.io

    nai.10.x.x.216.nip.io

  5. Create the ingress resource certificate using the following command:

    cat << EOF | k apply -f -
apiVersion: cert-manager.io/v1
kind: Certificate
metadata:
  name: nai-cert
  namespace: nai-system
spec:
  issuerRef:
    name: selfsigned-issuer
    kind: ClusterIssuer
  secretName: nai-cert
  commonName: nai.${NAI_UI_ENDPOINT}.nip.io
  dnsNames:
  - nai.${NAI_UI_ENDPOINT}.nip.io
  ipAddresses:
  - ${NAI_UI_ENDPOINT}
EOF

  6. Patch the Envoy gateway with the nai-cert certificate details

    kubectl patch gateway nai-ingress-gateway -n nai-system --type='json' -p='[{"op": "replace", "path": "/spec/listeners/1/tls/certificateRefs/0/name", "value": "nai-cert"}]'

  7. Create EnvoyProxy

    k apply -f -<<EOF
apiVersion: gateway.envoyproxy.io/v1alpha1
kind: EnvoyProxy
metadata:
  name: envoy-service-config
  namespace: nai-system
spec:
  provider:
    type: Kubernetes
    kubernetes:
      envoyService:
        type: LoadBalancer
EOF

  8. Patch the nai-ingress-gateway resource with the new EnvoyProxy details

    kubectl patch gateway nai-ingress-gateway -n nai-system --type=merge \
-p '{
    "spec": {
        "infrastructure": {
            "parametersRef": {
                "group": "gateway.envoyproxy.io",
                "kind": "EnvoyProxy",
                "name": "envoy-service-config"
            }
        }
    }
}'

Accessing the UI

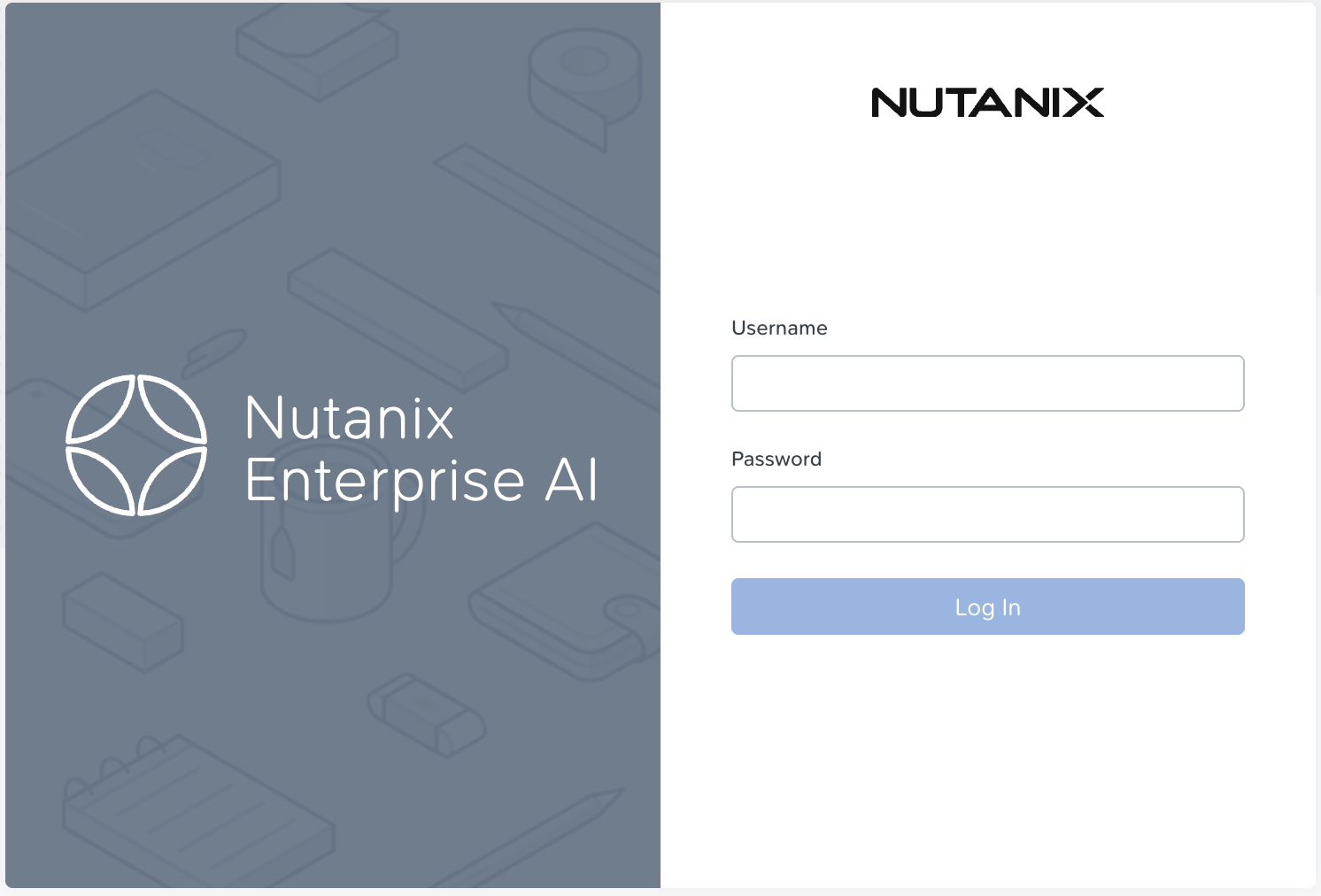

  1. In a browser, open the following URL to connect to the NAI UI

    https://nai.10.x.x.216.nip.io

  2. Use the ${NAI_USER} and ${NAI_TEMP_PASS} values set in ${ENVIRONMENT}-values.yaml files during helm installation of NAI v.2.4.0

  3. Change the password for the admin user

  4. Login using admin user and password.

Download Model

We will download and user llama3 8B model which we sized for in the previous section.

We will use the model already downloaded to /model_share from our jumphost in this section.

  1. In the NAI GUI, go to Models
  2. Click on Import Model from Hugging Face
  3. Select the Manual Import method

  4. Choose the meta-llama/Meta-Llama-3.1-8B-Instruct model

  5. Provide the Model Instance Name as Meta-Llama-3.1-8B-Instruct and click Import

  6. Choose the following:

    • Location - File Share
    • File Server Address - labFS.ntnxlab.local (point to your File server FQDN)
    • NFS Export Path- /model_share
    • Directory Parth for the Model - Meta-Llama-3.1-8B-Instruct (this is the folder created by the model download script)

  7. Go to VSC Terminal to monitor the download

    Get jobs in nai-admin namespace
    kubens nai-admin

kubectl get jobs
    Validate creation of pods and PVC
    kubectl get po,pvc
    Verify download of model using pod logs
    kubectl logs -f _pod_associated_with_job

    Get jobs in nai-admin namespace
    kubens nai-admin

✔ Active namespace is "nai-admin"

kubectl get jobs

NAME                                       COMPLETIONS   DURATION   AGE
nai-c0d6ca61-1629-43d2-b57a-9f-model-job   0/1           4m56s      4m56
    Validate creation of pods and PVC
    kubectl get po,pvc

NAME                                             READY   STATUS    RESTARTS   AGE
nai-c0d6ca61-1629-43d2-b57a-9f-model-job-9nmff   1/1     Running   0          4m49s

NAME                                       STATUS   VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS      VOLUMEATTRIBUTESCLASS   AGE
nai-c0d6ca61-1629-43d2-b57a-9f-pvc-claim   Bound    pvc-a63d27a4-2541-4293-b680-514b8b890fe0   28Gi       RWX            nai-nfs-storage   <unset>                 2d
    Verify download of model using pod logs
    kubectl logs -f nai-c0d6ca61-1629-43d2-b57a-9f-model-job-9nmff

[Entrypoint] Downloading Model from Hugging Face
NAI Monitor: Downloaded directory size: 0.00MB
The new directory is created! - /data/model-files
NAI Monitor: Downloaded directory size: 1133.88MB
NAI Monitor: Downloaded directory size: 2192.08MB
NAI Monitor: Downloaded directory size: 3222.33MB
NAI Monitor: Downloaded directory size: 4268.83MB
NAI Monitor: Downloaded directory size: 5284.63MB
NAI Monitor: Downloaded directory size: 6246.70MB
NAI Monitor: Downloaded directory size: 7307.07MB
NAI Monitor: Downloaded directory size: 8385.94MB
NAI Monitor: Downloaded directory size: 9427.94MB
NAI Monitor: Downloaded directory size: 10488.94MB
NAI Monitor: Downloaded directory size: 11536.19MB
NAI Monitor: Downloaded directory size: 12567.45MB
NAI Monitor: Downloaded directory size: 13689.43MB
NAI Monitor: Downloaded directory size: 14733.81MB
NAI Monitor: Downloaded directory size: 15631.18MB

  8. Optional - verify the events in the namespace for the pvc creation

    k get events | awk '{print $1, $3}'

    $ k get events | awk '{print $1, $3}'

3m43s Scheduled
3m43s SuccessfulAttachVolume
3m36s Pulling
3m29s Pulled
3m29s Created
3m29s Started
3m43s SuccessfulCreate
90s   Completed
3m53s Provisioning
3m53s ExternalProvisioning
3m45s ProvisioningSucceeded
3m53s PvcCreateSuccessful
3m48s PvcNotBound
3m43s ModelProcessorJobActive
90s   ModelProcessorJobComplete

The model is downloaded to the Nutanix Files pvc volume.

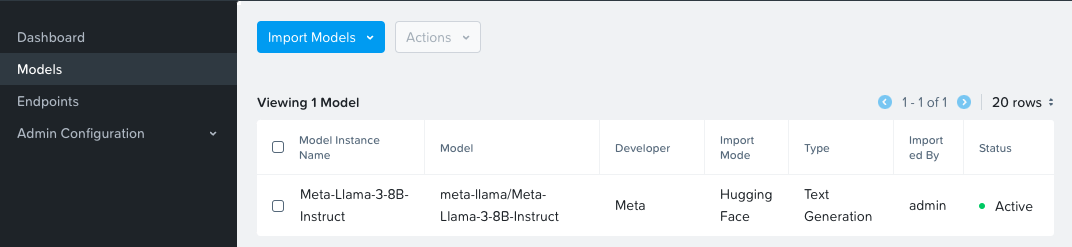

After a successful model import, you will see it in Active status in the NAI UI under Models menu

Create and Test Inference Endpoint

In this section we will create an inference endpoint using the downloaded model.

  1. Navigate to Inference Endpoints menu and click on Create Endpoint button

  2. Fill the following details:

    • Endpoint Name: llama-8b
    • Model Instance Name: Meta-LLaMA-8B-Instruct
    • Use GPUs for running the models : Checked
    • No of GPUs (per instance):
    • GPU Card: NVIDIA-L40S (or other available GPU)
    • No of Instances: 1
    • API Keys: Create a new API key or use an existing one

  3. Click on Create

  4. Monitor the nai-admin namespace to check if the services are coming up

    kubens nai-admin
kubectl get po,deploy

    kubens nai-admin
get po,deploy
NAME                                                     READY   STATUS        RESTARTS   AGE
pod/llama8b-predictor-00001-deployment-9ffd786db-6wkzt   2/2     Running       0          71m

NAME                                                 READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/llama8b-predictor-00001-deployment   1/1     1            0           3d17h

  5. Check the events in the nai-admin namespace for resource usage to make sure all

    kubectl get events -n nai-admin --sort-by='.lastTimestamp' | awk '{print $1, $3, $5}'

    $ kubectl get events -n nai-admin --sort-by='.lastTimestamp' | awk '{print $1, $3, $5}'

110s FinalizerUpdate Updated
110s FinalizerUpdate Updated
110s RevisionReady Revision
110s ConfigurationReady Configuration
110s LatestReadyUpdate LatestReadyRevisionName
110s Created Created
110s Created Created
110s Created Created
110s InferenceServiceReady InferenceService
110s Created Created

  6. Once the services are running, check the status of the inference service

    kubectl get isvc

    kubectl get isvc

NAME      URL                                          READY   PREV   LATEST   PREVROLLEDOUTREVISION   LATESTREADYREVISION       AGE
llama8b   http://llama8b.nai-admin.svc.cluster.local   True           100                              llama8b-predictor-00001   3d17h

Troubleshooting Endpoint ISVC

TGI Imange and Self-signed Certificates

Only follow this procedure if this isvc is not starting up.

KNative Serving Image Tag Checking

From testing, we have identified that KServe module is making sure that there are no container image tag discrepencies, by pulling image using SHA digest. This is done to avoid pulling images that are updated without updating the tag.

We have avoided this behavior by patching the config-deployment config map in the knative-serving namespace to skip image tag checking. Check this Prepare for NAI Deployment sectionfor more details.

kubectl patch configmap  config-deployment -n knative-serving --type merge -p '{"data":{"registries-skipping-tag-resolving":"${REGISTRY}"}'

If this procedure was not followed, then the isvc will not start up.

  1. If the isvc is not coming up, then explore the events in nai-admin namespace.

    kubens nai-admin
kubectl get isvc
kubectl get events  --sort-by='.lastTimestamp'

    $ kubectl get isvc

NAME      URL                                          READY   PREV   LATEST   PREVROLLEDOUTREVISION   LATESTREADYREVISION       AGE
llama8b   http://llama8b.nai-admin.svc.cluster.local   False

$ kubectl get events --sort-by='.lastTimestamp'

Warning   InternalError         revision/llama8b-predictor-00001   Unable to fetch image "harbor.10.x.x.134.nip.io/nkp/nutanix/nai-tgi:2.3.1-825f39d": failed to resolve image to digest:
Get "https://harbor.10.x.x.134.nip.io/v2/": tls: failed to verify certificate: x509: certificate signed by unknown authority

    The temporary workaround is to use the TGI images SHA signature from the container registry.

    This site will be updated with resolutions for the above issues in the future.

  2. Note the above TGI image SHA digest from the container registry.

    docker pull ${REGISTRY}/nutanix/nai-tgi:${NAI_TGI_RUNTIME_VERSION}

    docker pull harbor.10.x.x.134.nip.io/nkp/nutanix/nai-tgi:2.3.1-825f39d

2.3.1-825f39d: Pulling from nkp/nutanix/nai-tgi
Digest: sha256:2df9fab2cf86ab54c2e42959f23e6cfc5f2822a014d7105369aa6ddd0de33006
Status: Image is up to date for harbor.10.x.x.134.nip.io/nkp/nutanix/nai-tgi:2.3.1-825f39d
harbor.10.x.x.134.nip.io/nkp/nutanix/nai-tgi:2.3.1-825f39d

  3. The SHA digest will look like the following:

    TGI image SHA digest will be different for different environments
    sha256:2df9fab2cf86ab54c2e42959f23e6cfc5f2822a014d7105369aa6ddd0de33006

  4. Create a copy of the isvc manifest

    kubectl get isvc llama8b -n nai-admin -o yaml > llama8b.yaml

  5. Edit the isvc

    kubectl edit isvc llama8b -n nai-admin

  6. Search and replace the image tag with the SHA digest from the TGI image.

    <snip>

env:
- name: STORAGE_URI
  value: pvc://nai-c34d8d58-d6f8-4cb4-94e4-28-pvc-claim/model-files
  image: harbor.10.x.x.134.nip.io/nkp/nutanix/nai-tgi:2.3.1-825f39d

<snip>
    7. After replacing the image's SHA digest, the image value should look as follows:

    <snip>

env:
- name: STORAGE_URI
  value: pvc://nai-c34d8d58-d6f8-4cb4-94e4-28-pvc-claim/model-files
  image: harbor.10.x.x.134.nip.io/nkp/nutanix/nai-tgi@sha256:2df9fab2cf86ab54c2e42959f23e6cfc5f2822a014d7105369aa6ddd0de33006

<snip>

  7. Save the isvc configuration by writing the changes to the file and exiting the vi editor using :wq! key combination.

  8. Verify that the isvc is running

    kubens nai-admin
kubectl get isvc

    $ kubectl get isvc

NAME      URL                                          READY   PREV   LATEST   PREVROLLEDOUTREVISION   LATESTREADYREVISION       AGE
llama8b   http://llama8b.nai-admin.svc.cluster.local   True           100                              llama8b-predictor-00001   3d17h

This should resolve the issue the issue with the TGI image.

Report Other Issues

If you are facing any other issues, please report them here in the NAI LLM GitHub Repo Issues page.
