Deploying Unified Endpoints

stateDiagram-v2
    direction LR

    state FallbackUnifiedEndpointLab {
        [*] --> CreateAPIClientKeys
        CreateAPIClientKeys --> DownloadModel
        DownloadModel --> CreateLocalEndpoints
        CreateLocalEndpoints --> CreateUnifiedEndpoint
        CreateUnifiedEndpoint --> TestInitialQuery
        TestInitialQuery --> HibernatePrimaryEndpoint
        HibernatePrimaryEndpoint --> TestFallbackQuery
        TestFallbackQuery --> [*]
    }

    [*] --> PreRequisites
    PreRequisites --> SizingNKP_NAI
    SizingNKP_NAI --> FallbackUnifiedEndpointLab
    FallbackUnifiedEndpointLab --> [*]

Getting Started

To begin, log in to your Nutanix Enterprise AI UI. Navigate to the Endpoints section on the left-hand menu, and verify that your underlying cluster health is showing as optimal in the Infrastructure Summary.

At a high level, we will do the following:

Download model
Create two endpoints
Configure Unified Endpoint with the two endpoints as backend

Pre-requisites and Sizing

So far we have been working with initial NKP cluster that was created in this section

We will need more resources for running the Unified Endpoint

Current NKP Cluster:

Role	No. of Nodes (VM)	vCPU per Node	Memory per Node	Storage per Node	Total vCPU	Total Memory
Control plane	3	4	16 GB	150 GB	12	48 GB
Worker	4	12	32 GB	150 GB	36	128 GB
GPU	1	20	40 GB	300 GB	20	40 GB
Totals					68	216 GB

Unified Endpoint Clusters:

Do you have GPU and/or CPUs available?

We can choose to create Unified Endpoint based on GPU or CPU depending on what is available. CPU is going to be slow. However, it is a worthwhile fallback as the CPU inferencing improvements are always evolving.

Here is sizing for GPU or CPU based Endpoints for gemma-2b-it model inferencing setup. Choose your preference or do a combination of GPU and CPU (GPU endpoint falling back to CPU endpoint)

GPU Based EndpointsCPU Based Endpoints

Role	No. of Nodes (VM)	vCPU per Node	Memory per Node	Storage per Node	Total vCPU	Total Memory
Control plane	3	4	16 GB	150 GB	12	48 GB
Worker	4	12	32 GB	150 GB	36	128 GB
GPU	2	20	40 GB	300 GB	40	80 GB
Totals	9				88	256 GB

Role	No. of Nodes (VM)	vCPU per Node	Memory per Node	Storage per Node	Total vCPU	Total Memory
Control plane	3	4	16 GB	150 GB	12	48 GB
Worker	6	24	32 GB	150 GB	36	144 GB
Totals	9				48	192 GB

Increase Resources on NKP Cluster

We can use kubectl or NKP GUI to increase the NKP node resources.

Change Resources using kubectl:

Run the following command to check K8S status of the NKP cluster
Command Sample command
export KUBECONFIG=${NKP_CLUSTER_NAME}.conf
export KUBECONFIG=nkpmgt.conf

Get Cluster details

Command Command output

kubectl get clusters -A

$ kubectl get clusters -A
#
NAMESPACE   NAME    CLUSTERCLASS          PHASE         AGE     VERSION
default     nkpmgt  nkp-nutanix-v2.17.1   Provisioned   2d23h   v1.34.3

Edit the MachineDeployment details
Command
kubectl edit cluster nkpmgt

Change the following parameters

Increase CPU and RAM Increase Node Count

machineDeployments:
- class: default-worker
  name: md-0
  # ... (metadata/annotations are up here) ...
  variables:
    overrides:
    - name: workerConfig
      value:
        # ...
        nutanix:
          machineDetails:
            # CHANGE THESE VALUES:
            memorySize: 32Gi         # e.g., change to 32Gi from current
            vcpuSockets: 24          # e.g., change to 24 from current
            vcpusPerSocket: 1

machineDeployments:
- class: default-worker
  metadata:
    annotations:
      cluster.x-k8s.io/cluster-api-autoscaler-node-group-max-size: "6" # e.g., change to 6 from current
      cluster.x-k8s.io/cluster-api-autoscaler-node-group-min-size: "6" # e.g., change to 6 from current

Change Resources using GUI:

In NKP Dashboard
Go to Clusters > Select your cluster (In this lab we have used the Kommander Host Management nkpmgt cluster)
Go to Nodepools
Choose the GPU or CPU based workload Nodepools and increase resrouces (Nodes, CPU, and RAM)

API Client Keys

Create API keys to use with our Unified Endpoints.

In the NAI GUI, go to API Client Keys
Click on Create a New Key
- Key Name: gemma-2-2b-it-key
Download or copy the contents of the key for use during testing.

Download Model

We will download and user llama3 8B model which we sized for in the previous section.

In the NAI GUI, go to Models
Click on Import Model from Hugging Face
Choose the google/gemma-2-2b-it model
Input your Hugging Face token that was created in the previous section and click Import
Provide the Model Instance Name as google/gemma-2-2b-it and click Import

Go to VSC Terminal to monitor the download

Command Command output

Get jobs in nai-admin namespace

kubens nai-admin

kubectl get jobs

Validate creation of pods and PVC

kubectl get po,pvc

Verify download of model using pod logs

kubectl logs -f _pod_associated_with_job

Get jobs in nai-admin namespace

kubens nai-admin

✔ Active namespace is "nai-admin"

kubectl get jobs

NAME                                       COMPLETIONS   DURATION   AGE
nai-c0d6ca61-1629-43d2-b57a-9f-model-job   0/1           4m56s      4m56

Validate creation of pods and PVC

kubectl get po,pvc

NAME                                             READY   STATUS    RESTARTS   AGE
nai-c0d6ca61-1629-43d2-b57a-9f-model-job-9nmff   1/1     Running   0          4m49s

NAME                                       STATUS   VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS      VOLUMEATTRIBUTESCLASS   AGE
nai-c0d6ca61-1629-43d2-b57a-9f-pvc-claim   Bound    pvc-a63d27a4-2541-4293-b680-514b8b890fe0   28Gi       RWX            nai-nfs-storage   <unset>                 2d

Verify download of model using pod logs

kubectl logs -f nai-c0d6ca61-1629-43d2-b57a-9f-model-job-9nmff

/venv/lib/python3.9/site-packages/huggingface_hub/file_download.py:983: UserWarning: Not enough free disk space to download the file. The expected file size is: 0.05 MB. The target location /data/model-files only has 0.00 MB free disk space.
warnings.warn(
tokenizer_config.json: 100%|██████████| 51.0k/51.0k [00:00<00:00, 3.26MB/s]
tokenizer.json: 100%|██████████| 9.09M/9.09M [00:00<00:00, 35.0MB/s]<00:30, 150MB/s]
model-00004-of-00004.safetensors: 100%|██████████| 1.17G/1.17G [00:12<00:00, 94.1MB/s]
model-00001-of-00004.safetensors: 100%|██████████| 4.98G/4.98G [04:23<00:00, 18.9MB/s]
model-00003-of-00004.safetensors: 100%|██████████| 4.92G/4.92G [04:33<00:00, 18.0MB/s]
model-00002-of-00004.safetensors: 100%|██████████| 5.00G/5.00G [04:47<00:00, 17.4MB/s]
Fetching 16 files: 100%|██████████| 16/16 [05:42<00:00, 21.43s/it]:33<00:52, 9.33MB/s]
## Successfully downloaded model_files|██████████| 5.00G/5.00G [04:47<00:00, 110MB/s]

Deleting directory : /data/hf_cache

Optional - verify the events in the namespace for the pvc creation

Command Command output

k get events | awk '{print $1, $3}'

$ k get events | awk '{print $1, $3}'

3m43s Scheduled
3m43s SuccessfulAttachVolume
3m36s Pulling
3m29s Pulled
3m29s Created
3m29s Started
3m43s SuccessfulCreate
90s   Completed
3m53s Provisioning
3m53s ExternalProvisioning
3m45s ProvisioningSucceeded
3m53s PvcCreateSuccessful
3m48s PvcNotBound
3m43s ModelProcessorJobActive
90s   ModelProcessorJobComplete

Go to NAI UI > Models > Model Access Control
Choose Hugging Face Model Hub and click on Modify Allowed List
Select google/gemma-2-2b-it and click on Save.

We are set with the model and permissions required to create a model.

Create Inference Endpoints

In this section we will create an inference endpoint using the downloaded model.

Note

Both GPU and CPU access are documented here. Choose the procedure available to you.

Info

NAI from v2.3 can host a model up to 7 billion parameters on CPU only Nutanix nodes

Navigate to Inference Endpoints menu and click on Create Endpoint button
Fill the following details based on GPU or CPU availability:
CPU AccessGPU Access
- Endpoint Name: gemma-2-2b-it-ep-1
- Model Instance Name: Gemma 2B IT
- Purpose: Real Time
- Model Instance Name: select gemma-2-2b-it
- Acceleration Type: CPU
- Endpoint Access - Api Client Keys - gemma-2-2b-it-key
- Inference Engine - vLLM
- No of Instances: 1
- vCPUs (Per Instance) - leave default at 16
- Memory (Per Instance) - leave default at 23
- Endpoint Name: gemma-2-2b-it-ep-1
- Model Instance Name: Gemma 2B IT
- Use GPUs for running the models : Checked
- No of GPUs (per instance):
- GPU Card: NVIDIA-L40S (or other available GPU)
- Endpoint Access - Api Client Keys - gemma-2-2b-it-key
- Inference Engine: - vLLM
- No of Instances: 1
Confirm the setting and Click on Create

Monitor the nai-admin namespace to check if the services are coming up

Command Command output

kubens nai-admin
kubectl get po,deploy

kubens nai-admin
get po,deploy
NAME                                                     READY   STATUS        RESTARTS   AGE
pod/llama8b-predictor-00001-deployment-9ffd786db-6wkzt   2/2     Running       0          71m

NAME                                                 READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/llama8b-predictor-00001-deployment   1/1     1            0           3d17h

Check the events in the nai-admin namespace for resource usage to make sure there are no errors

Command Command output

kubectl get events -n nai-admin --sort-by='.lastTimestamp' | awk '{print $1, $3, $5}'

$ kubectl get events -n nai-admin --sort-by='.lastTimestamp' | awk '{print $1, $3, $5}'

110s FinalizerUpdate Updated
110s FinalizerUpdate Updated
110s RevisionReady Revision
110s ConfigurationReady Configuration
110s LatestReadyUpdate LatestReadyRevisionName
110s Created Created
110s Created Created
110s Created Created
110s InferenceServiceReady InferenceService
110s Created Created

Once the services are running, check the status of the inference service

Command Command output

kubectl get isvc

kubectl get isvc

NAME      URL                                          READY   PREV   LATEST   PREVROLLEDOUTREVISION   LATESTREADYREVISION       AGE
llama8b   http://llama8b.nai-admin.svc.cluster.local   True           100                              llama8b-predictor-00001   3d17h

Create the second endpoint with the following details based on GPU or CPU availability:
CPU AccessGPU Access
- Endpoint Name: gemma-2-2b-it-ep-2
- Model Instance Name: Gemma 2B IT
- Purpose: Real Time
- Model Instance Name: select gemma-2-2b-it
- Acceleration Type: CPU
- Endpoint Access - Api Client Keys - gemma-2-2b-it-key
- Inference Engine - vLLM
- No of Instances: 1
- vCPUs (Per Instance) - leave default at 16
- Memory (Per Instance) - leave default at 23
- Endpoint Name: gemma-2-2b-it-ep-2
- Model Instance Name: Gemma 2B IT
- Use GPUs for running the models : Checked
- No of GPUs (per instance):
- GPU Card: NVIDIA-L40S (or other available GPU)
- Endpoint Access - Api Client Keys - gemma-2-2b-it-key
- Inference Engine - vLLM
- No of Instances: 1

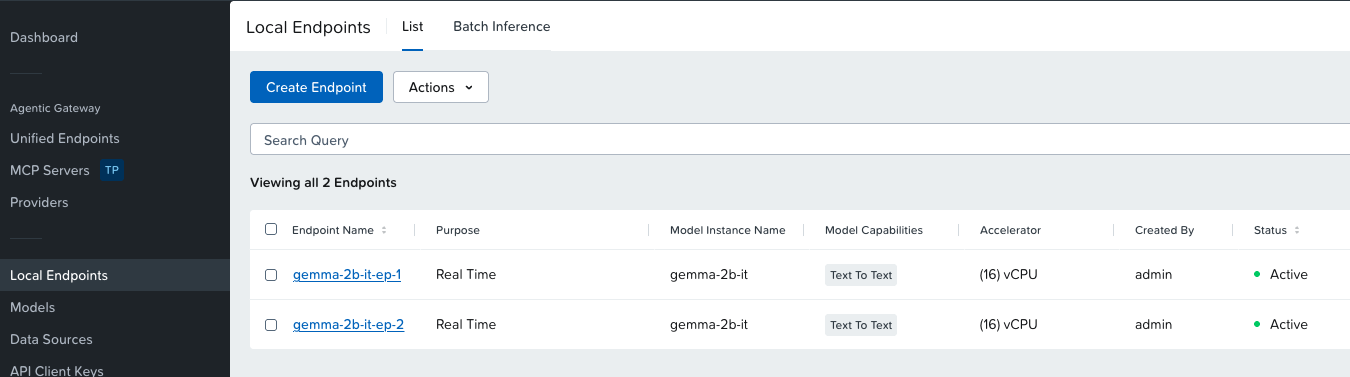

Confirm availability of both endpoints either in the GUI or using kubectl commands

Command Command output

kubens nai-admin
kubectl get isvc

$ kubectl get isvc
#
NAME               URL                                             READY   PREV   LATEST   PREVROLLEDOUTREVISION   LATESTREADYREVISION   AGE
gemma-2b-it-ep-1   http://gemma-2b-it-ep-1-nai-admin.example.com   True                                                                  21m
gemma-2b-it-ep-2   http://gemma-2b-it-ep-2-nai-admin.example.com   True

Now we are have everything to create a unified endpoint.

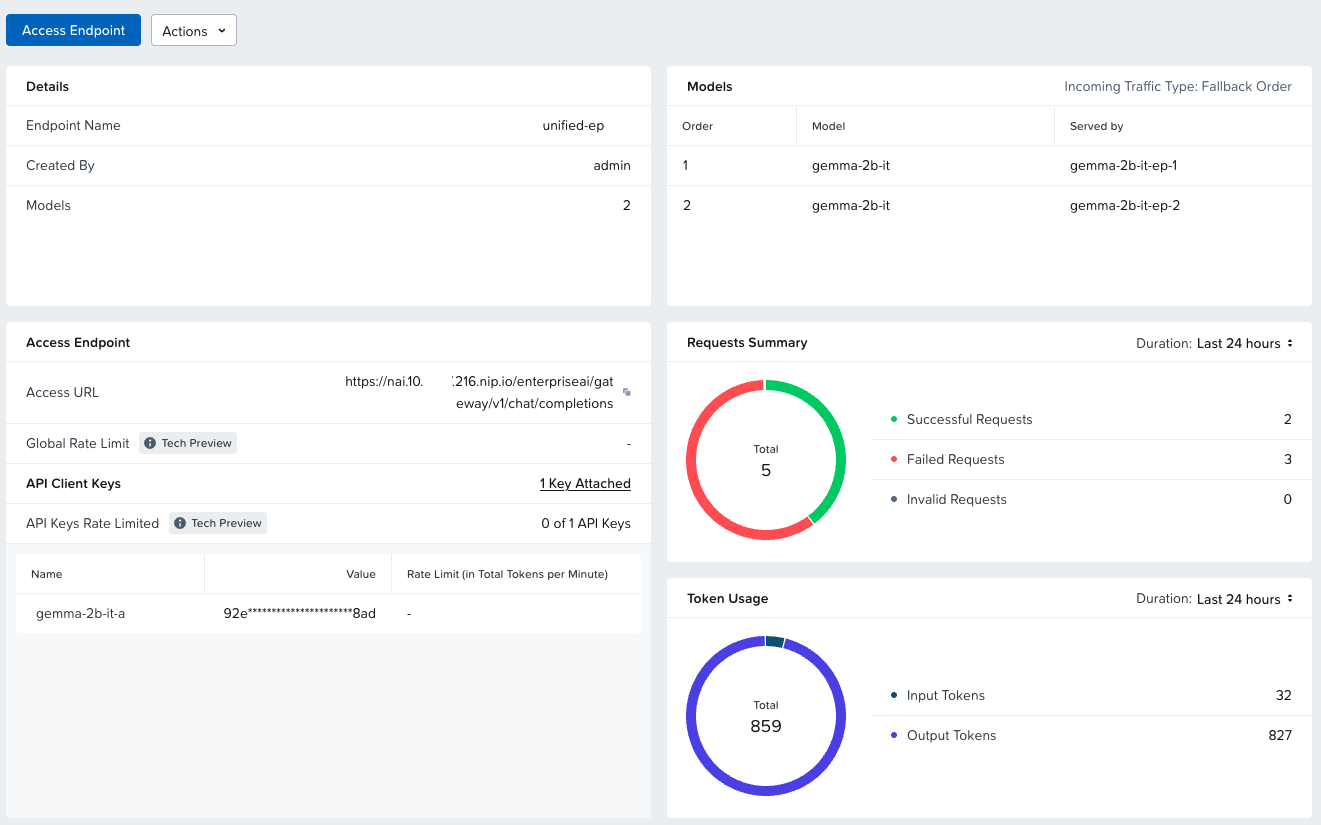

Creating Your First Fallback Unified Endpoint

Navigate to Unified Endpoints menu and click on Create Unified Endpoint button
Fill the following details:
Endpoint Name: unified-ep
API Spec: Chat
Click on Add Model
Choose Local
Add the following endpoints
- gemma-2-2b-it-ep-1
- gemma-2-2b-it-ep-2
- Click Next and select Fallback Order
- Order 1: gemma-2-2b-it-ep-1
- Order 2: gemma-2-2b-it-ep-2
Choose the following API Key
- Key Name: gemma-2-2b-it-key
Confirm the configuration and
Click Create

Note

The name of the unified endpoint unified-ep will be become the model name where we will be sending inferencing requests.

Test Querying Inference Service API

Prepare the API key that was created in the previous section

Template commandSample command

export API_KEY=_your_endpoint_api_key

export API_KEY=5840a693-254d-41ef-a2d3-1xxxxxxxxxx

Construct your curl command using the API key obtained above, and run it on the terminal

CommandCommand output

Note the model name

curl -k -X 'POST' 'https://nai.10.x.x.216.nip.io/enterpriseai/gateway/v1/chat/completions' \
 -H "Authorization: Bearer $API_KEY" \
 -H 'accept: application/json' \
 -H 'Content-Type: application/json' \
 -d '{
     "model": "unified-ep-cpu",
     "messages": [
         {
         "role": "user",
         "content": "What is the capital of France?"
         }
     ],
     "stream": false
 }'

{
    "id": "9e55abd1-2c91-4dfc-bd04-5db78f65c8b2",
    "object": "chat.completion",
    "created": 1728966493,
    "model": "unified-ep-cpu",
    "choices": [
        {
            "index": 0,
            "message": {
                "role": "assistant",
                "content": "The capital of France is Paris. It is a historic city on the Seine River in the north-central part of the country. Paris is also the political, cultural, and economic center of France."
            },
            "finish_reason": "stop"
        }
    ],
    "usage": {
        "prompt_tokens": 17,
        "completion_tokens": 41,
        "total_tokens": 58
    },
    "system_fingerprint": ""
}

We have a successful unified endpoint deployment.

Go to NAI UI > Unified Endpoints
Select unified-ep-cpu
Check the Overview and Metrics

Availability Testing

In this section we will hibernate one of the local endpoints we created to simulate non-availability of an endpoint and check if the inferencing works.

In NAI UI, go to Local Endpoints
Select gemma-2b-it-ep-1 endpoint
Click on Actions drop-down menu and choose Hibernate
Type hibernate is confirmation window and click on Hibernate
Confirm hibernation

Go to command line and test a query

Note

If you are using CPU based endpoints, the output time will vary based on your CPU and Memory availability we set in the Sizing section.

Command Command output

curl -k -X 'POST' 'https://nai.10.122.7.216.nip.io/enterpriseai/gateway/v1/chat/completions'
 -H "Authorization: Bearer $API_KEY"
 -H 'accept: application/json'  -H 'Content-Type: application/json'
 -d '{
      "model": "unified-ep-cpu",
      "messages": [
        {
          "role": "user",
          "content": "Explain Deep Neural Networks in simple terms"
        }
      ],
      "stream": false
}'

{
"id": "chatcmpl-a0d6d439ad6245fd",
"object": "chat.completion",
"created": 1780482080,
"model": "unified-ep-cpu",
"choices": [
    {
    "index": 0,
    "message": {
        "role": "assistant",
        "content": "Imagine you're teaching a dog a new trick. You don't tell them the whole \"How\" at once, right? You show them, give them feedback, and they learn over time. \n\nDeep neural networks are like that, yet for computers.  \n\n**Here's the simple breakdown:**\n\n* **It's a network of interconnected neurons:** Just like our brain has neurons, deep neural networks are made of  \"artificial neurons\" connected in layers.\n* **Data is the training phase:** To learn, these neural networks are fed tons of data (like pictures of cats or images showing numbers) and their task is to figure out patterns and relationships within the data. Each connection between neurons has a \"weight\" that gets adjusted as the network learns.\n* **Layers work together:**  Each layer in the network looks at the data in different ways.  The first layer analyzes the image, the second looks for shapes within the image, and the ultimate layer might identify what is being shown: a cat in the picture.\n\n**So, how do they \"learn?\"**\n\n* **Feedforward:** The network takes the data, does a search, compares the search to  known answers, and adjusts the weights slightly. \n* **Backpropagation:** This process where the network learns from its mistakes, correcting its searches based on how new data compares to its predictions. Like an expert dog trainer giving feedback after each mistake, guiding its learning.\n\n**What are they good at?**\n\n* **Image recognition:** Identifying objects in pictures (dogs, cats, sunsets, etc.)\n* **Speech recognition:** Understanding what we say and translating it into text. \n* **Predicting outcomes:** Forecasting stock prices, recommending movies, analyzing medical data.\n\n**Key takeaways:**\n\n* Deep neural networks are complex systems, but their inspiration comes from Our brain's complex learning process.\n* They learn from large datasets and adjust can quickly. \n* They're excellent at complex pattern recognition that computers struggle with.\n\n\n**Remember:** It's a simplified explanation. The actual implementation is much more technical, but this gives you a basic understanding. \n"
    },
    "finish_reason": "stop",
    "content_filter_results": {
        "hate": {
        "filtered": false
        },
        "self_harm": {
        "filtered": false
        },
        "sexual": {
        "filtered": false
        },
        "violence": {
        "filtered": false
        },
        "jailbreak": {
        "filtered": false,
        "detected": false
        },
        "profanity": {
        "filtered": false,
        "detected": false
        }
    }
    }
],
"usage": {
    "prompt_tokens": 16,
    "completion_tokens": 448,
    "total_tokens": 464,
    "prompt_tokens_details": null,
    "completion_tokens_details": null
},
"system_fingerprint": ""
}
